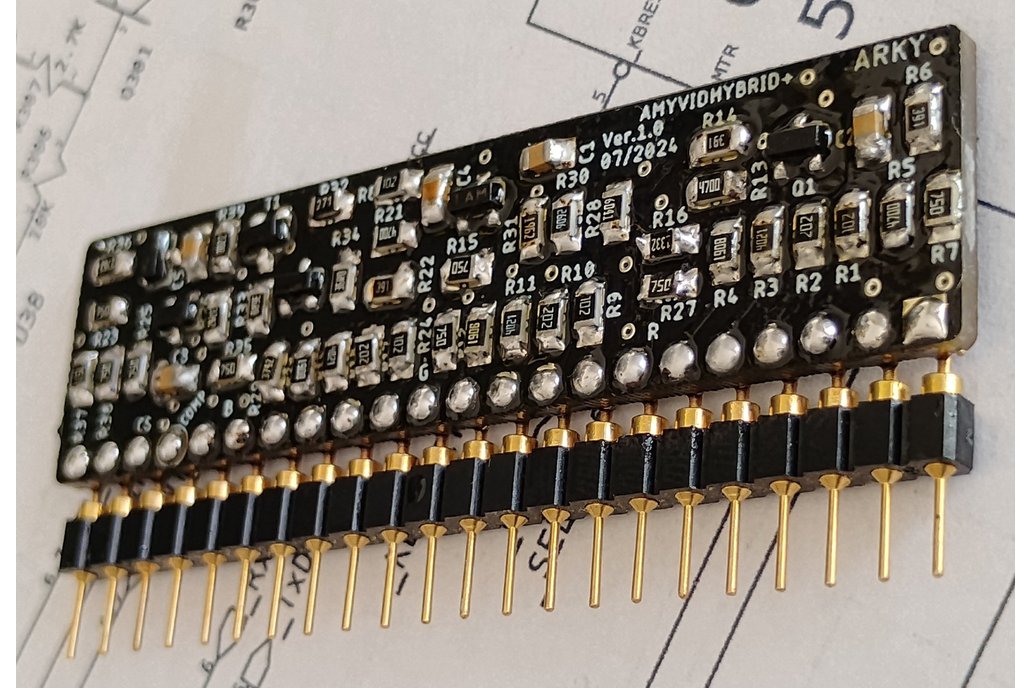

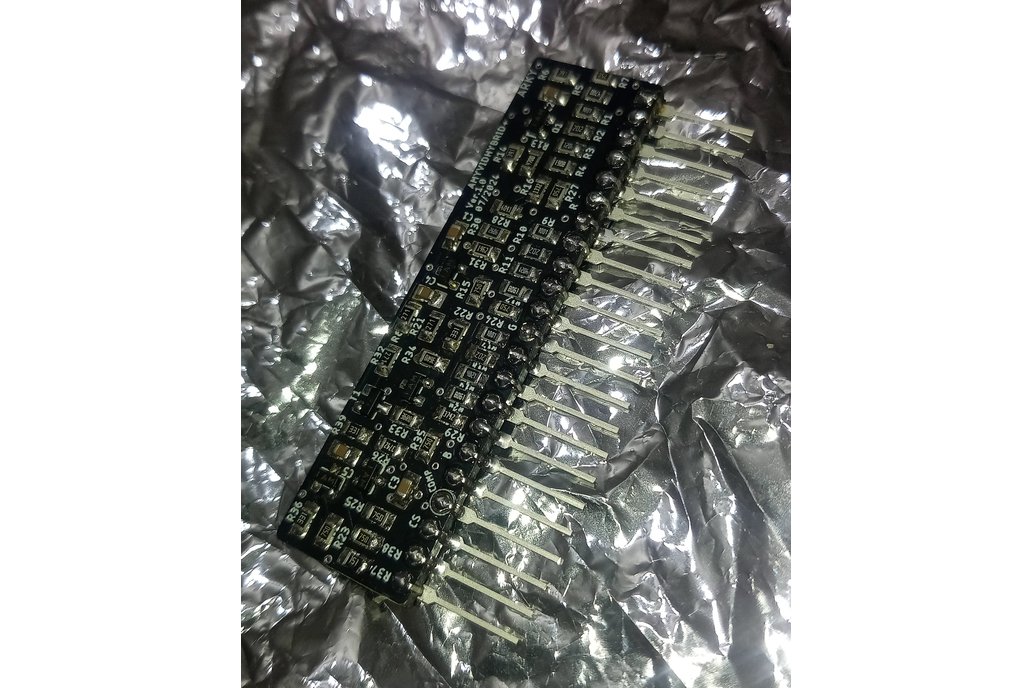

AMYVIDHYBRID+: Modern Recreation of the Commodore 390229-03 Video Hybrid

The AMYVIDHYBRID+ is an open hardware project that brings new life to the legendary Commodore 390229-03, also known as the Video Hybrid or VIDIOT. This hybrid integrated circuit was essential for video output in classic Commodore Amiga computers, converting their digital video signals into analog outputs for monitors and TVs. Now, with modern components and design principles, this project ensures that Amiga enthusiasts can keep their beloved machines running for years to come.

What Was the Video Hybrid?

The Commodore 390229-03 Video Hybrid was the "translator" between the Amiga's digital world and analog displays. It transformed the Amiga’s 4-bit per color digital video signal into standard analog RGB signals, along with composite video and synchronization signals. Without this critical component, the vibrant graphics and smooth video output that made the Amiga famous would not have been possible.

This hybrid IC was used in several iconic Amiga models:

• A500, A500+, A1000, A2000, and A3000: These systems relied on the Video Hybrid for their stunning visuals.
• A3000 (Dual Hybrids): The A3000 used two Video Hybrids—one for 15kHz output (standard resolution) and another for 31kHz output (high resolution).
• GBA1000 A1000 Clone: This clone also employed two hybrids to replicate the original A1000’s functionality.
• Add-On Cards: Accessories like the Commodore A2320 Deinterlacer depended on the Video Hybrid.

How Did the Video Hybrid Work?

The Commodore 390229-03 handled five key tasks:

• RGB Channels (Red, Green, Blue): Each color channel converted the 4-bit digital signal into an analog voltage using a binary-weighted resistor network. The signal was then amplified by an NPN transistor and terminated at 75 ohms.
• Composite Monochrome Signal: Generated similarly to the RGB channels but with adjusted resistor values and a two-stage amplifier (NPN + PNP) for extra gain.
• Synchronization Signal: The sync signal remained digital and only required amplification to drive the display properly.

Challenges with the Original Design

While the Commodore 390229-03 was reliable, its design reflects the constraints of the 1980s:

• Unusual Resistor Values: Many resistor values are now rare and expensive.
• Revisions Over Time: Commodore made subtle changes across revisions, such as higher resistance values in Revision 3 to reduce crosstalk at higher resolutions.

Why AMYVIDHYBRID+ Matters

The AMYVIDHYBRID+ addresses these challenges by using modern, readily available components:

• Standardized Components: Avoids scarcity issues by using common resistor and capacitor values.
• Compact Design: Unlike the bulky original module, this version is incredibly compact and easy to integrate.
• Based on Revision 3.2: Ensures optimal performance and compatibility with all relevant Amiga models.

A Legacy Worth Preserving

The Commodore 390229-03 Video Hybrid played a vital role in the Amiga’s success, enabling it to deliver cutting-edge graphics and video capabilities. With the AMYVIDHYBRID+, we honor that legacy while ensuring these remarkable machines continue to inspire future generations of retro computing enthusiasts.
