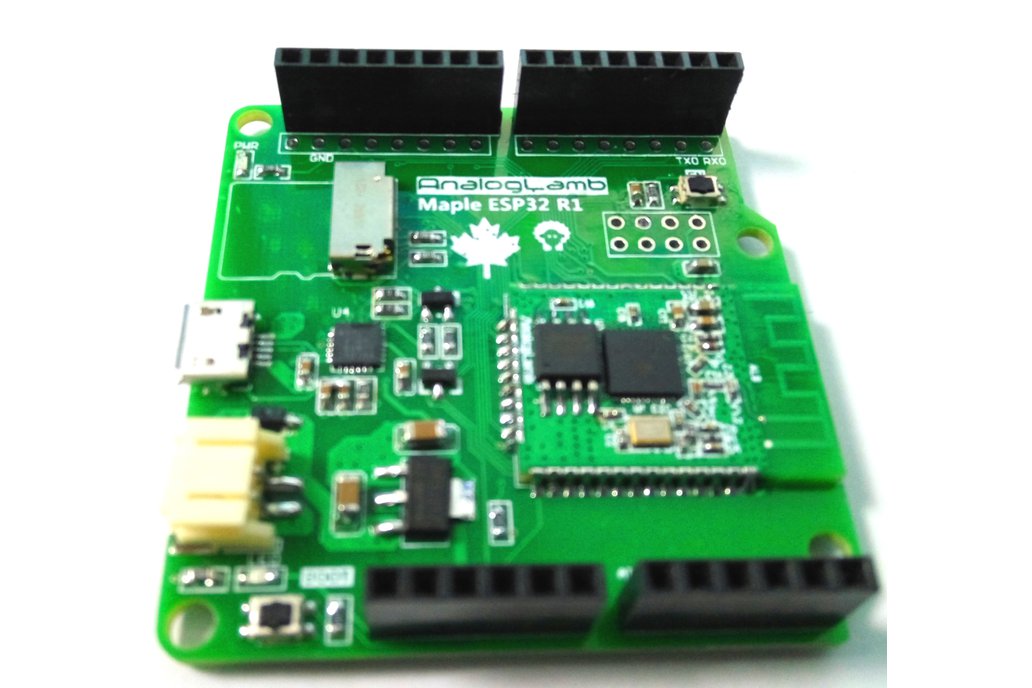

Overview of Maple ESP32

Maple ESP32 is developed by AnalogLamb. It’s for ESP32 developer. It has a Micro-SD Interface, Compatible with Arduino Interface. It provides a CP2104 USB-TTL serial adapter, programming and reset buttons, and a power regulator to supply the ESP32 with a stable 3.3 V. Espressif doubled-down on the CPU resources for the ESP32 with a dual core, running at 160MHz and tons more pins and peripherals. If you want to buy ESP32 Series products, Please see here: http://www.analoglamb.com/product-category/esp32/

Features

• Compatible with Arduino Interface.
• ESP32 Supports WiFi and BT
• 1 x Micro-SD Card Interface
• 1 x CP2104 – USB to UART Bridge
• 1 x Battery Interface
• LDO output current about 800mA
• Supports Auto download circuit
• 2 x Buttons for Reset and Boot
• Program with Arduino IDE

Overview of ESP32

ESP32 is a single chip 2.4 GHz Wi-Fi and Bluetooth combo chip designed with TSMC ultra low power 40 nm technology. It is designed and optimized for the best power performance, RF performance, robustness, versatility, features and reliability, for a wide variety of applications, and different power profiles.

ESP32 is the most integrated solution for Wi-Fi + Bluetooth applications in the industry with less than 10 external components. ESP32 integrates the antenna switch, RF balun, power amplifier, low noise receive amplifier, filters, and power management modules. As such, the entire solution occupies minimal Printed Circuit Board (PCB) area.

ESP32 is designed for mobile, wearable electronics, and Internet of Things (IoT) applications. It has many features of the state-of-the-art low power chips, including fine resolution clock gating, power modes, and dynamic power scaling.
