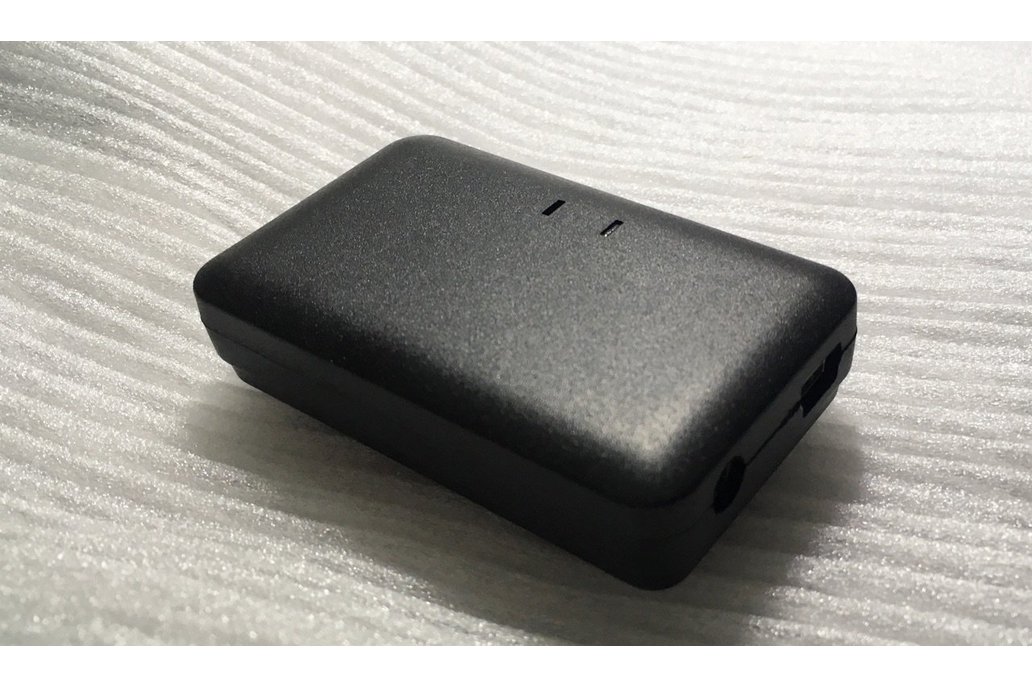

AB BLE Gateway is a BLE to WiFi gateway and bridge. The gateway reads BLE advertising data such as iBeacon and Eddystone format and sends to local TCP server or internet HTTP/MQTT/WebSocket server.

Features

• Size: 60mm x 36mm x 16mm
• Input:5V, 1000mA
• Operating temperature:-20’C to 60’C
• Low power consumption, 80mA typical working current
• Over-The-Air firmware upgrade
• Support WebSocket/HTTP/MQTT server

BLE

• Base on TI CC2640
• BLE on chip antenna
• Scan advertising data from BLE devices
• 30m range in open space
• Bluetooth scan duration 1 second

WiFi

• Support 802.11 b/g/n
• 2.4GHz frequency band
• Support cloud server or local server in LAN
• 100m range in open space

Application

• Indoor Location
• Meeting sign in
• Check in
• Parking & Checking in
• Sensor data collection
• Home automation
• User data collection …
