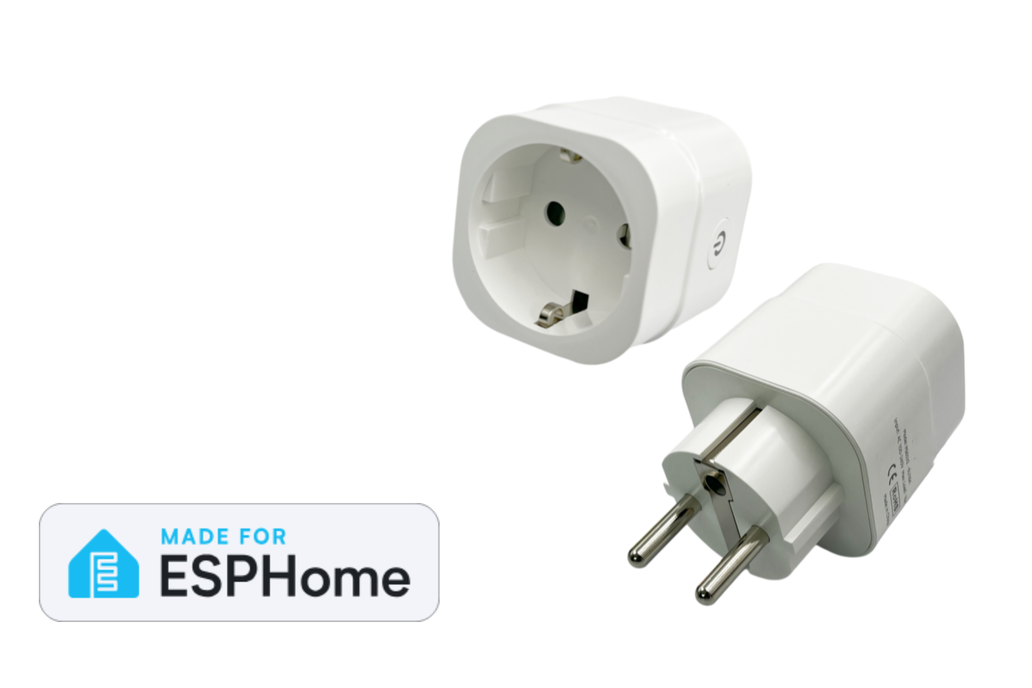

Made for ESPHome 16A EU Consumption Monitoring Plug Works for Home Assistant
Designed by athom smart store in China
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More
The measurement error of active power about 0.2% The measurement error of effective current is 0.5% The measurement error of effective voltage is 0.5% Build in ESP8285 chipset with 2M flash Specific…
Read More…The measurement error of active power about 0.2%
The measurement error of effective current is 0.5%
The measurement error of effective voltage is 0.5%
Build in ESP8285 chipset with 2M flash
Specification:
Input voltage:100-240VAC 50/60Hz
Current:16A(Max)
Product Size:L51W51H85mm
Standard:EU
Wireless standard:IEEE802.11b/g/n,2.4GHz
Housing Color:Whtie
Operation Temperature:-20℃~+50℃
Plastic material:ABS+PC
Fire-protection rating:94-V0
Package Size:626286mm
Weight:80g
GPIOs:
GPIO# Component
GPIO0 None
GPIO1 None
GPIO2 None
GPIO3 CSE7766 Rx
GPIO4 None
GPIO5 Button1
GPIO9 None
GPIO10 None
GPIO12 Relay1
GPIO13 LedLinki
GPIO14 None
GPIO15 None
GPIO16 None
FLAG None
