Upgraded new version , HLW8032 consumption monitoring chipset build in, NO calibration needed,

The measurement error of active power about 0.2%

The measurement error of effective current is 0.5%

The measurement error of effective voltage is 0.5%

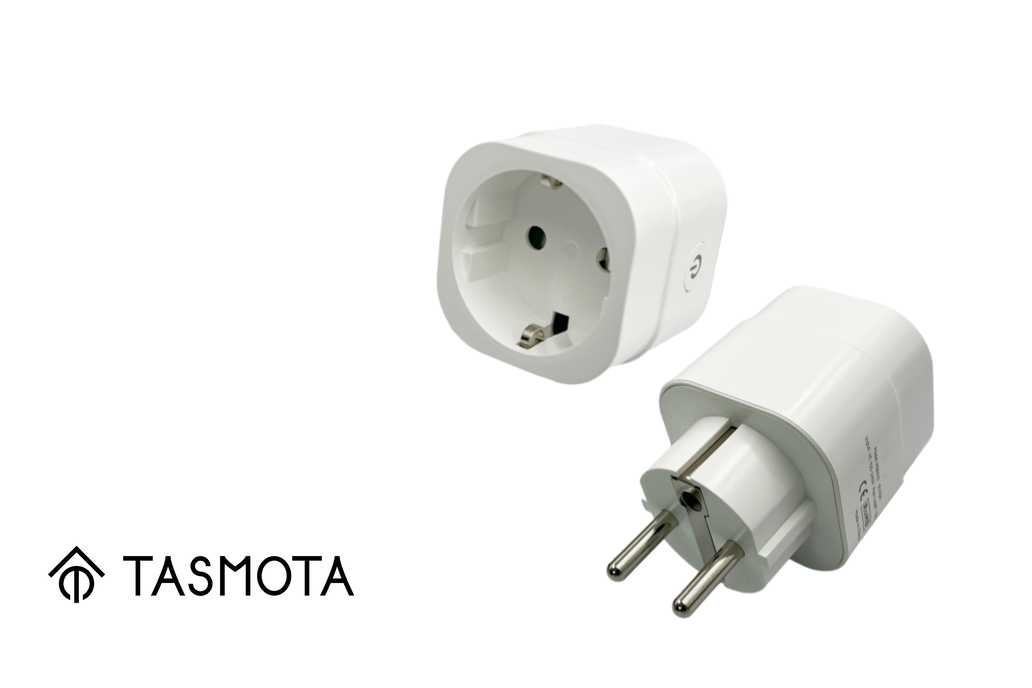

Pre Flashed TASMOTA EU Plug Cosumption monitoring

The latest full version Fully compatible with official Tasmota OTA server Pre configed IOs plug and play Pre flashed before assembling Build in ESP8266 chip with 2M flash

Total local control with quick setup and updates. Control using MQTT, Web UI, HTTP or serial. Automate using timers, rules or scripts. Integration with home automation solutions. Incredibly expandable and flexible. Can be easily upgrade to ESPHome or Homekit etc. Contact us for upgrade firmware

Specification:

Input voltage：100-240VAC 50/60Hz

Current：16A(Max)

Product Size：L51W51H85mm

Standard：EU

Wireless standard：IEEE802.11b/g/n,2.4GHz

Housing Color：Whtie

Operation Temperature：-20℃～+50℃

Plastic material:ABS+PC

Fire-protection rating:94-V0

Weight：80g

Template:

{"NAME":"Athom Plug V2","GPIO":[0,0,0,3104,0,32,0,0,224,576,0,0,0,0],"FLAG":0,"BASE":18}

GPIOs: GPIO# Component

GPIO0 None

GPIO1 None

GPIO2 None

GPIO3 CSE7766 Rx

GPIO4 None

GPIO5 Button1

GPIO9 None

GPIO10 None

GPIO12 Relay1

GPIO13 LedLinki

GPIO14 None

GPIO15 None

GPIO16 None

FLAG None
