TAS6424 4-channel class-D I2S amplifier 4x40W

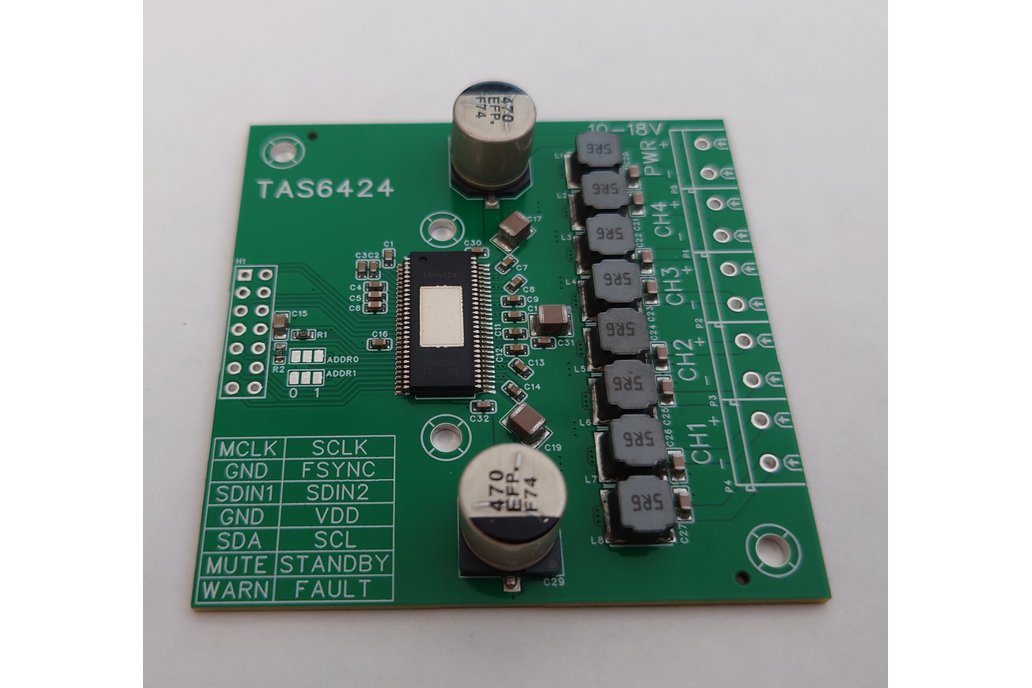

4x40W 4-channel class-D I2S amplifier board using the TAS6424-Q1

Designed by Audacious in Netherlands

TAS6424 4-channel class-D I2S amplifier 4x40W 1

TAS6424 4-channel class-D I2S amplifier 4x40W 2



Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

4x40W 4-channel class-D I2S amplifier board using the TAS6424-Q1

4-channel class-D amplifier board with the Texas Instruments TAS6424-Q1. Ideal for DIY audio projects with microcontrollers. The I²C interface can be used for configuration (volume, gain level, sampl…

4-channel class-D amplifier board with the Texas Instruments TAS6424-Q1. Ideal for DIY audio projects with microcontrollers. The I²C interface can be used for configuration (volume, gain level, sample rate, etc) as well as for diagnostics (over temperature, overcurrent, short to GND, etc). Refer to the datasheet for details.

Power supply voltage: 10-18V
Digital supply voltage: 3.3V
Speaker impedance: ≥4Ω
Power output: 40W/channel
Audio input: I²S/TDM
Control: I²C
