THIS IS A COMPLETE READY TO GO UNIT / PLUG & PLAY FOR C64 INCLUDING SD CARD PLEASE READ UP ON THIS PROJECT TO SEE IF THIS IS WILL DO WHAT YOU WANT.

PLEASE NOTE PCB COLOR IS NOW GREEN

https://github.com/frntc/Sidekick64

THIS HAS BEEN ASSEMBLED TO WORK AS A REGULAR C64 CART

1. Insert the Sidekick64 Cart into you c64 (NEVER POWER THE PIZERO WITH EXTERNAL USB POWER**)

2. Switch on your c64 / 128 / vic20 /c16/+4(adapter required)

3. The screen will remain black for ~10sec then the lcd on the sidekick will load as will the menu on the c64.

4. If you want kernal and sid functions on the SK64 then you will need leads coming from the pins off the cpu / sid)

Turn on the c64

It will boot up after 10 seconds in the c64(of black screen), the lcd will load and the sidekick menu will appear on your c64 screen.

ALL GOLD PLATED / GOLD FINGERS PCB

Please read up about this project before purchasing so that you know what this can and can't do.

WHAT IS INCLUDED IN THIS LISTING:

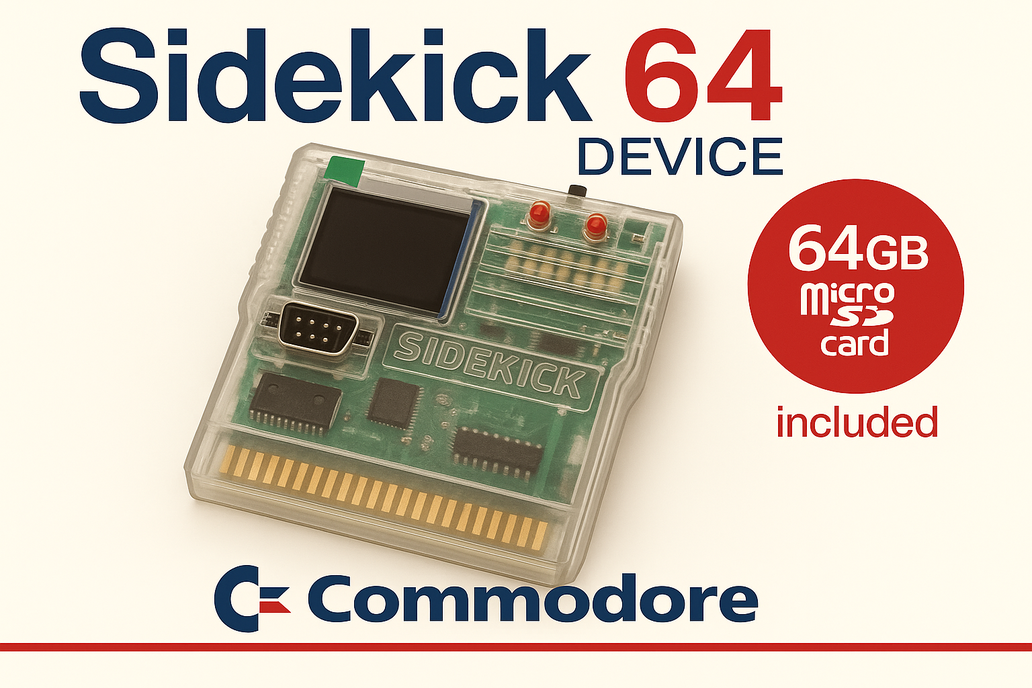

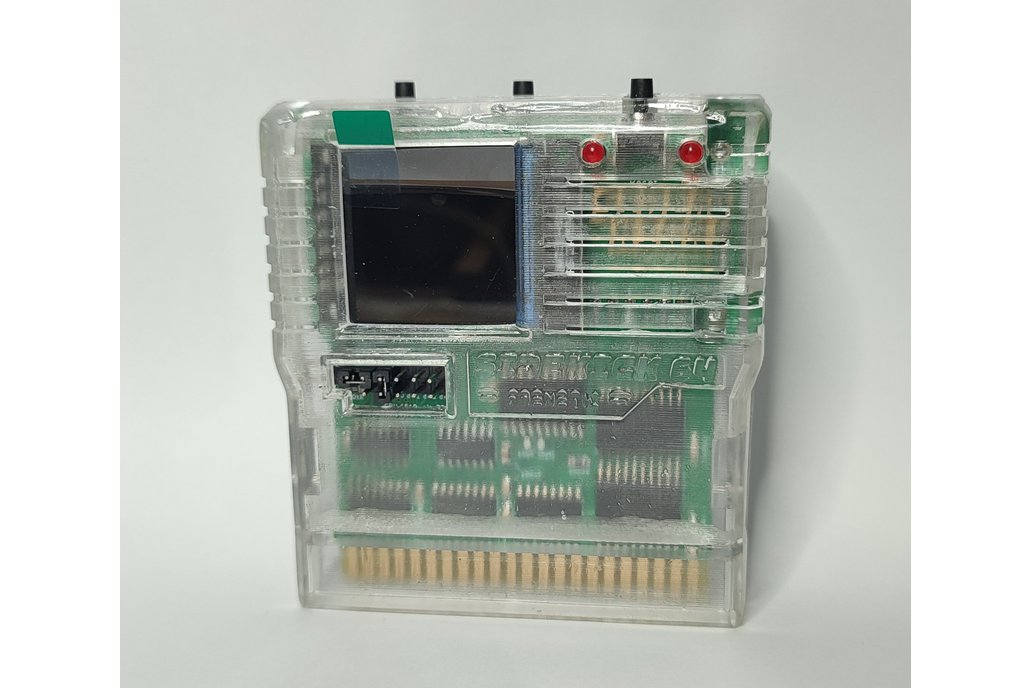

1 X COMPLETE SIDEKICK 64 PCB CARTRIDGE INCLUDING LCD, ASSEMBLED AND TESTED ON AN ORIGINAL COMMODORE C64C

1 X PIZERO2W AND RESIN PRINTED CASE ASSEMBLED

1 x 64GB microSD card loaded with firmware and 40gb+ software archive

IF YOU HAVE ANY QUESTIONS OR ARE NOT SURE PLEASE CONTACT ME BEFORE YOU BUY

Thank you for viewing this listing!

All the projects and videos linked to in this listing belong to their respective owners and creators and have been allowed to be reproduced for the benefit of the Retro computing community. Please visit their sites and support them any way you can.

Once you have plugged in your own compatible Raspberry Pi model and loaded the SideKick software:

a GeoRAM/NeoRAM-compatible memory expansion, freezer cartridges Action Replay 4.x-7.x Final Cartridge 3(+) KCS Power Cartridge Super Snapshot V5 Freeze Frame and Freeze Machine Atomic/Nordic Power (experimental, at best) numerous (bank switching) cartridges such as plain CBM80, C16/+4 and C128 cartridges Easyflash (with simplified EAPI support) GMod2 (including EEPROM for save games) MagicDesk/Domark/HES Australia Ocean Type A and B (up to 512k) Dinamic C64 Game System Funplay/Powerplay Comal80 Epyx Fastload Warp Speed (C64 and C128) Megabit ROM (C128) (Super) Zaxxon Prophet64 Simons Basic RGCD and Hucky's cartridge C64 kernal replacement Function ROMs on a C128 multiple SIDs and Sound Expander/FM emulation (up to 8 SIDs, e.g. to play The Tuneful 8) simplified Datel and Sequential MIDI interface emulation with built-in SoundFont-synthesizer (slightly modified version of TinySoundFont) audio player (MOD, YM and WAV files) with SID- and HDMI-output, supporting up to stereo 48kHz output on dual-SID setups (C64 and C128)
