This adaptation is brought to you with permission from original creator Non-Linear Circuits. They get a fair share for every kit sold.

Slow, slower, sloth

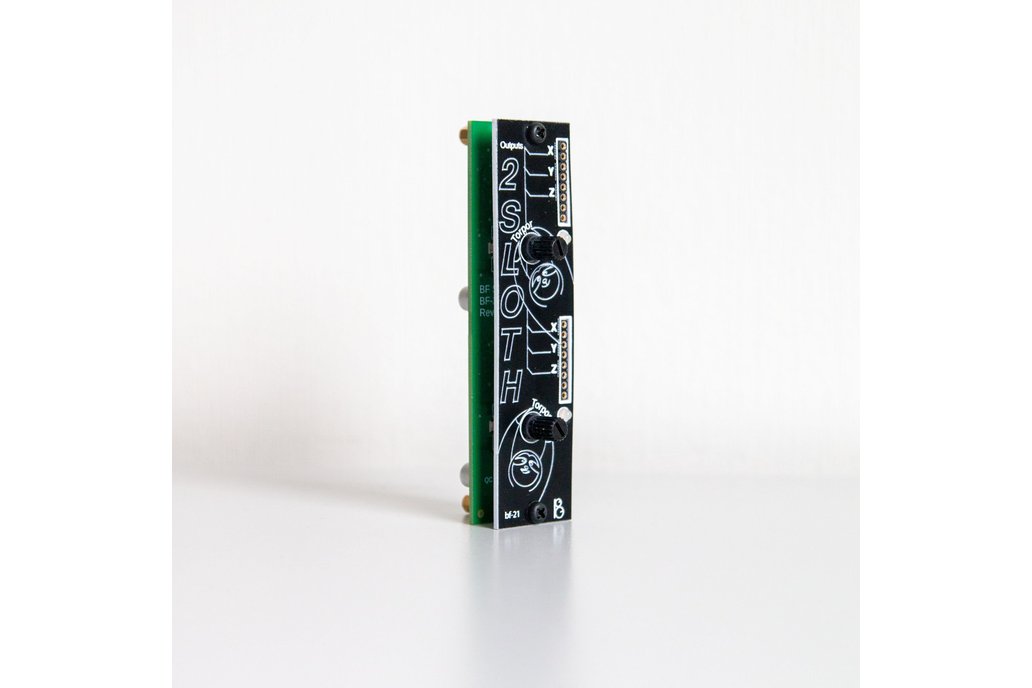

2SLOTH is a slow, chaotic modulation/CV source for the AE Modular format. It is an adaptation of the legendary Eurorack "Sloth" circuit from Non Linear Circuits. Each 'Sloth' has three, slowly moving outputs which are perfect for modulating parameters to bring your patches alive. The top Sloth has a 'cycle time' of around 15sec, while the bottom one usually has a cycle time of 30-40sec. I say usually, because the Sloth chooses what it does, the LFO has no fine control and changes with every oscillation. Each output can 'orbit' around two different CV points (read: the lfo can be 'centered' around two different axes), and can change from the one center to the other, seemingly at random. You can influence the chance of it to change it's orbit with the pot, but do not expect a lot of control, because that is not the point. There are no inputs, the Sloths go their own ways.

Outputs of each Sloth:

• x: output swinging over a large voltage range
• y: another, different output swinging over a smaller voltage range
• z: the inverted output of y

Sidenote for the very first 2SLOTH iteration:

The frontplates are not completely alligned with the correct outputs. The outputs per Sloth from top to bottom are: 2 x outputs, 2 y outputs, 2 z outputs, 2 unconnected outputs. Because of this, the first batch small batch will be sold cheaper. Following batches will have this error fixed but will be slightly more expensive. In case you want to swap frontplates later, send me a message and I'll send you a new frontplate once they arrive.
