RF Test board Vector Network Test

Name: RF Test board Vector Network Test
SKU: 23397
Price: 27.99 USD
Availability: InStock

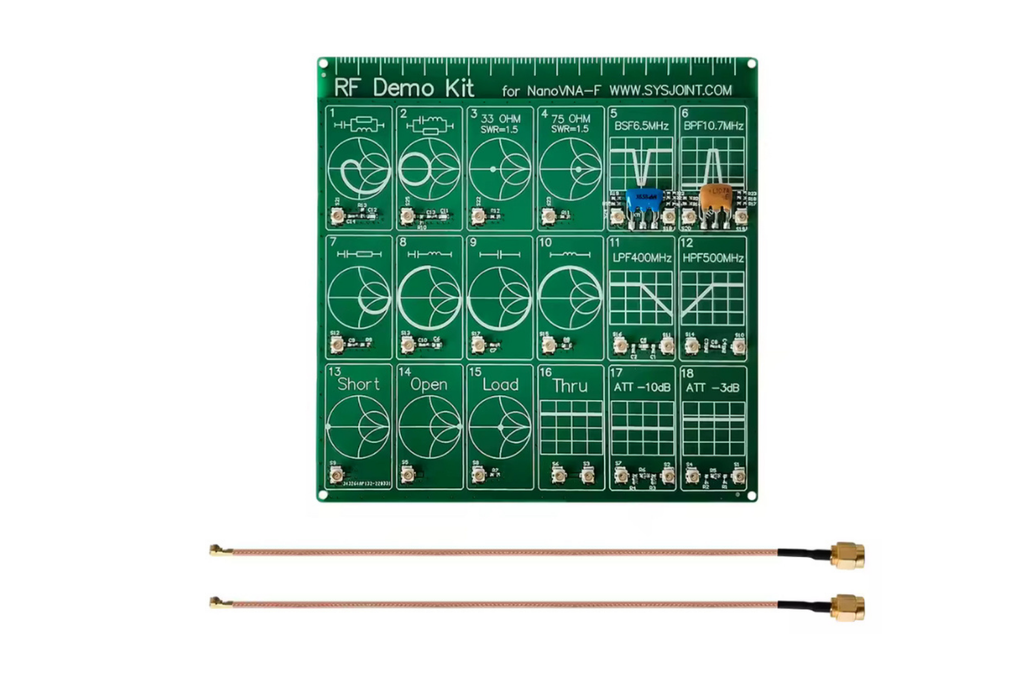

RF Test board Vector Network Test Filter / Attenuator RF Demo Kit For NanoVNA-F WITH 2 CABLES. Smith Chart

Sold By Bits4Bots

2021-04-19T23:49:57.222Z-2021-04-19T11_11_34.132Z-6861DA76-F100-4D85-8FFE-7F70B0D9C60D...jpeg




Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Hello makers. Welcome to Bits4Bots. Hardware designed with kids in mind.

RF Test board Vector Network Test Filter / Attenuator RF Demo Kit For NanoVNA-F WITH 2 CABLES. Smith Chart

What is it? RF demo board. Learn about Smith Chart and how the VNA equipment measures S-parameters. What does it do? Test open, short, and 50 Ohm load. Also, band pass, low pass, and high pass filte…

What is it?

RF demo board. Learn about Smith Chart and how the VNA equipment measures S-parameters.

What does it do?

Test open, short, and 50 Ohm load. Also, band pass, low pass, and high pass filter understanding. Use this board with a NanoVNA.

What makes it special?

Affordable for personal workbench. School or home. Great for Wireless Circuits, cable testing (reflection coefficient, transmission lines, isolated lines) and more. SMA connection.
