The TS-M1037 is a high-speed, master-slave integrated BLE 5.2 Bluetooth module characterized by its exceptional stability and ultra-low power consumption. It features a default Bluetooth serial port transparent transmission mode, and users can easily modify parameters such as serial port baud rates and device names using the provided AT commands, ensuring flexible and straightforward operation. This module is distinguished by its excellent stability, ultra-low cost, and high reception sensitivity, coupled with minimal power consumption. It is available with either a built-in or an external antenna option, catering to various project needs.

Model No.: TS-M1037

Features

Bluetooth Version: BLE 5.2

Frequency Band: 2.402GHz-2.480GHz ISM band

TX Power: -20dBm~+12Bm

Receive Sensitivity: -96dBm

Air Rate: 250Kbps/1Mbps/2Mbps

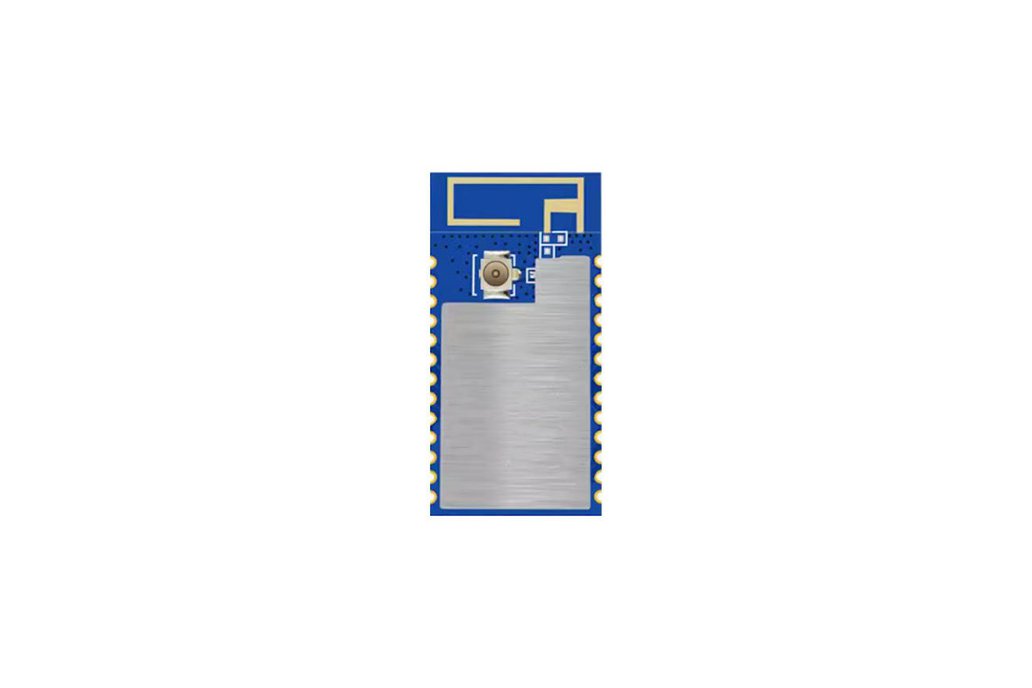

Antenna: PCB Onboard / IPEX Antenna

Advise Range: 100m

Memory: 80KB RAM

Size: 26.7132.3mm

Pin/GPIO: 21/13

Power Supply: 2~3.6V

Operating Temperature: -40℃~+85℃

Peripheral Interface: UART/SPI/I2C/ADC

Serial Transparent Transmission Rate: BLE 20KB/s

Applications Smart home

Location tracking

Intelligent educational equipment

Measurement and monitoring system

Industrial sensors and controls

Medical equipment monitoring and wireless control
