What is it?

The TS-M1035 is a high-speed BLE 5.1 Bluetooth module designed for reliable and efficient wireless communication. It supports serial port transparent transmission, master-slave mode, and AT commands, making it a versatile solution for various applications.

Why did you make it?

The TS-M1035 was developed to provide a robust and flexible Bluetooth solution that combines high-speed data transmission with ultra-low cost and excellent stability. Its support for serial port transparent transmission and customizable parameters using AT commands ensures ease of integration and operation. The module is designed to meet the needs of applications ranging from smart home automation to medical equipment monitoring.

What makes it special?

• High-Speed BLE 5.1: The TS-M1035 supports the latest BLE 5.1 protocol, enabling faster data transmission rates and improved performance.
• Serial Port Transparent Transmission: The module offers a default serial port transparent transmission mode, simplifying the integration process for users.
• Master-Slave Mode: The TS-M1035 supports both master and slave roles, providing flexibility in network configurations and communication protocols.
• Customizable Parameters: Users can easily modify parameters such as serial port baud rates and device names using the provided AT commands, ensuring flexible and straightforward operation.
• Excellent Stability and Low Cost: Designed for outstanding stability and ultra-low cost, making it an accessible solution for a wide range of projects.
• High Reception Sensitivity: With a receive sensitivity of -95dBm, the module ensures reliable communication even in challenging environments.

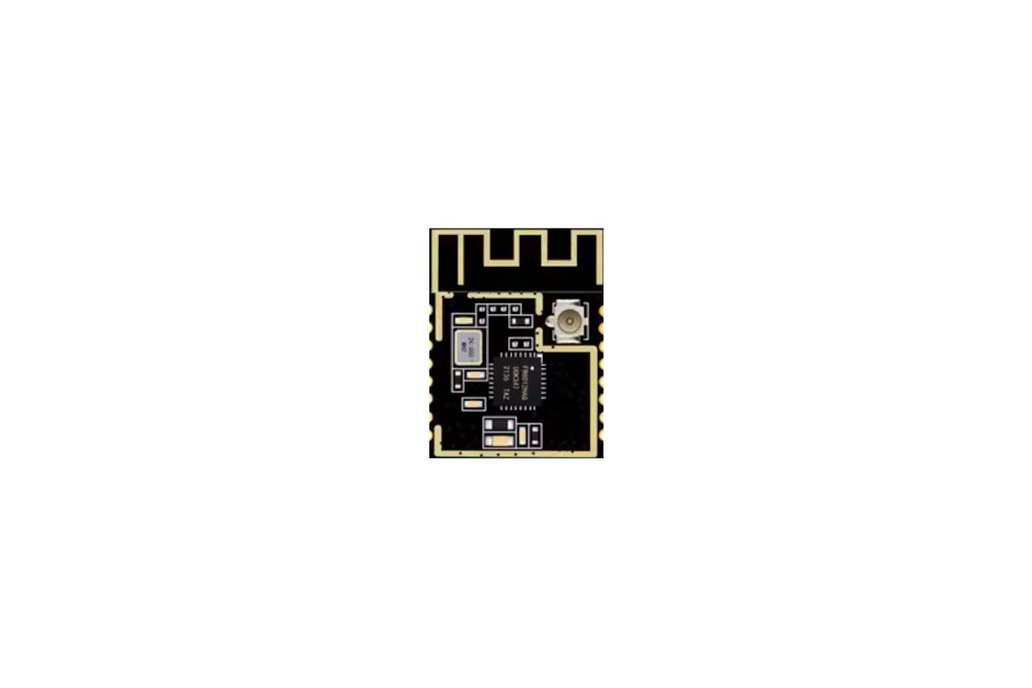

• Antenna Options: Available with either a built-in PCB antenna or an external IPEX antenna, the TS-M1035 can adapt to various project requirements.
• Extended Range: An advisory range of up to 80 meters makes the TS-M1035 suitable for applications requiring long-range communication.
• Robust Connectivity: The PCB onboard antenna and optional external antenna ensure reliable wireless communication.
• Compact Size: At 20×15×1.5 mm, the TS-M1035 is compact and easy to integrate into various projects.
• Wide Operating Temperature Range: With an operating temperature range of -40℃ to +105℃, the module is suitable for use in harsh environments.
• Versatile Interface Options: The module supports UART, SPI, I2C, and ADC peripheral interfaces, making it easy to integrate with various systems and devices.
• High Transmission Rate: The serial transparent transmission rate of BLE 20KB/s ensures efficient data transfer.
• Wide Application Range: Suitable for various applications, including smart home, location tracking, Bluetooth electronic scales, intelligent educational equipment, vehicle testing equipment, measurement and monitoring systems, Bluetooth wireless data transmission, industrial sensors and controls, and medical equipment monitoring and wireless control.
