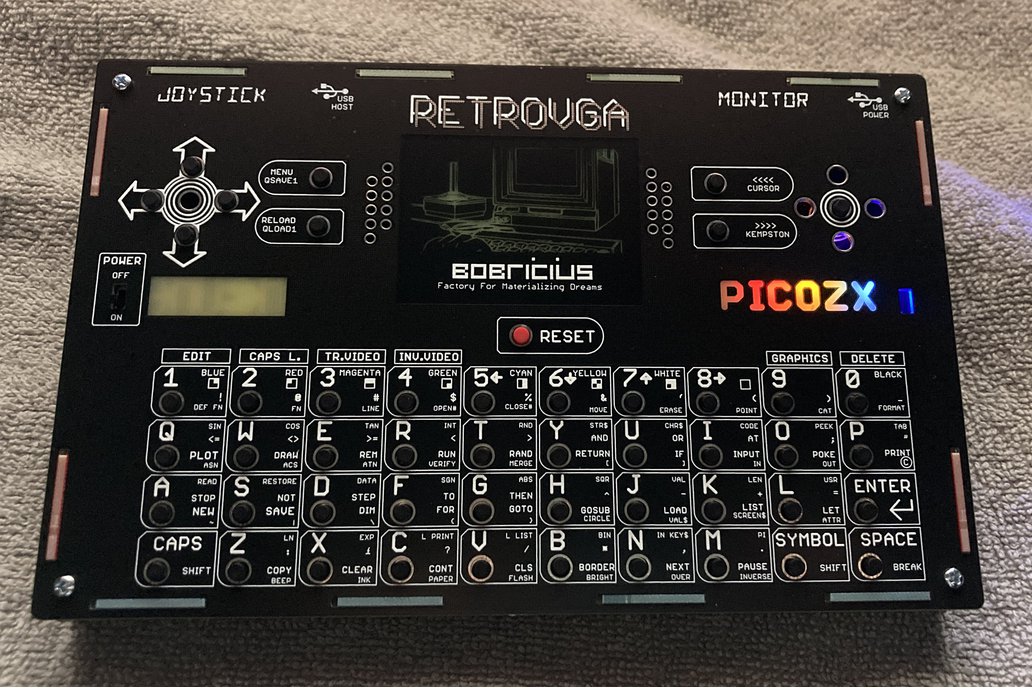

ZX128k retro computer emulator based on Raspberry Pi PICO

READ PLEASE !!!

This board can run retro computer machine emulator ZX128 by Phil SCULL with quick save and USB OTG for full keyboard and USB joystick/gamepad firmware version named with AUK you can download from DATASHEET on this page

      NOTE! 9pin DSUB ATARI joystick connector
      can make troubles if is cable to long, try shorten to etc 30cm

FEATURES:

• Dimensions 170mm x 110mm
• VGA output
• Piezo Speaker
• Reset button
• micro SD card
• 9pin DSUB ATARI joystick connector

Sale options:

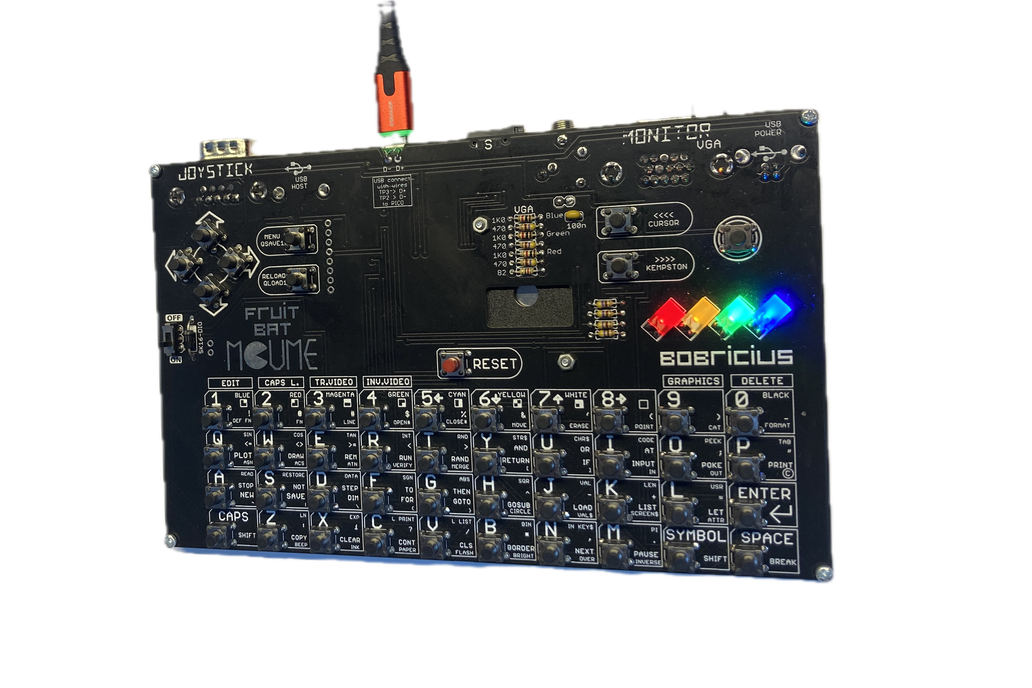

• Assembled ready for use with PICOZX firmware, motherboard without cover as on first picture

USB-host

• supported keyboard and gamepad

Computer systems supported:

• Zx spectrum 48k
• Zx spectrum 128k

Features:

• USB keyboard / joystick
• Keyboard matrix 8x5 keys
• USB joysticks
• VGA video (RGB222)
• PWM sound (1 pin) with AY-3-8912 emulation
• SPI SD card
• 12 quick save slots
• Load from .z80 snapshot files
• Read from .tap tape files, emulate loading sound and loading time
• On screen menu
• Kempston and Sinclair joystick emulation

You can check if firmware is active by

• Caps + Cursor = onboard LED is ON
• Caps + Kempston = onboard LED is OFF
