CCD/PCI-bus Transceiver Development Board

Name: CCD/PCI-bus Transceiver Development Board
SKU: 20980
Price: 25.00 USD
Availability: InStock
Rating: 5.00 (1 reviews)

(1 Review)

Arduino development board for interfacing Chrysler's legacy CCD/PCI-bus.

Designed by Boundary Condition in Hungary

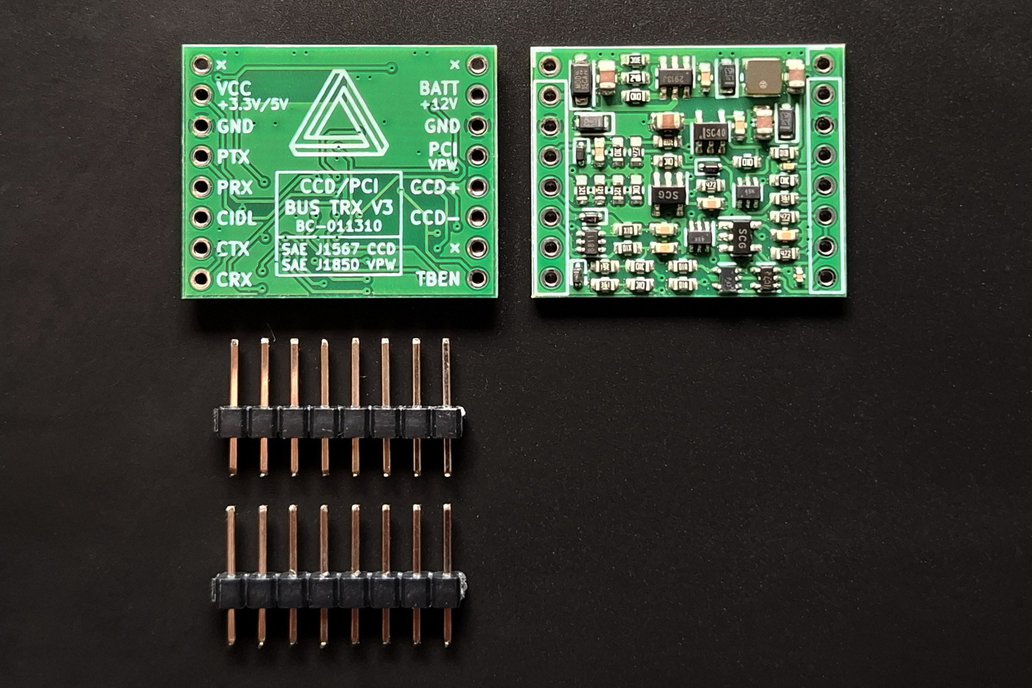

CCD/PCI-bus Transceiver Development Board 1

CCD/PCI-bus Transceiver Development Board 2



Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Arduino development board for interfacing Chrysler's legacy CCD/PCI-bus.

Current hardware version: v3.0.0 Important notice This product is NOT a protocol translator device. The board merely houses separate CCD- and PCI-bus transceivers. User have to implement their own tr…

Current hardware version: v3.0.0

Important notice

This product is NOT a protocol translator device. The board merely houses separate CCD- and PCI-bus transceivers. User have to implement their own translation logic if they wish to use it in such manner.

Description

As a successor of CCDBusTransceiver this development board is designed to copy the functionality of commercial CCD/PCI-bus transceiver chips found in early FCA passenger vehicles. A 3.3V or 5V logic microcontroller with at least 2 UART-channels is required as the host. Tested on Arduino Mega.

Arduino library and examples for CCD-bus and PCI-bus.

Specifications

Bus protocols

SAE J1567 CCD-bus
SAE J1850 VPW PCI-bus

MCU interface

CCD: UART (RX/TX)
PCI: GPIO (RX must be external interrupt capable)

Features

read/write CCD/PCI-bus messages
selectable CCD-bus termination and bias

Other information

VCC pin is power input only
Operating voltage: 10-15V via OBD2 connector
Operating Temperature: commercial range (0°C to +70°C)
Size: 26.3 x 21.2 x 2.9 mm
Weight: 2.4 g

Vehicle coverage

1983-2003 Chrysler/Dodge/Jeep

Package content

1x CCD/PCI devboard
2x 8p straight pinheader

Pinout

Pin	Name	Function	Note
1	x	Not connected
2	VCC	MCU logic voltage	3.3V or 5V (power input only)
3	GND	Power supply ground
4	PTX	PCI-bus TX	Data output (VPW symbols)
5	PRX	PCI-bus RX	Data input (VPW symbols)
6	CIDL	CCD-bus IDLE	Connected to CTX
7	CTX	CCD-bus TX	Data output (UART)
8	CRX	CCD-bus RX	Data input (UART)
9	TBEN	CCD-bus termination and bias	GND/Floating=on (default), VCC=off
10	x	Not connected
11	CCD-	J1962-11 (OBD2)	J1567 CCD- differential signal
12	CCD+	J1962-3 (OBD2)	J1567 CCD+ differential signal
13	PCI	J1962-2 (OBD2)	J1850 VPW signal
14	GND	J1962-4 (OBD2)	Chassis ground
15	BATT	J1962-16 (OBD2)	Battery positive
16	x	Not connected

Arduino Mega pintout:

Pin	Name	Arduino Mega	OBD2 connector
2	VCC	+5V
3	GND	GND
4	PTX	D9
5	PRX	D2
6	CIDL	D3
7	CTX	RXD1
8	CRX	TXD1
9	TBEN	D4
11	CCD-		J1962-11
12	CCD+		J1962-3
13	PCI		J1962-2
14	GND		J1962-4
15	+12V		J1962-16

No country selected, please select your country to see shipping options.

Change Destination Country:

Boundary Condition Shipping Policy:

Packages are shipped within 1-3 working days. Non-EU countries: import duties and taxes are not included in the item price or the shipping charge.

Quantity	Price
1	$25.00
2-4	$22.00
5-9	$21.00
10+	$20.00

Review Breakdown

Average Ratings

Product: (5.00)

Documentation: (5.00)

Shipping: (5.00)

Communication: (5.00)

Luke | Sept. 13, 2024

Amazing little device, allowed me to tinker with old PCI bus

Great little pcb, I just needed to talk to my Jeep KJs pci bus and this allowed such. I didn't even need any CCD communications but now I have that option! Good quality, packaged/shipped well, and excellent documentation!
