Use SCOREDUINO-DMD module to build your own unique digital cricket scoreboard using dot matrix. Operated with Android app via Bluetooth.
Designed by BuildCircuit in Australia
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More
The SCOREDUINO-DMD module, paired with dual-color and six P10 dot matrix displays, provides a simple solution for setting up a basic cricket scoreboard. This scoreboard effortlessly showcases LIVE sc…
Read More…The SCOREDUINO-DMD module, paired with dual-color and six P10 dot matrix displays, provides a simple solution for setting up a basic cricket scoreboard. This scoreboard effortlessly showcases LIVE scores from cricclubs.com, and playhq.com(uses API), cycling through total runs, wickets, and overs, with each parameter displayed for 2 seconds.
The scores are shown as, for example, 22R, 5W, 4.3ov which means 22 runs, 5 wickets and 4.3overs.

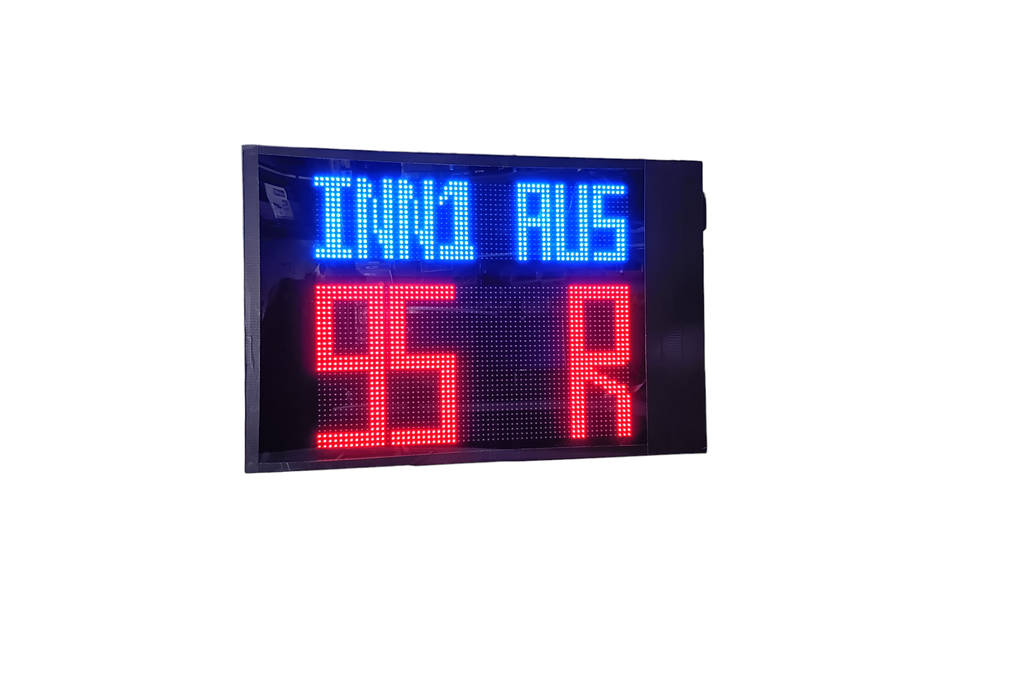

The top display shows the name of the playing team, such as INN1 AUS or INN2 USA and the bottom display shows the runs, wickets and overs. Designed for both indoor and outdoor use, this scoreboard is easy to assemble and operate. With dimensions of 64cm x 48cm, it can be crafted in various vibrant colors like red, blue, white, green, and yellow. Controlling the cricket scoreboard is made convenient through the user-friendly scoreduino-app, utilizing Bluetooth connectivity for seamless communication between the scoreboard and the app. Users can conveniently set the brightness of their display using the app.
It is possible to update the scores manually also using our app.
Download Manual score update app
Designed for both indoor and outdoor use, this scoreboard is easy to set up and operate. With dimensions of 64cm x 48cm, it is available in vibrant colors such as red, blue, white, green, and yellow. The scoreboard is managed through the user-friendly scoreduino-app, which uses Bluetooth connectivity for smooth communication between the scoreboard and the app. The app allows users to adjust the display's brightness levels effortlessly.
NOTE: The title display unit consists of 2 dot matrix displays, while the score unit comprises 4 matrix displays. Each unit requires separate power sources and operates with two distinct DMD modules. These units are packaged together in a single box and are controlled by a unified app. The app communicates simultaneously with two Bluetooth modules.
You can either purchase the Scoreduino-DMD module or purchase the entire set of components and accessories to build your own scoreboard. The enclosure is not included.
Check out the video outputs:
Package includes:
Option 1: 2 x Scoreduino P10 DMD Scoreboard Controller module + 2 x Bluetooth module ONLY. The Scoreduino controller module comes preprogrammed to drive the scoreboard. Customers will need to purchase the P10 dot matrix displays and other accessories separately.
Option 2: Scoreduino P10 DMD Scoreboard Controller module + Bluetooth module + All accessories (Excludes enclosure and acrylic).
These parts are included:
Option 3: Fully assembled scoreboard with wooden enclosure and acrylic. Customers don't need to do anything. NOTE: The scoreboard enclosure will be handmade, so, excellent output should not be expected.
This tutorial will help you assemble the parts
Download Manual score update app
NOTE: Our source codes are not shared. All the modules are preprogrammed
