Designed to Control Multi-Purpose Robots

Designed to Control Multi-Purpose Robots. Powered by PIC18f5420 Microcontroller, the DC motor you connect to your projects allows you to drive Step motors with the L298N Motor driver.The Bluetooth module for your projects allows you to control the HC 05 smartphone with the applications you have designed.8x2 LCD display and buttons on the card simplifies control.Power supply and battery for 2-40 volt input range.

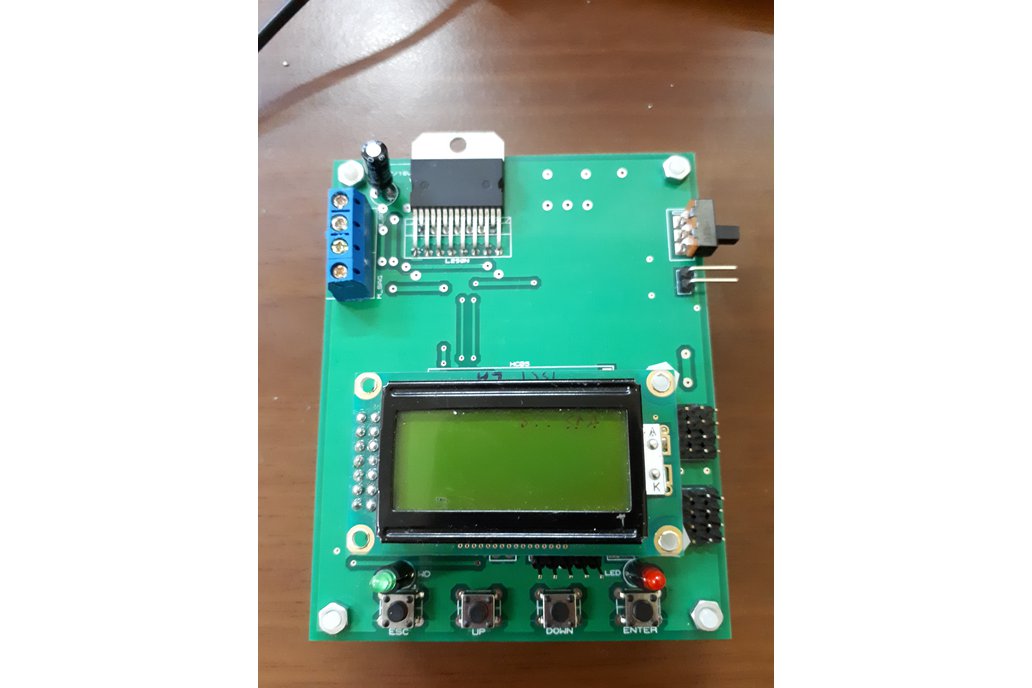

It will be sent in fully assembled way (Sample first picture)

Why did you make it?

To control all robots I have designed with a single card.Easy to develop applications, less setup time, less wiring mess..

Applications

• Bluetooth-controlled RC car
• Smartphone Controlled Devices
• Perfect control applications
• Monitoring applications
• DC&STEP Motor Control Applications

BOARD FEATURES

• PIC18f4520 Microcontroller.
• L298N Motor driver.
• Bluetooth module HC05.
• 2×8 Character LCD
• 4 pcs user Button
• Extended pins.
• Power supply and battery for 2-40 volt input range.
• ICSP port
• 4 pcs screw holes for easy installation
• Compact design
• On/Off switch
• 1 pcs user Led
• 1 pcs power indicator led
