ATtiny10 Brd, Reset Sw, ICSP and LED

Name: ATtiny10 Brd, Reset Sw, ICSP and LED
SKU: 30824
Price: 4.00 USD
Availability: InStock

ATtiny10 dev Board with Reset Switch and 10 pin ICSP for learning and development using the "grain of rice" ATtiny10

Designed by CanHobby in Canada






Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

ATtiny10 dev Board with Reset Switch and 10 pin ICSP for learning and development using the "grain of rice" ATtiny10

ATtiny dev Board with Reset Switch, 10 pin ICSP and LED Unique in having an on-board Reset Switch and ICSP header. Designed for Bread Board use - All pins of the ATtiny10 are brought out as well as 2…

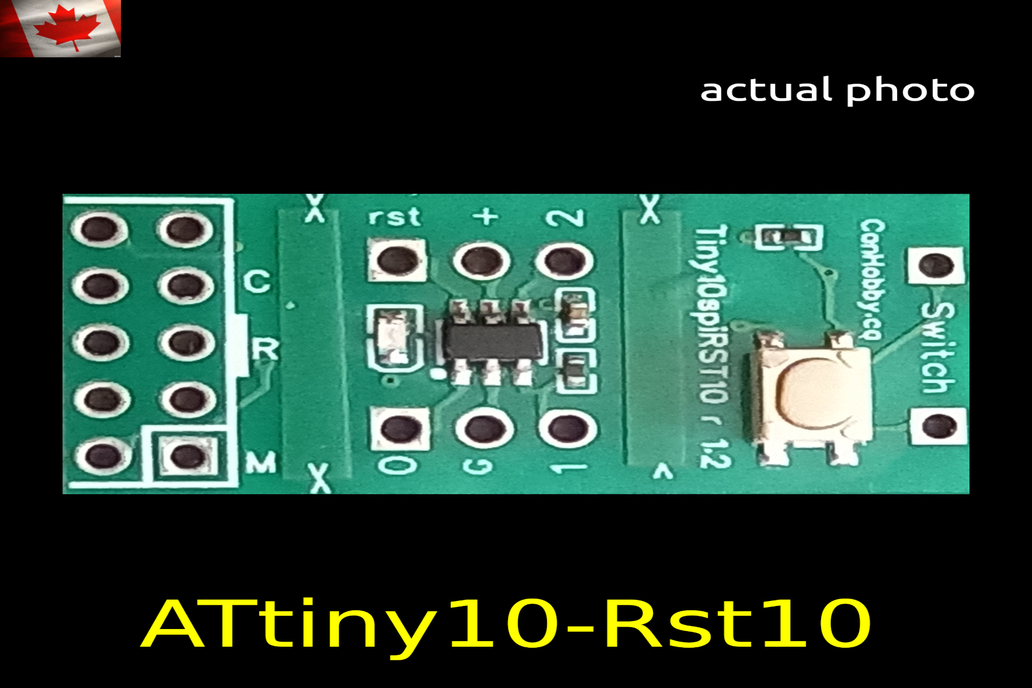

ATtiny dev Board with Reset Switch, 10 pin ICSP and LED

Unique in having an on-board Reset Switch and ICSP header.

Designed for Bread Board use - All pins of the ATtiny10 are brought out as well as 2 extra pins from the Reset Switch for mechanical stability (this is not a large PCB). An on-board LED is connected to GPIO-B1. There are solder pads on the bottom to enable the LED as well as the Reset Switch.

10 pin ICSP header connects directly to USBasp.

Board is shipped with Header pins separate - they are not soldered.
