ATtiny10-Minimum Arduino development board

Name: ATtiny10-Minimum Arduino development board
SKU: 27783
Price: 1.54 USD
Availability: InStock

Minimum development board for ATtin10 MCU for Arduino IDE

Designed by CanHobby in Canada

ATtiny10-Minimum Arduino development board 1

ATtiny10-Minimum Arduino development board 2

ATtiny10-Minimum Arduino development board 3

ATtiny10-Minimum Arduino development board 4

ATtiny10-Minimum Arduino development board 5

ATtiny10-Minimum Arduino development board 6

ATtiny10-Minimum Arduino development board 7

ATtiny10-Minimum Arduino development board 8









Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

Minimum development board for ATtin10 MCU for Arduino IDE

This is a minimum development board for the ATtiny10 - all 6 pins are broken out on 1/10" centers - perfect for using on a breadboard. The ATtiny10 is the smallest of MicroChip's huge array of 8 bit…

This is a minimum development board for the ATtiny10 - all 6 pins are broken out on 1/10" centers - perfect for using on a breadboard. The ATtiny10 is the smallest of MicroChip's huge array of 8 bit microcontrollers. It is often referred to as the "grain-of-rice" processor. Despite it's diminutive size it packs a lot of punch.

Features include:

4 GPIOs just like Arduino Nano GPIOs. ( only 3 if you use the Reset function ).
1 KBytes Flash memory, 32 bytes SRAM.
SPI bus and I2C Bus.
16 bit timer with 2 output compare and 1 input capture register for
2 PWM channels.
Watchdog timer.
4 single-ended 8-bit ADC channels.
1 Analog Comparator.

It can be programmed with the Arduino IDE using a USBASP programmer with the latest firmware.

I designed this board because I like the "minimum" experience.

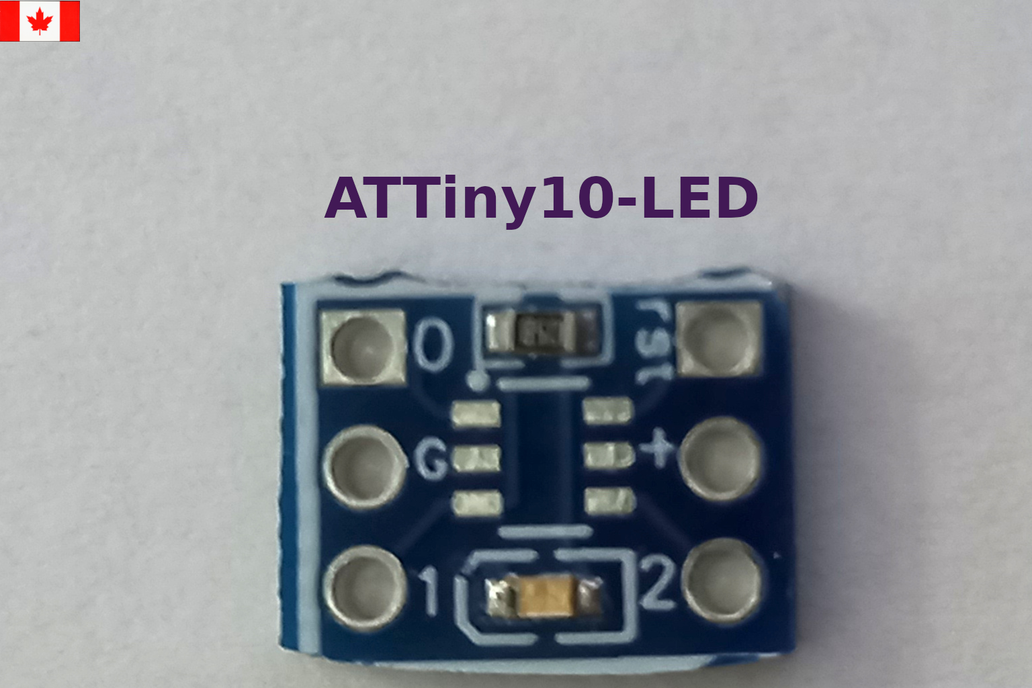

This board has no extraneous items - just 1 lonely bypass cap. Perfect for "minimum" power usage. [ OK - I lied - there is also a version with 1 LED on it ]

All versions include male header pins but not soldered..

No country selected, please select your country to see shipping options.

Change Destination Country:

CanHobby Shipping Policy:

I use CanadaPost to keep shipping costs low.. No tracking is normally available. Expect delivery within 2-9 days.

Canada Post Tracked Packet service is available to many countries. Expect Delivery within 13 days.
