Caniot tool is a Multi-platform simulation, analysis and test environment for development and test of CAN/LIN bus systems. Simplicity is the highest principle when setting up, operating and expanding the system. The main advantages:

• User friendly lvgl GUI to control the caniotBox.

• C library allows the user to write programs for individual applications.

• Simulates messages and signals of missing control units from databases (arxml file,CAN dbc file, LIN ldf File).

• intuitive Caniot application for analysis: user panels, signal plots, dashboards, trace window.

• DBC/LDF decode data to physical values and plot

• Support ISO-TP 15765-2 and UDS ISO 14229.

• CaniotBox has simple logger which writes everything from CAN/LIN bus to csv file on a SD card (8-32GB).

• stream real-time data via USB or TCP Connection on your PC.

• stream real-time data to your own MQTT Server.

• CaniotBox update notification.

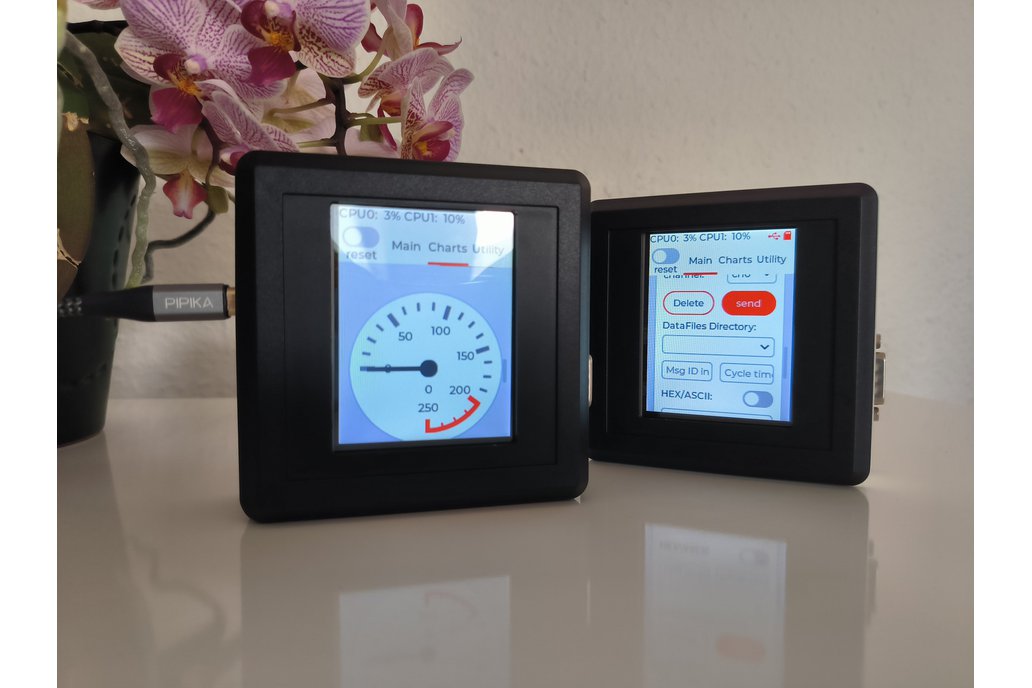

CaniotBox Specifications:

• Controller: ESP32 S3 with 240 MHz

• Flash: 16MB Serial Flash Memory

• RAM: 8MB Serial RAM Memory

• 1 CAN0 channels up to 1 Mbit/s

• 1 CAN1 FD channel up to 8 Mbit/s

• Supports both 11-bit (CAN 2.0A) and 29-bit (CAN 2.0B active) identifi-ers High-speed CAN connection (compliant with ISO 11898-2).

• 1 LIN channel up to 20 Baud.

• 1 K-LINE channel up to 150 Baud.

• 2.4 GHz proprietary protocol.

• internal antenna with max gain of 3dBi.

• Power supplied through 5V USB or external 5V to 40V input dsub 1.

• development tools Available for Windows, Linux and macOS.

• aluminum case.
