HUB75 RGB LED Matrix Shield for ESP32 - PCB

Name: HUB75 RGB LED Matrix Shield for ESP32 - PCB
SKU: 37528
Price: 19.55 USD
Availability: InStock

HUB75 RGB LED Matrix Panel driver using a common ESP32 development board. Bare PCB 3-pack

Sold By Robot Power

HUB75 RGB LED Matrix Shield for ESP32 - PCB 1

HUB75 RGB LED Matrix Shield for ESP32 - PCB 2

HUB75 RGB LED Matrix Shield for ESP32 - PCB 3

HUB75 RGB LED Matrix Shield for ESP32 - PCB 4




Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

HUB75 RGB LED Matrix Panel driver using a common ESP32 development board. Bare PCB 3-pack

What is it? This listing is for driver board for common HUB75-type RGB LED matrix panels. The unit is driven by a common ESP32 development board - the WeMos Mini D1 (or various clones) available on …

What is it?

This listing is for driver board for common HUB75-type RGB LED matrix panels. The unit is driven by a common ESP32 development board - the WeMos Mini D1 (or various clones) available on Amazon, ebay or several Chinese Web stores. A wide variety of panels sizes can be used and the panels can be chained together to build larger displays.

This is a fork of the v1.9 Charles-Henri Hallard's ESP32 D1 Mini D1 RGB Matrix Shield (see Github link below) which includes some new contacts for the ESP32 GPIO and additional connectors. The parent project will be updated shortly with the design files for this version.

What's in the Box

One orderable unit consists:

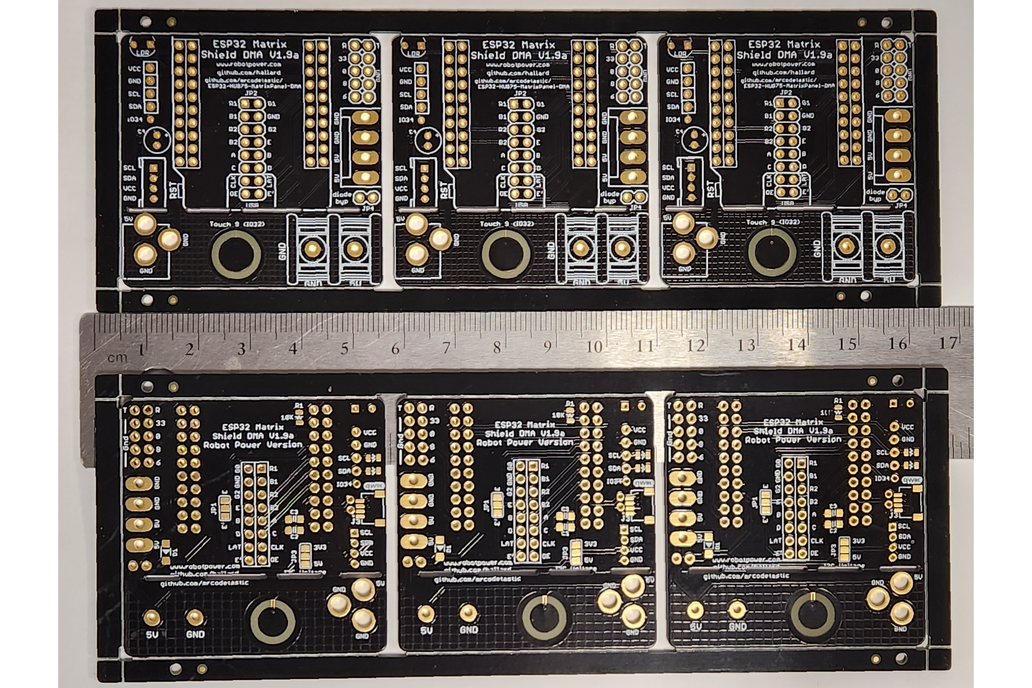

A bare PCB panel of three (3x) PCBs

Why did you make it?

This design has been released as Open Source for several years but required ordering from OSHPark along with potentially several weeks wait to receive the bare PCBs. The user then had to source the needed components and solder them up to create a functioning unit.

Robot Power decided to order these PCBs in bulk, keep them in stock and provide instant shipping to worldwide customers without the wait time for the same price as OSHPark. A kit version and fully assembled units are offered as well (separate listing). All with free shipping in the USA.

What makes it special?

This product is ideal for those wanting to simply implement their LED matrix project using a well-proven design without the long wait time of OSHPark, without the hassle of sourcing the electronic parts needed and without needing to solder small SMD parts. Users can now order these units directly from Robot Power in the form that works best for them.

Specs

Version 1.9a
This is a fork of v1.9 which includes some new contacts for the ESP32 GPIO and additional connectors. The parent project will be updated shortly with the design files for this version.

PCB size: 50mm x 53mm x 20mm (depends on connectors soldered)
Software Library: See links below for high-performance DMA-based ESP32 library support
Examples: See Github sites for examples
