NOTE: THIS LISTING IS FOR BARE-BOARD ONLY w/PARTSLIST. YOU WILL NEED TO SOURCE YOUR OWN COMPONENTS AND ASSEMBLE. A KIT VERSION ALSO AVAILABLE

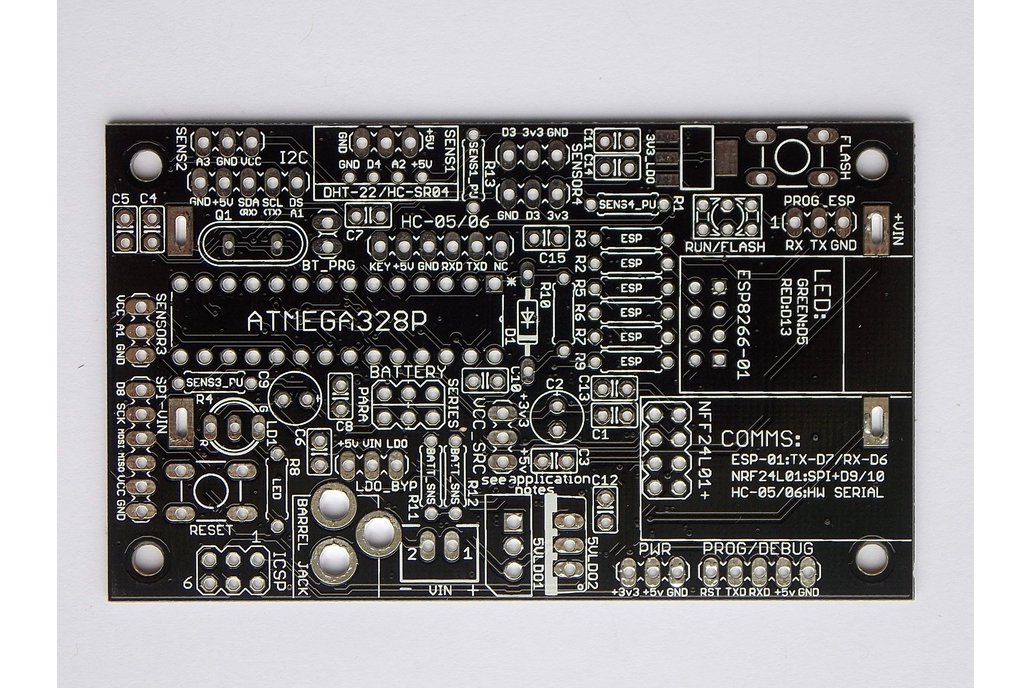

Modular sensor board allows you to quickly and easily deploy multiple 3 and 4 pin sensors, or sensors using SPI or I2C protocols, allowing you to communicate with them using the wireless protocols of your choice.

This is the (L) version with a 3v3 LDO on-board. The (B) version has a 3v3 BOOST converter instead (but only 3 sensor ports), can be powered from supply as low as 2.5Vdc and can be configured for Ultra-low power consumption. Upgrade to the (B) version by selecting the option on the right -->

The configuration and deployment options are limitless.

FEATURES

• ARDUINO IDE COMPATIBLE
• supports up to 4 on-board sensors simultaneously using dedicated 3 and 4 pin sensor ports - more if using I2C or SPI sensors (sensors not included)
• pull-up resistors available on 3 of 4 sensor ports (4.7k resistors included)
• multiple communications protocols; supports WiFi (ESP-01), 2.4Ghz (NRF24L01+), Bluetooth (HC-05/06), or other SPI or I2C-based communications modules
• Atmega328-based; fully supported in Arduino IDE for ease of programming (board type UNO/Genuino), 28-PIN DIP IC for easy removal or replacement
• Arduino UNO/Genuino bootloader pre-loaded
• multiple power options; can use batteries, plug-in power supplies, power packs, etc
• multiple power connectors let you choose your power supply method; barrel connector, 2-pin MOLEX, dual 18650 battery holder (optional)
• dual-18650 battery module can be mounted for mobile deployment (optional)
• onboard red/green LED allows for status signaling
• configurable for LOW POWER; can run several months on 2 18650 batteries when properly configured
• log locally to microSD card installed in SPI port (optional)
• standardized footprint and mounting holes for standardized deployments
• 5-pin Program/Debug port for easy sketch/HEX upload via USB-Serial adapter (optional)
• 6-pin ICSP connector for uploading Ardunio bootloader or sketches/HEX directly via AVRISP programmer (optional)
• 3-pin Progam/Debug port for ESP-8266; allows for firmware updates
• RESET button
• flash button for ESP-8266, with slide switch to enable DEBUG mode
• jumper to put HC-05/06 in program mode (if supported by module)

DETAILS

Sensors

4 dedicated sensor ports (3 on B version) allow for multiple sensor options (sensors not included)

• 3 sensor ports can be configured with pull-up resistors (2 on B version), sensor port 1 can also be configured with a capacitor
• Supports 3.3v and 5V sensors - VCC voltage configurable via jumper

Dedicated ports for I2C and SPI - allows you to add on communications modules, microSD card modules, RTC modules, ETC:

• Supports optional microSD card module (SPI) for logging data locally MicroSD (module not included)
• Supports optional I2C RTC module for keeping logged data in sync (module not included)
• Supports virtually any I2C of SPI module of your choice; check module pin configuration for compatibility

Power

• Two 5V LDO footprints to accommodate wide range of 5V LDO ICs for maximum voltage flexibility; select a recommended 5VLDO: MCP1826S, or MC33269T; use your own preferred LDO, or leave it out and run the board at 3.3 volts
• On-board 3.3v LDO supplies 800ma
• Optional 3.3v BOOST converter supplies 800ma, can be powered by 2.5Vdc, and can be disabled during sleep mode for maximum power savings
• VCC can be set to 5v, 3.3v, via VCC_SRC jumper
• optional dual-18650 battery holder 2 x 18650 can be mounted to bottom of board, creating a mobile sensor unit for quick or temporary deployments. Can be configured for SERIAL or PARALLEL operation. 5VLDO not required for parallel battery mode
• LDO_BYP jumper allows for direct power, bypassing 5V LDO. Set to +5V to apply VIN (max 5VDC) directly to 5V rail
• Standard 2.1mm barrel jack, supply up to 20VDC with appropriate 5VLDO
• 2-pin, 2.54mm MOLEX connector, supply up to 20VDC with appropriate 5VLDO
• apply up to 5V directly to VIN or 5V rail, no 5V LDO required
• 3-pin PWR header for sourcing or applying 5V, 3v3, or GND

Communications

Supports WIFI, Bluetooth, and 2.4Ghz (NRF24L01+), or any SPI or I2C-based communications modules

• Dedicated port for ESP8266 Serial Wifi module, model ESP-01 module ESP-01 (module not included)
• Dedicated port for NRF24l01+ 2.4Ghz wireless transceiver module; Standard Version or With External Antenna (module not included)
• Dedicated port for HC-05 or HC-06 Serial Bluetooth module HC-05 (module not included)

5-Pin Dedicated Program/Debug interface

• You can use a standard USB-Serial adapter to program/debug the board Available Here (Arduino IDE Compatible)

6-pin ICSP Header

• You can use an AVRISP programmer to load the Arduino bootloader or upload HEX files 6-PIN AvrISP or 10-PIN AvrISP (both Arduino IDE Compatible)

Dimensions

• 50mm x 84.5mm outline
• mounting hole spacing 41.5mm x 76mm
