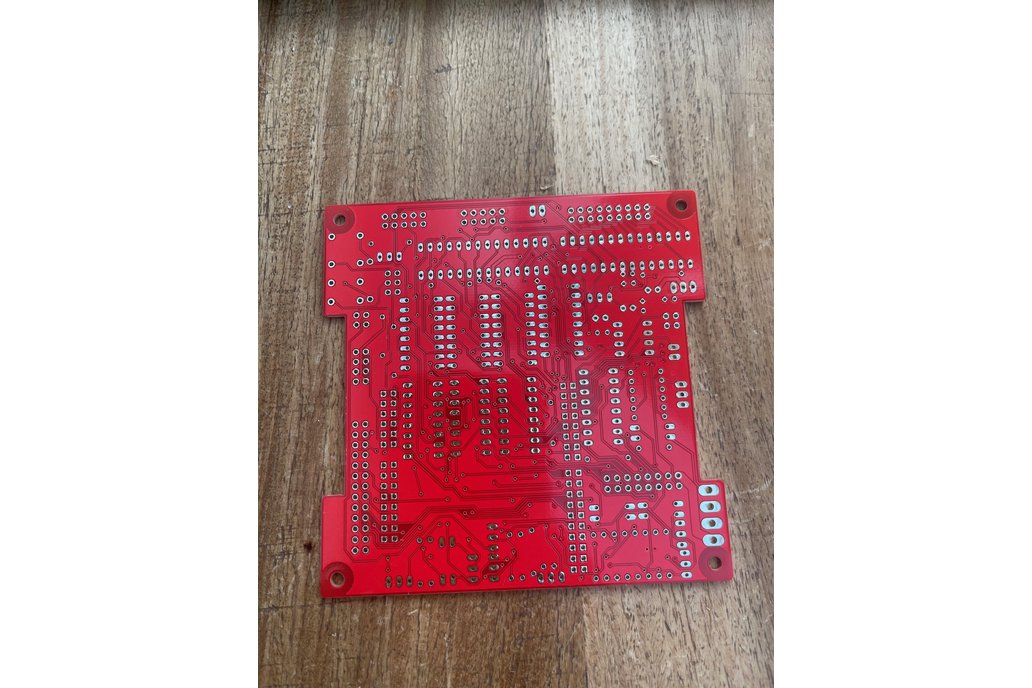

Pinscape unpopulated board.

Surplus to needs, I needed one for my Virtual pinball machine.

The Pinscape Expansion Board is a companion project to the Pinscape Controller with the goal of creating an all-in-one I/O controller for virtual pin cabs. The project consists of a set of printed circuit boards (PCBs) that provide plenty of powered outputs for feedback devices, connections for buttons and sensors, and some specialized pin cab functionality.

The Pinscape Controller software running on the standalone KL25Z offers most of the input functions by itself, with no need for the expansion board. The big thing the expansion board adds is feedback device outputs, and lots of them. The board uses dedicated PWM controller chips to break free of the KL25Z's small set of PWM ports, and adds power booster circuitry capable of driving most feedback devices directly. The basic setup has 65 outputs, and you can add even more by plugging in additional output boards. The expansion board also makes the basic wiring a lot easier and cleaner by grouping related functions into separate connectors.
