What is it?

Arduino Falcon Board is an Arduino Pro Mini Based industrial control board. It is compact-sized. It has the most needed features for home automation and industrial applications.

Why did you make it?

A lot of people make control applications with Arduino. They generally use relay boards, input boards, ESP8266, or Bluetooth modules. This board has these features on a single PCB with an embedded Arduino Pro-Mini. Easy to develop applications, less setup time, less wiring mess.

Applications

• Perfect for home automation
• Perfect for machine automation
• Agricultural automation
• PLC replacement for low budget projects
• CNC IO (Input-Output) Boards

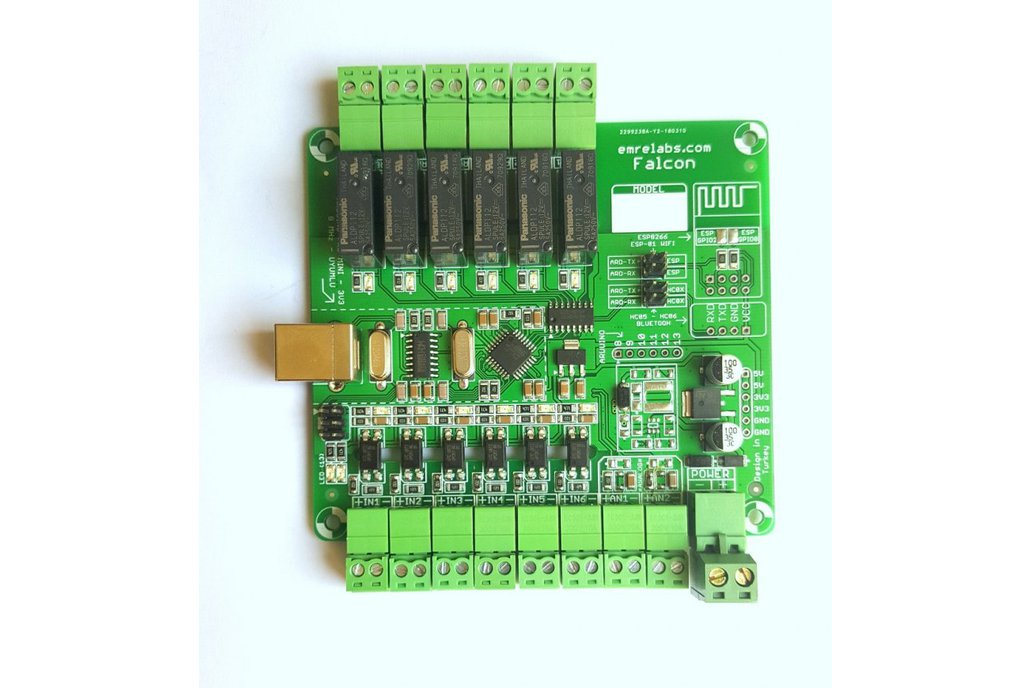

Board Specification

• Embedded Arduino Pro Mini Board (3V3 - 8MHz)
• Embedded CH340G USB-Serial converter (USB Connector)
• 6 pcs relayed outputs (brand Panasonic 5 Amps related)
• 6 pcs optically isolated inputs (Optocoupler)
• There are LEDs on each input and output to observe actions
• There are LEDs for observing input and output actions
• 2 pcs analog input (0 - 3.3V)
• 6 pcs digital user IO's
• Optional ESP8266 wi-fi pinouts
• Optional HC05-HC06 Bluetooth pinouts
• ICSP port
• 4 pcs screw holes for easy installation
• Compact design (Dimensions: 90mm x 100mm)
• Arduino library attached

Attention

• The product package does not include ESP8266 and HC05-HC06 modules.
• ESP8266 and HC05-HC06 modules cannot be used at the same time (because the Arduino pro-mini has only one serial port).
