Applications

• Enable fast charge for your phone while using Android Auto and Car Play. Reduce charge time and phone temperature. Require user to have a car charger that support USB-C to USB-C Power Delivery. If your charger has USB-C output, it should support Power Delivery (PD)

• Allow power down for AAWireless with USB port with always-on functionality. Spliting the power supply to a normal USB port that will turn off with your car while allow data to pass through from AAWireless to your head-unit. Require your AAWireless to have USB-C connector.

Note: Using 1ft cable from charger to adapter board will give you the best aesthetic and ease of cable management. From adapter USB-C out, any good quality cable less than 10 feet will work. You can get the 25cm (10") red cable from the demo..

Note: Shipment after September 15, 2024 will have orange USB-C connector and lighter gray color case.

Recommend cable:

• 3ft Anker Powerline USB C to C
• 3ft Anker Generic USB C to C

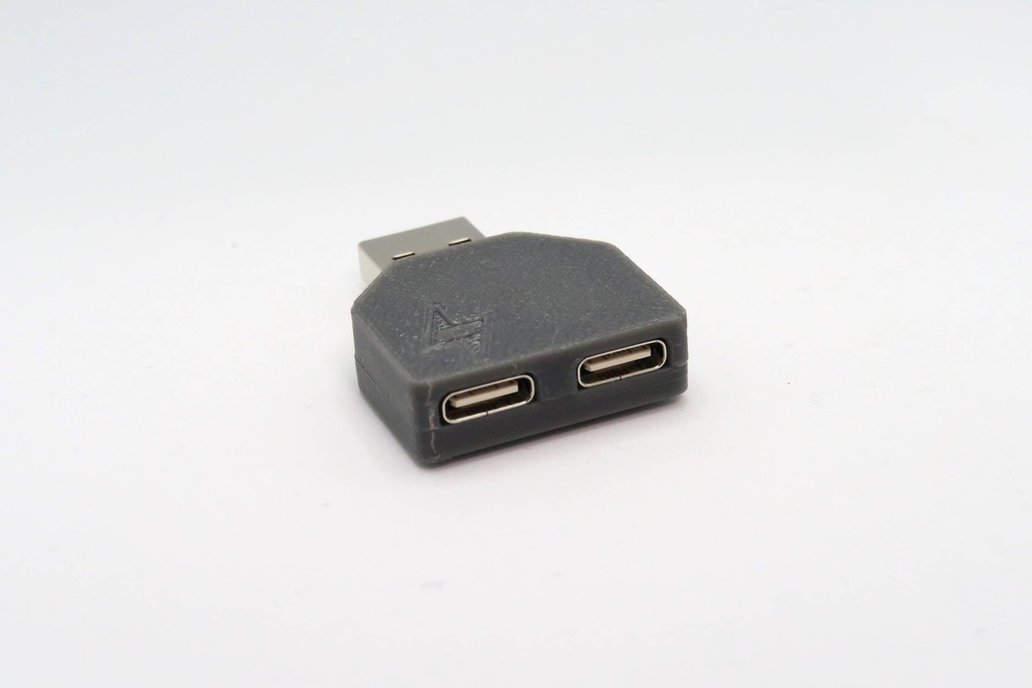

Design:

• USB A: Plug into your Android Auto/Car Play port
• USB C (marked): Connect to your charger via USB-C to USB-C
• USB C out: Connect to your mobile devices

Case material: PETG - Good up to 70C or 158F for automotive use in a mild summer month.

List of tested devices:

• Samsung S23/Ultra
• Samsung S22/Ultra
• Samsung S21/Ultra
• Samsung Galaxy S20+
• Samsung Galaxy S10
• Samsung Galaxy S8
• iPhone 14 (Pro/Max)
• iPhone 13 (Pro/Max)
• iPhone 12 (Pro/Max)
• iPhone X
• Google Pixel 6 Pro
• Google Pixel 9 Pro

This adapter will not work with iPhone 15/16

Recommended plug order

• Plug adapter to your Android/CarPlay port
• Plug in USB-C power cable from your 12V PD source and to to adapter
• Plug in one end of USB -C Out to the adapter
• Plug in another end of USB-C Out to your phone

Troubleshoot

• Step 1: Rotate one USB-C cable at the adapter. You should see the phone start charging. Now, unplug phone and replug it back in.
• Step 2: Ensure your USB-C power cable is USB-C to USB-C. USB-A to C will not provide quick charge, but only 5V at 1A.
• Step 3: Ensure your USB-C out cable support both data and power. Plug your device into a laptop using the cable and you should see device regconized.

Detail specification

• USB A port supports full-speed/high-speed USB 2.0
• USB C ports support up to 28V at 5A continuous

Schematic

Note: Due to the design of the USB-C Receptacle. You might have to rotate 180 degree the Power plug to have a connection. Do not mix 5A cable and 3A cable for PD, this can cause your 3A cable to fail if pulling too much current.

Frequently asked question

Will it work on iPhone 15/16 with USB-C

Through our testing, USB-C iPhone does not support both fast charge and data at the same time. It will pioritize fast charge over data, thus disconnecting carplay when higher power source is detected.

Which AndroidAuto wireless adapter will work?

We have had positive report on AAWireless which has USB-C input. No USB-A wireless adapter has been tested or reported working from our customer. There should be no other USB-C adapter in between but only the Fast charge adapter here.

Why I got slow charge or no charge at all

Try to rotate one of the USB-C head 180 degree at the adapter. Also make sure that you are using USB-C to USB-C for all cables. USB-A will not work in this application.
