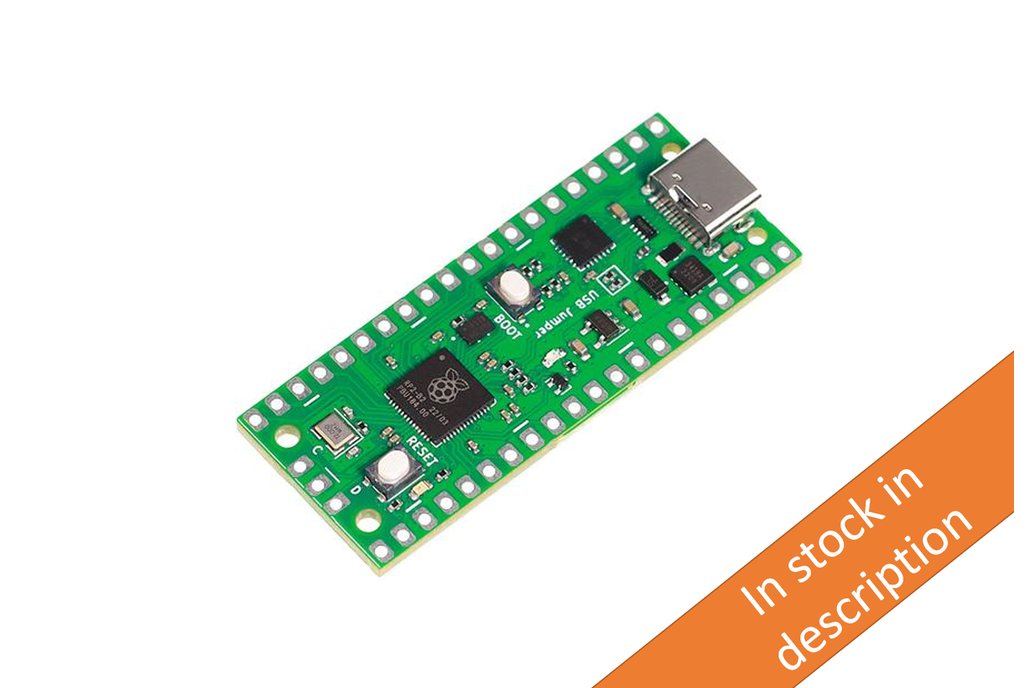

Purchase worldwide: Elecrow <- In stock

Note: All shipments now include a straight header and USB breakout header. Not include: USB-C Splitter

Links:

• PicoPD - Documentation
• AP33772_CPP Library
• PicoPD - How-to with Arduino IDE
• Enable Serial debug on PicoPD

Introduction

Why can't we just utilize laying around USB-C wall plugs to prototype higher voltage devices? PicoPD will help you negotiate the voltage from your USB PD wall plug/power bank while still retaining the full functionality of RP2040. With the right charger with PD3.1, this device also can negotiate for 5A at 5V.

Application

• Motor control
• Home automation
• LED Driver
• Battery charger
• Heater control

Power

• Capable of USB PD2.0 Fixed Power of 5, 9, 12, 15, or 20 V at a maximum of 5 A (100W max)
• Capable of USB PD3.0 PPS provides 3.3V-21V output in 20mV
• USB Type-C port (for power delivery and programming)
• USB-C current/voltage reading build in on circuit
• ESD protection on D+/D-/CC1/CC2 pins
• Update V1.2: 200mA Low drop-out LDO

Microcontroller

• RP2040 flexible clock running up to 133 MHz
• 264kB on-chip SRAM
• 16MB on-board QSPI flash

LEDs

• Red - Power indicator
• Green - User controllable - GPIO 25

Reset button

Boot button

Programming: Through USB-C, USB header, or SWD

Project page: https://hackaday.io/project/192576-picopd-bring-usb-pd30-to-rp2040-chip

Example project: https://hackaday.io/page/21022-variable-power-supply-with-usb-c-pps-picopd

Keyword: AP33772, AP33772 Evaluation board, AP33772 Eval
