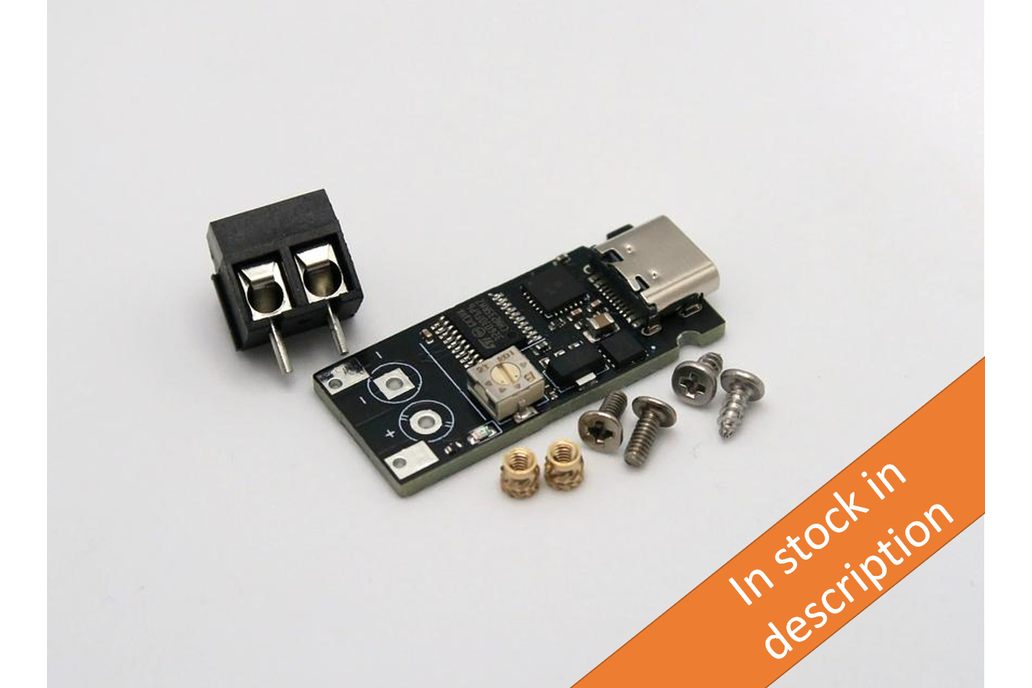

A much simplified USB-C PD and PPS trigger board. Allow users to select arbitrary voltage from PPS-capable power brick via potentiometer
Designed by CentyLab LLC in United States of America
This product is no longer available for sale.
The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.
Purchase worldwide: Elecrow <- In stock Newer version: PPSTrigger V1.2 Note: Always test the output voltage before plugging in your device. V1.1: With mounting slot and screws. As of March 2023, all…
Read More…Note: Always test the output voltage before plugging in your device.
V1.1: With mounting slot and screws. As of March 2023, all Lectronz stock has been upgraded to better ESD protection.
STEP file for PPSTrigger V1.0
STEP file for PPSTrigger V1.1
Tested USB PD3.0 and USB PD+PPS from 3.3V to 20V @ 5A continuous. Actual voltage and current output depend on your charger.
Please check the recommended charger if you don't already have one.
Many Anker charger/power banks do not include PPS capability in their marketing document. Their IQ3 and IQ4 standard support PPS up to at least 11V. IQ1 and IQ2 has not been tested.
V1.1 Dimension. V1.0 is the same without mounting screw cutout.
