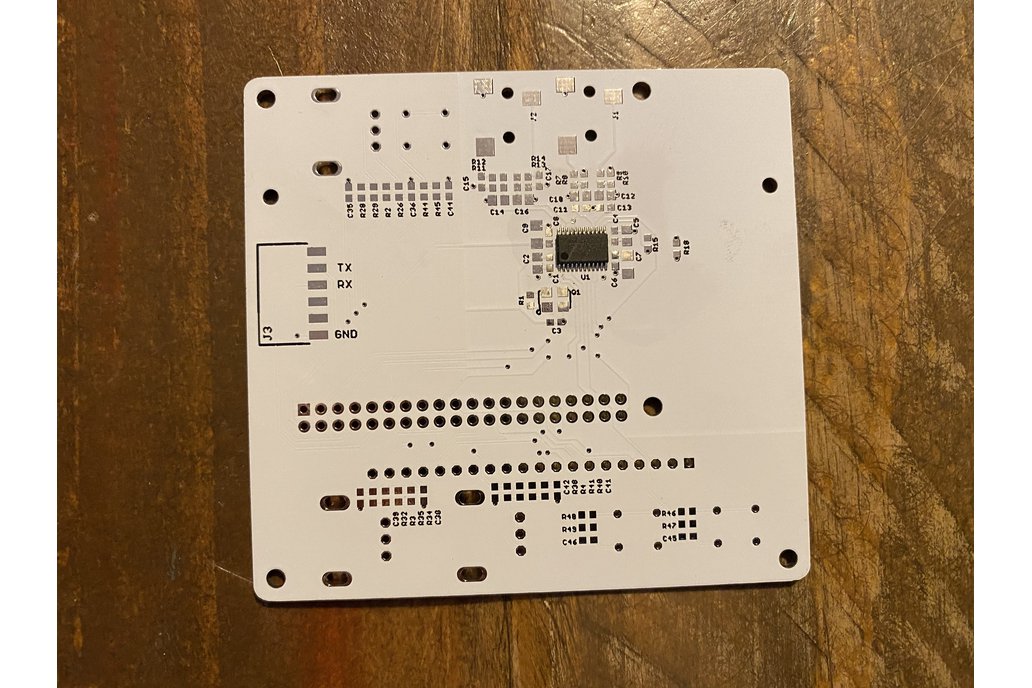

Brand new Monome Norns Shield PCB with the hard to get CS4270-CZZ integrated circuit chip installed.

High quality lead free HASL finish and beautiful white solder mask.

If you are looking at this listing, odds are that you are already familiar with the Monome Norns.

This is a fantastic open source instrument that defies definition. It runs supercollider scripts and allows the user to create incredible audio creations.

This listing is for the PCB with the CS4270-CZZ ic only and will require soldering of both through hole and smd components.

Due to the nature of this being a kit that needs additional fabrication to be used, no returns can be accepted for this item.

The bill of materials and information on building yours can be found on GitHub by searching Norns-shield.

minimal/tiny open-source/DIY shield for Raspberry Pi boards, providing hardware compatibility with the ecosystem.

• audio codec: CS4270-CZZ

• audio jacks: 3.5mm stereo in/out, line level

• OLED: NHD-2.7-12864WDW3

• 3x pushbuttons, 3x rotary encoders

see the full bill of materials on Octopart.

I wanted to include links up to the information pages, but they’re not allowed in the listing.

norns shield

a DIY circuit which extends a normal Raspberry Pi, turning it into a norns.

requirements after the board is populated with components:

• Raspberry Pi 3B($35) or 3B+ is also fine. important! other models are not compatible.

• sd card - use a high quality brand

• power supply - the Pi3B has a micro-USB power port and requires . you can also use a portable USB battery if it’s sufficiently large.

Thanks for looking!
