PIC32MZ2048EF PIM breakout board

Name: PIC32MZ2048EF PIM breakout board
SKU: 8803
Price: 8.00 USD
Availability: Discontinued

minimal stand-alone PIC32MZ2048EF development system breakout board

Designed by circuit4u in United States of America

Product Retired

This product is no longer available for sale.

The seller may be offering an improved version or it may be hanging out on the beach, enjoying the retired life.

While you're here, check out these other awesome products for sale!

Visit Store

More From circuit4u:

Hackable Digital Dice with MSP430G2230

circuit4u

$5.00

More From Prototyping & Fabrication

ADNS-9800 Motion Sensor

Joe's Sensors and Sundry

$27.50

Sale

Flipper Zero RGB Mod

Midwest Gadgets LLC

$12.75 $15.00



minimal stand-alone PIC32MZ2048EF development system breakout board

What is it? This breakout board connects to a Microchip PIC32MZ EF PIM module (MA320019). It provides +3.3V power (regulated from USB), programming header, and a USB connection. Once connected to a …

What is it?

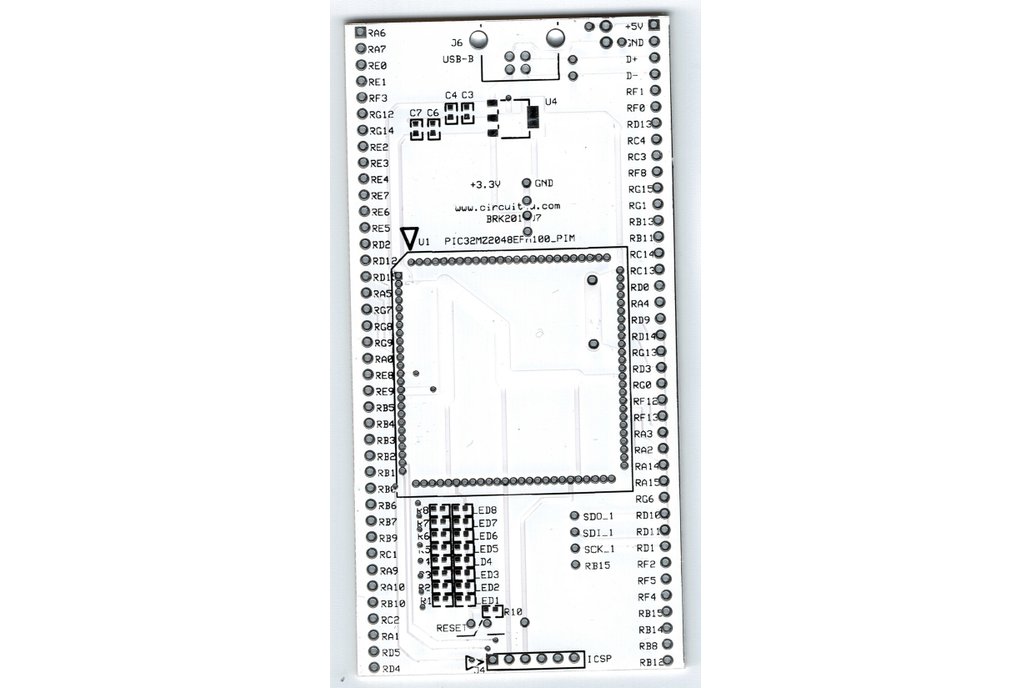

This breakout board connects to a Microchip PIC32MZ EF PIM module (MA320019). It provides +3.3V power (regulated from USB), programming header, and a USB connection.

Once connected to a PICKIT3 programmer, it is a minimal, yet full-fledged development system for you to experience the latest 200MHz MIPS MCU, that is the PIC32MZ series.

In terms of the software, Microchip provides full IDE with free XC32 compiler, and supporting libraries--Harmony framework.

Why did you make it?

The earlier breakout board design was for PIC32MZECH series. Due to its dwelling errata, Microchip now recommends this latest chip (with floating point support) PICM32MZEF.

What makes it special?

This breakout has the least amount of external components, and has all the pins wired to 0.1" header. It gives user the most flexibility, yet provides a fully functional development environment.
