The Air Quality Wing is a breakout board to help you sense the air quality of your home or workspace using feather compatible boards.
Designed by Circuit Dojo in United States of America
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More
The Problem As wildfires ravage parts of the USA and smog has loomed in our skies it’s become more important than ever to make sure you’re breathing clean air. Some folks may just go buy an air purif…
Read More…As wildfires ravage parts of the USA and smog has loomed in our skies it’s become more important than ever to make sure you’re breathing clean air. Some folks may just go buy an air purifier. But, how do you know it works? How do you know if it’s powerful enough to protect your whole space?
Like a scientist, you can test it with an Air Quality Wing.
The Air Quality Wing is an all-in-one air quality sensor and development board. It brings together a trio of sensors to give you as many data points as possible. That way, there won’t be anything missing when you go to measure the air inside your home or workplace.
Here's what's included:

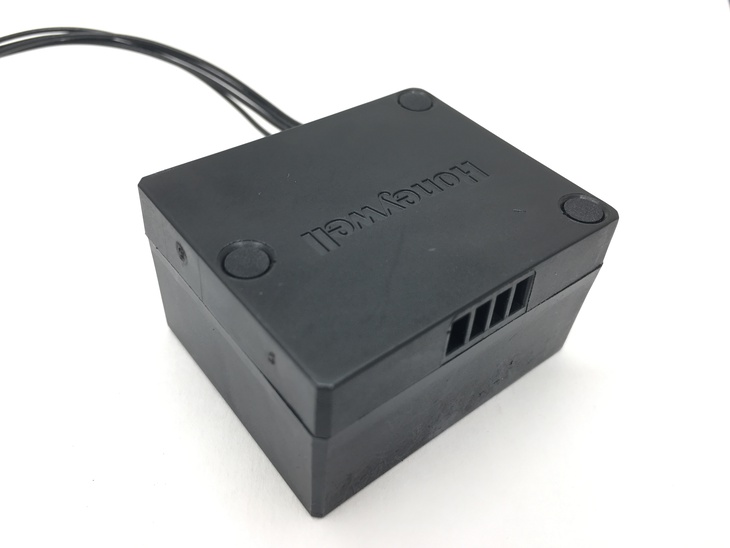

The most important sensor is the Honeywell HPMA115S0 dust sensor (available as a purchase option). This sensor counts the concentration of potentially harmful particulates in the air. It can detect both large particles 10µm in diameter and smaller ones less than 2.5µm in diameter. These readings are known as PM10 and PM2.5 respectively.
Second to that, is the Sensirion SGP40. This senses volatile organic compounds (VOCs). These types of readings are useful in places where there may be combustion. (Think stoves, furnaces, etc) It can act as an early warning mechanism. That way you stay safe, happy and healthy!
Finally, the Sensirion SHTC3 temperature and humidity sensor. These readings can be used on their own. Additionally they’re used by the SGP40 to compute an accurate TVOC measurement.
No outlet nearby where you want to measure? No problem!
You can easily plug in almost any lithium polymer battery to your Feather based development board board and use it immediately. The Air Quality Wing also has extra circuitry that allow you to switch between USB and battery without user input.

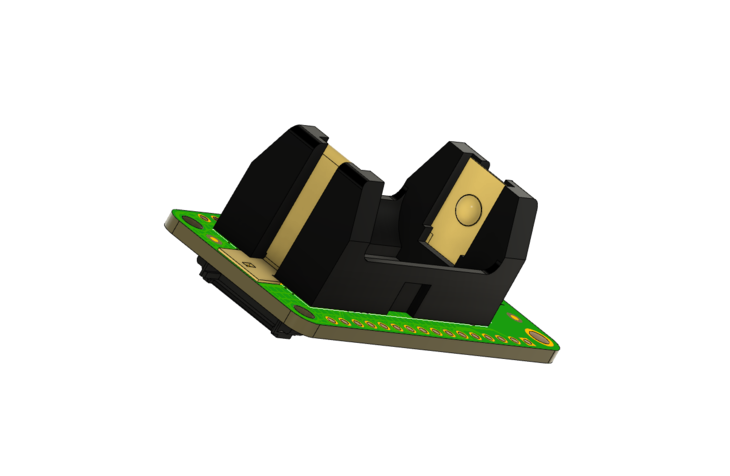

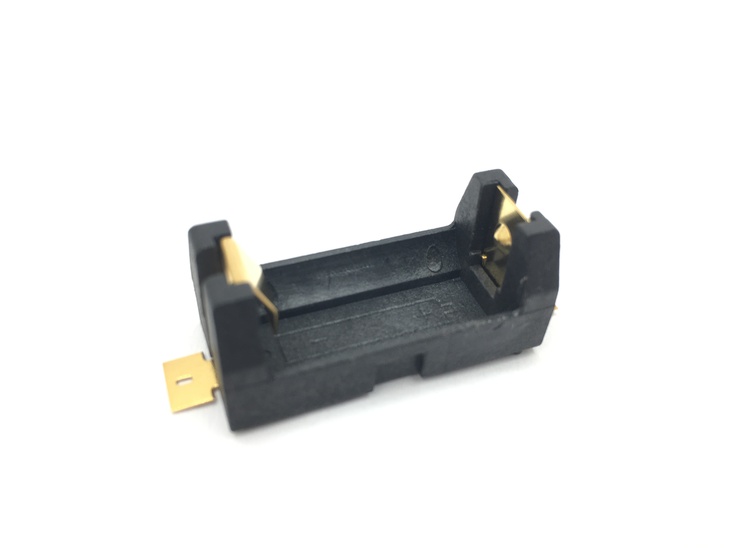

The Air Quality Wing also features a separate battery backpack which holds a 850mAh CR2 battery.
Simply solder it on and you're good to go!
Please note that an accompanying feather board is required to communicate/use the AQW.
Drivers for Zephyr are nearly complete. Drivers for Embedded Rust are planned. All software and hardware is open source and will have the OSHWA stamp of approval soon!
Here's what folks have said about the Air Quality Wing:
> I have a similar setup I build with sensors off Adafruit and have been thinking of designing my own PCBA to integrate all of them, this saves me the time! Thank you! - Nicholas J
> Thank you for integrating them on a single Featherwing format! - D
> I love what you did to measure the air quality. - C

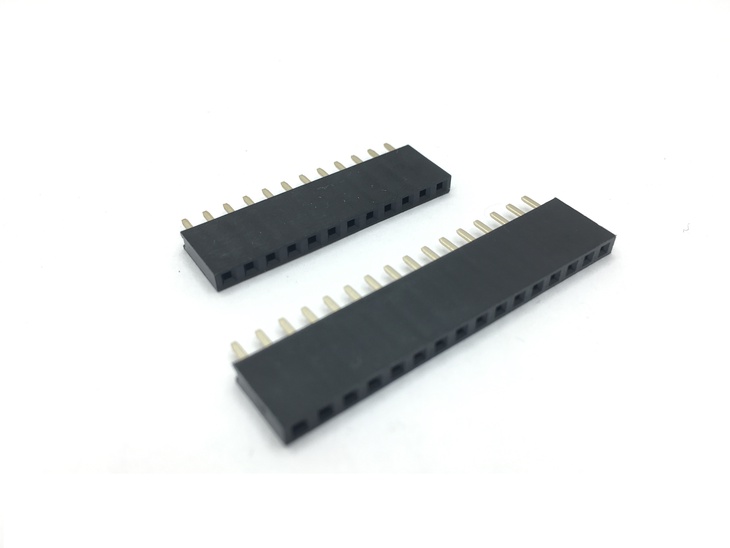

A set of male headers are included but not soldered.
The Air Quality Wing Documentation is now available! Click here to check it out.
