PMW3360 Motion Sensor

Name: PMW3360 Motion Sensor
SKU: 31729
Price: 29.40 USD
Availability: InStock
Rating: 3.67 (3 reviews)

(3 Reviews)

High performance laser motion sensor for detecting distance traveled in X or Y plane

Sold By Joe's Sensors and Sundry




Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

High performance laser motion sensor for detecting distance traveled in X or Y plane

This is an updated version of the one from JACK Enterprises! Now under new management with permission, since he's stopping production. A similar, but higher performance, module offered is the PMW338…

This is an updated version of the one from JACK Enterprises! Now under new management with permission, since he's stopping production.

A similar, but higher performance, module offered is the PMW3389DM

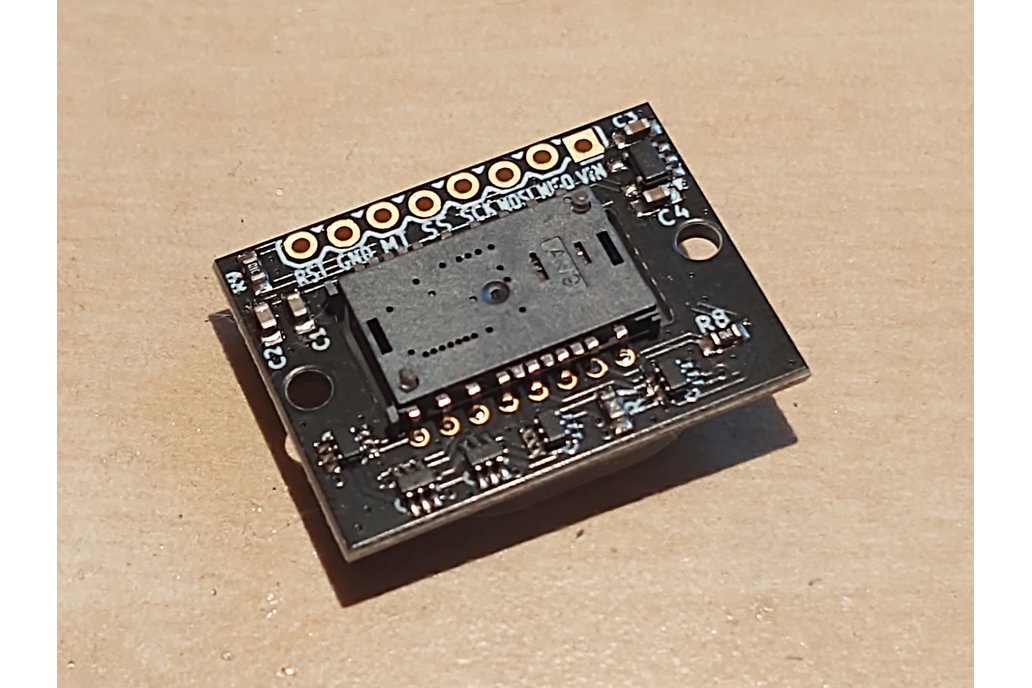

This sensor board offers all the needed components to implement the Pixart PMW3360DM-T2QU high end gaming sensor. High speed motion detection up to 250 IPS.

Features:

On-Board voltage regulator
Fully assembled and tested
3.3V or 5V compatible (Vin voltage sets I/O voltage levels. Tolerates 1.8V up to 5.5V)
Resolution : 100 to 12,000 CPI
Speed/Acceleration : 250 IPS/50g
Illumination : Integrated IR LED
Focusing Lens included
Works with Arduino SPI library
Efficient Interrupt based operation

Applications:

Corded gaming laser mice
Optical trackballs
Motion input devices
Robotics

Pinout:

MISO = MISO
MOSI = MOSI
SS = Slave Select / Chip Select
SCK = SPI Clock
MT = Motion (active low interrupt line)
RST = Reset
GND = Ground
VIN = Voltage in up to +5.5V

Dimensions:

Board Size: 28mm x 21mm
Screw holes: 24mm between centers
Screw hole size: 2.44mm (fits 2-56 screw)
Height: 9.25mm

PMW3360DM-T2QU Datasheet FAQ: Teensy wiring:

VI = 3.3V
MI = MISO0 -or- DIN
MO = MOSI0 -or- DOUT
SC = SCK0 -or- SCK
SS = CS0 -or- CS
MT = Pin 0
GD = GND

Due to the sensitive nature of electronic boards and chips, returns are not accepted. All sales are final.

No country selected, please select your country to see shipping options.

Change Destination Country:

Quantity	Price
1-2	$29.40
3-4	$28.60
5-9	$27.60
10-14	$26.60
15-24	$25.50
25-49	$24.50
50-74	$23.57
75+	$22.99

Review Breakdown

Average Ratings

Product: (3.67)

Documentation: (3.67)

Shipping: (3.67)

Communication: (3.67)

Acan | Oct. 7, 2024

I have not received the parcel, already over 20 days!

Https://www.tindie.com/products/citizenjoe/pmw3360-motion-sensor/, pls help check and chase and inform me when I can receive, thank you.

Response from Joe's Sensors and Sundry | Oct. 8, 2024

Hi there! As I said in messages, international shipping can take a while, especially with the cheaper methods that don't have tracking. If it still has not arrived by the end of the month I can refund you. You can try contacting your local post office as they will be in possession of the parcel at this point

-Joe

Chris | June 25, 2024

Excellent reliable sensor

I've found myself returning for this sensor several times. PCB makes great use of space, and the sensor is top notch. As I'm writing this review, I'm actually planning on purchasing some more.

John | Feb. 15, 2024
