Binary Thermometer - PCB only

Name: Binary Thermometer - PCB only
SKU: 6675
Price: 4.00 USD
Availability: InStock

An Arduino-based (ATMEGA328) 6-bit (LED) binary thermometer

Designed by clovisfritzen in Brazil




Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

An Arduino-based (ATMEGA328) 6-bit (LED) binary thermometer

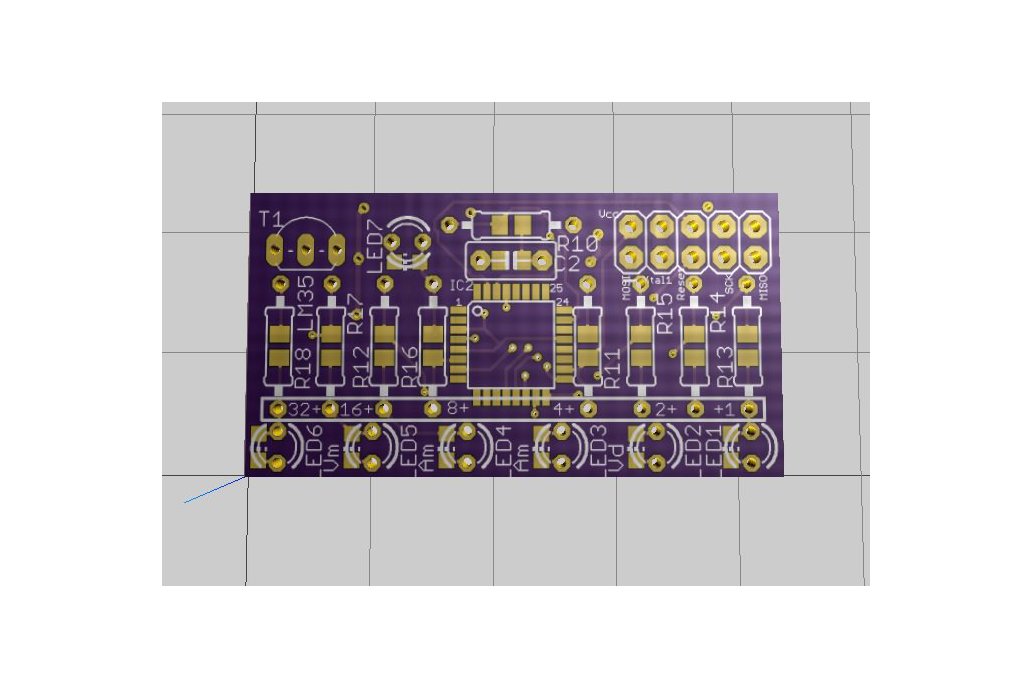

What is it? PCB ONLY This is a fun side-project of mine, which shows the environment temperature on a 6-bit LED string; it is capable of reading temperatures between 0C and 64C (2^6 = 64 Celsius de…

What is it?

PCB ONLY

This is a fun side-project of mine, which shows the environment temperature on a 6-bit LED string; it is capable of reading temperatures between 0C and 64C (2^6 = 64 Celsius degrees) using a LM35 as sensor.

Why did you make it?

I made it because I wanted a quick, cheap and fun way of learning the temperature surrounding my lab bench.

What makes it special?

It can both be a DIY kit (TH parts) or an off-the-shelf simple termometer (SMD parts), depends on what your choice is (it has both TH and SMD footprints for most components).
