...The best Amiga RGB-VGA adapter on the WEB..

What's new?

--> VLR system (vertical line remover) that fix vertical line on your LCD monitor/TV compatible --> VDE system (video distortion enhancement) that improve video quality and background noise --> and remember that is made with original D-SUB DB23 female

History...and future

I have read and received inquiries in this time since I successfully put the VGA adapter made with the original DB23 connector on sale. To date almost 800 units have been sold between Ebay and retrogamer forum and other online channels.

Great success and appreciation for having an original DB23F connector on board (not a cut DB25)

Many of you were bored by those annoying vertical lines that arise with the use of LED matrix (example Benq BL702A). This LCD monitor is one of the few monitors that allows you to almost completely obviate these "vertical bars" by adjusting the various parameters of meù such as the "pixel clock".

But not all LCD monitors / TVs (compatible with 15KHz) have this feature, so the result is images with these annoying vertical stripes which are really bad.

From today this will finally be just a distant memory

With the new VGA ADAPTER with VLR+VDE system you can use any monitor / TV (compatible 15KHz) without having to change the image parameters (pixel clock, etc.) Furthermore, the saturation / color /distortion of the RGB components is improved with the new adapter (you can see it in the second photo VDE system )

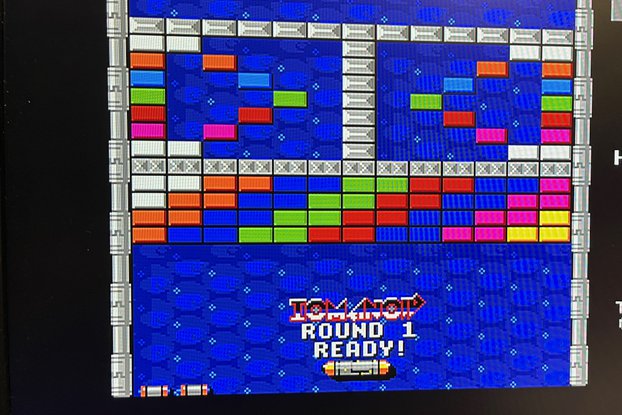

Graphic comparison Please check the pictures...asap I'll upload more pictures

STANDARD VGA ADPTER (on BENQ BL702A) Vs ADAPTER VGA with VLR (on BENQ BL702A)

This is the ONLY VIDEO ADAPTER realized on PCB board (buffered) + vertical line remover (VLR) made with ORIGINAL DB23 Female : no DB25 cutted!

>>> ...take your time and check all the pictures...check the real and original DB23 PIN <<<

ADAPTER FEATURES

1) D-SUB DB23-pin female (ORIGINAL COMMODORE) to DB15-pin HD female. 2) All connection realized with high quality PCB 3) Backshell cover adapter is DB25-DB15 4) Buffered version with VLR (vertical line remover) + VDE (video distortion enhancement)

COMPATIBILITY

This adapter allows you to connect a VGA/SVGA* or Multiscan monitor to your Amiga RGB port. This is fully buffered for Commodore-Amiga 500, 500+, 600, 1200 or "big box" Amiga systems (also for A4000, just ask me in order to cut little bit the cover shell) This adapter allows you to use the following display modes:

DBLPal

DBLNTSC

Euro 36Hz and 72Hz

Super72

Multiscan/Productivity

VGA Only

IMPORTANT NOTE:

*SVGA monitor must be able to sync the Amiga's 15Khz signal (most CRT monitors have no problem doing this). Some LCD monitors such as DELL U2410 or BENQ BL702A sync down and support 15Khz- check your monitor specifications for more information. If your monitor does not support 15KHz, then you will not get a picture until the software drivers are installed and workbench is loaded.
