Selectable Precision Resistor

Name: Selectable Precision Resistor
SKU: 35288
Price: 79.00 USD
Availability: InStock

A versatile four-terminal resistance standard. One of six precision resistors can be selected using a rotary switch.

Designed by Code7 in Australia

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

A versatile four-terminal resistance standard. One of six precision resistors can be selected using a rotary switch.

Selectable Precision Resistor A multi-value resistance standard that allows users to choose from six precision resistors. Resistor values are easily selected using a rotary switch. All values support…

Selectable Precision Resistor

A multi-value resistance standard that allows users to choose from six precision resistors. Resistor values are easily selected using a rotary switch. All values support four-terminal measurements, making it an ideal tool for verifying multimeter accuracy or as a precision current shunt.

Specifications

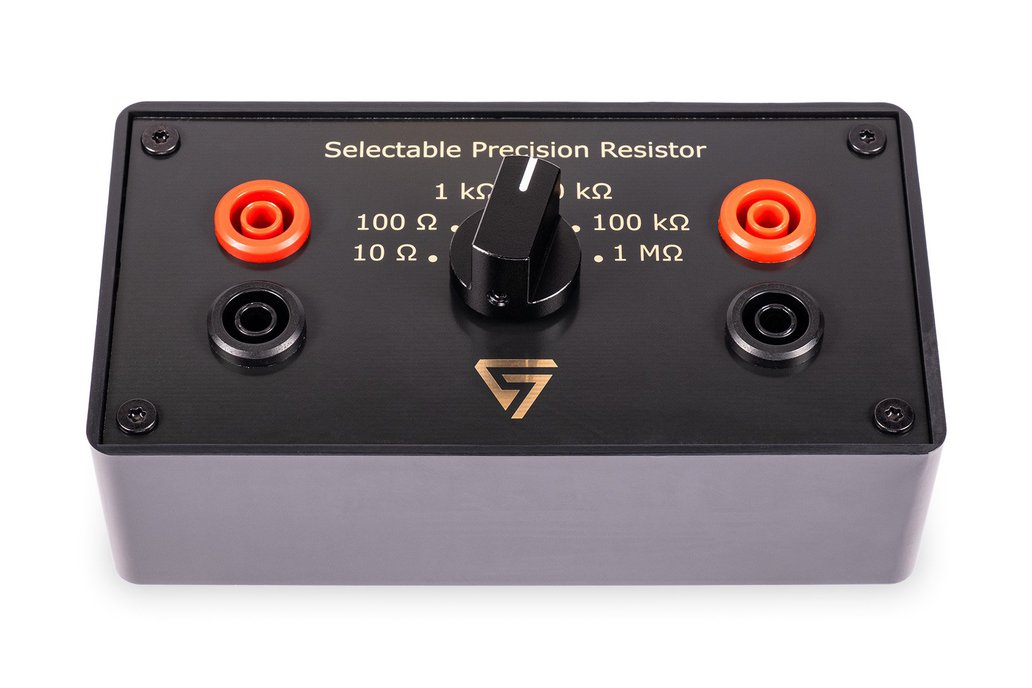

Selectable Precision Resistor is available in two versions: Standard and Pro. The Standard version is housed in a white enclosure, while the Pro version comes in a black enclosure. The Pro version features higher precision resistors, increased mechanical isolation, and gold-plated connections.

Value	Standard Tolerance	Standard TCR	Pro Tolerance	Pro TCR
10 Ω	0.05%	10 ppm/°C	0.01%	5 ppm/°C
100 Ω	0.01%	10 ppm/°C	0.01%	20 ppm/°C
1 kΩ	0.01%	10 ppm/°C	0.01%	10 ppm/°C
10 kΩ	0.01%	10 ppm/°C	0.01%	10 ppm/°C
100 kΩ	0.01%	10 ppm/°C	0.01%	10 ppm/°C
1 MΩ	0.05%	10 ppm/°C	0.01%	5 ppm/°C

Verify Multimeter Accuracy

Selectable Precision Resistor is perfect for checking the accuracy of multimeter resistance ranges. When performing two-wire measurements, cable and connection resistance can be subtracted by first measuring between terminals of the same colour. Multimeters that support a relative mode can perform this calculation automatically. Using CheckOhm, it's easy to check if measurements meet a multimeter's accuracy specification.

Precision Current Shunt

Selectable Precision Resistor can also be used as a precision current shunt for accurately measuring small currents. Passing a small current through one set of terminals while measuring the voltage across the other terminals allows the current to be calculated with Ohm's law. To maintain accuracy and avoid damage, ensure the power dissipated is limited to 100 mW.
