What is it?

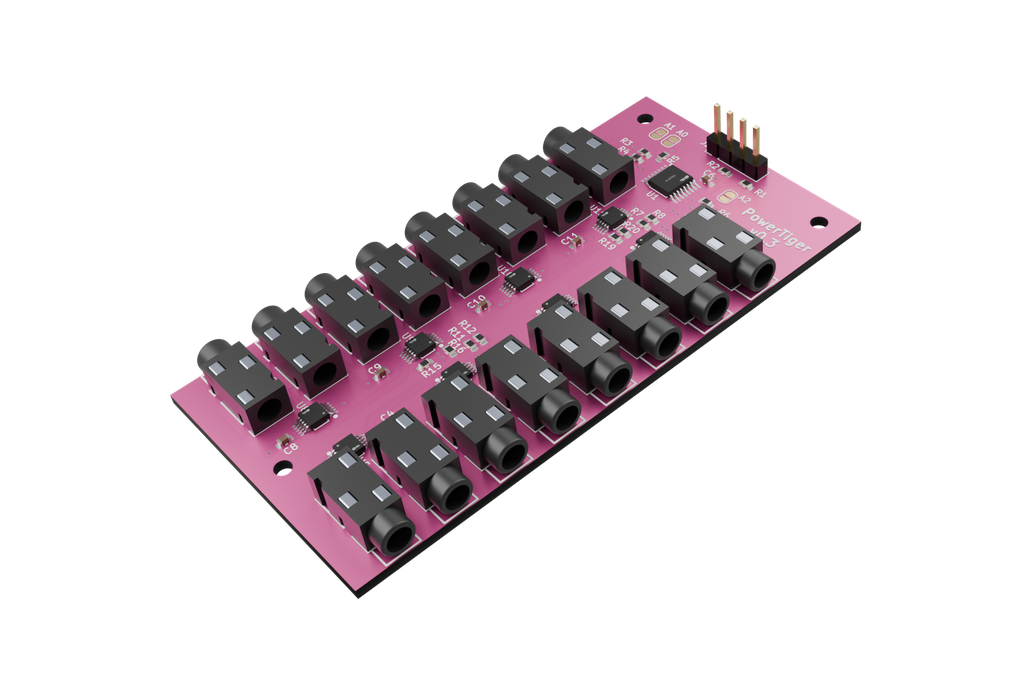

The PowerTiger is an advanced, open-source energy monitoring module designed to provide precise tracking and measurement of household power consumption. Equipped to handle up to 16 distinct power terminals, this module offers comprehensive insights into your energy usage.

Designed for seamless integration with any MCU supporting the I2C interface, PowerTiger is compatible with SCT-013 CT sensors for accurate current measurement. While it has been thoroughly tested with the Raspberry Pi Pico W, it is also adaptable for use with other MCU boards.

PowerTiger is perfect for anyone looking to enhance their energy monitoring capabilities with a versatile, reliable, and easily customizable solution.

Why did you make it?

Existing DIY breakout boards limit the integration of CT sensors to just a few devices, often requiring complex setups and extensive use of GPIO pins on MCUs. This limitation makes monitoring more than 4 devices challenging and cumbersome. PowerTiger was developed to address this gap by offering a solution that simplifies integration with any MCU featuring an I2C port. With the ability to connect up to 16 power terminals and support for up to 8 modules in parallel on the same I2C wires, PowerTiger minimizes wiring complexity and eliminates the need for additional circuits. This design makes it easier to expand monitoring capabilities and efficiently manage multiple devices.

What makes it special?

PowerTiger excels with its unique capabilities in energy monitoring. Not only does it support up to 16 power terminals for comprehensive device monitoring, but it also allows for up to 8 modules to be integrated in parallel with the same MCU using the same I2C wires. This is made possible by the modules’ solderable address pads, which enable each module to be assigned a unique address. This feature simplifies the expansion of monitoring setups and reduces the complexity of wiring. Its compatibility with SCT-013 CT sensors ensures precise measurements, while the open-source design provides flexibility and customization. Whether you’re a DIY enthusiast or a professional, PowerTiger offers a versatile and efficient solution for advanced energy monitoring.
