The OneChipBook-12 is an FPGA development platform centered around the Cyclone EP1C12Q core

Designed by 8086YES! in China

OneChipBook -12-A FPGA development platform 1

OneChipBook -12-A FPGA development platform 2

OneChipBook -12-A FPGA development platform 3

OneChipBook -12-A FPGA development platform 4

OneChipBook -12-A FPGA development platform 5

OneChipBook -12-A FPGA development platform 6

OneChipBook -12-A FPGA development platform 7

OneChipBook -12-A FPGA development platform 8

Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

WWW.8086CPU.COM

The OneChipBook-12 is an FPGA development platform centered around the Cyclone EP1C12Q core

The package includes: OneChipBook-12-A main unit × 1,USB Type-C cable × 1 Important Notice: The OneChipBook is a blank FPGA development platform with no predefined functionalities. It is exclusive…

The package includes:

OneChipBook-12-A main unit × 1,USB Type-C cable × 1

Important Notice:

The OneChipBook is a blank FPGA development platform with no predefined functionalities. It is exclusively designed for FPGA engineers or individuals actively learning hardware programming.

Before placing an order, please ensure that you have reviewed the OneChipBOOK-12_Technical_Reference and confirmed your capability to develop and utilize FPGA.

Overview

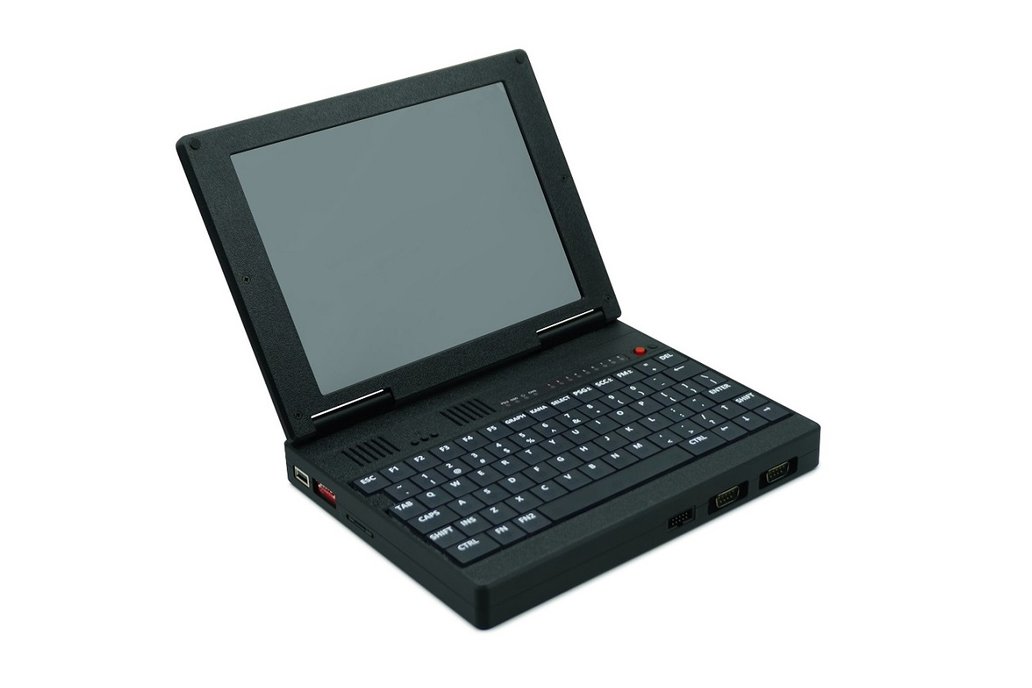

The OneChipBook-12 is an FPGA development platform centered around the Cyclone EP1C12Q core. It integrates a VGA monitor(LCD form iPAD2), PS/2 mechanical keyboard, battery, and I/O ports. All peripheral devices are connected to the FPGA's general-purpose I/O pins, allowing users to control the entire system by developing for a single chip without complex interface design. OneChipBook-12 has two order numbers. They share identical keyboard scan codes, with the only difference being the keyboard silkscreen markings.

OneChipBook -12 (12k Les) - A (Keyboard layout A)

OneChipBook -12 (12k Les) - B (Keyboard layout B)

Features

FPGA: Cyclone EP1C12Q240
12,060 Les
239,616 bits RAM
32MB SDRAM
1024x768 VGA monitor
VGA/S-Video/CVBS Output interface
Mechanical keyboard (PS/2)/ Backlight
Stereo speakers
Type-C charging port
Lithium battery
Expansion Bus Support

No country selected, please select your country to see shipping options.

Change Destination Country:

Review Breakdown

Average Ratings

Product: (3.00)

Documentation: (2.50)

Shipping: (3.00)

Communication: (2.50)

Justin | March 6, 2025

Absolutely amazing build quality!

I was shocked to discover how a 3D printed case could be of such high quality, both in fit and finish. I managed to setup the SD card with the operating system and am still learning how to navigate the system. Now that I can see what can be done I would love to have a version built around the De10 Nano used for the MiSTer FPGA project, it would be great to be able to run those computer cores as a laptop computer.

P.S. The SD card must be formatted FAT16

Akihito | March 4, 2025

偽物のSDカードが入っている

偽物のSDカードが入っている為に、製品が税関で一週間以上止まって、まだ到着しておりません。
正規品を何故入れてないのか分かりません。
良さげな製品だと思ってましたが偽物のSDカードの為全て台無しです。
税関で没収、廃棄されたら保証して頂けるのですかね？

Response from 8086YES! | March 4, 2025

Dear Sir,
We sincerely apologize for the inconvenience caused. The package is indeed currently held at Japanese customs. To clarify, this is a personal DIY product without any trademarked branding, and we did not use counterfeit-brand SD cards. Japanese customs procedures are exceptionally stringent, and the decision to release the package lies entirely at the discretion of the customs officers. As of now, we have not received any official updates from customs authorities.

Please note that we are fully prepared to offer a refund or reshipment immediately.
However, we have not received any communication from you regarding how you would like to handle this matter, which is the key reason the issue remains unresolved.
