THIS WILL NOT WORK FOR X68000 PRO or COMPACT MODELS.

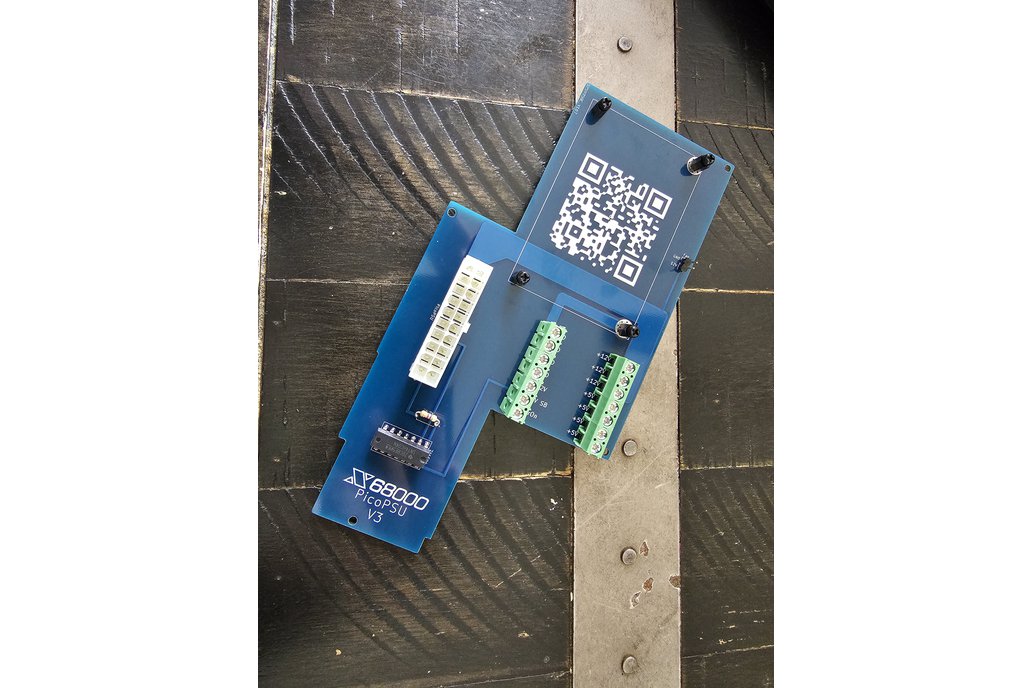

Pico PSU board originally designed by Mattsoft.

The original documentation can be found here.

https://github.com/mattsoft/X68K_Pico_PSU_v2

Instructions:

Plug in your PicoPSU and attached the +12VDC and ground to the corresponding terminals on the AC-DC converter. This can be found on the datasheets. Generally you will want to cut the barrel jack connector off of the Pico PSU and solder it to the output terminals from the AC/DC converter.

It is recommended to only use the Pico PSU sold by minibox.

https://www.mini-itx.com/~picoPSU-120

Recommended AC/DC converters

VMS-100C-12 EPP-120S-12 RPS-120S-12 VMS-120C-12
