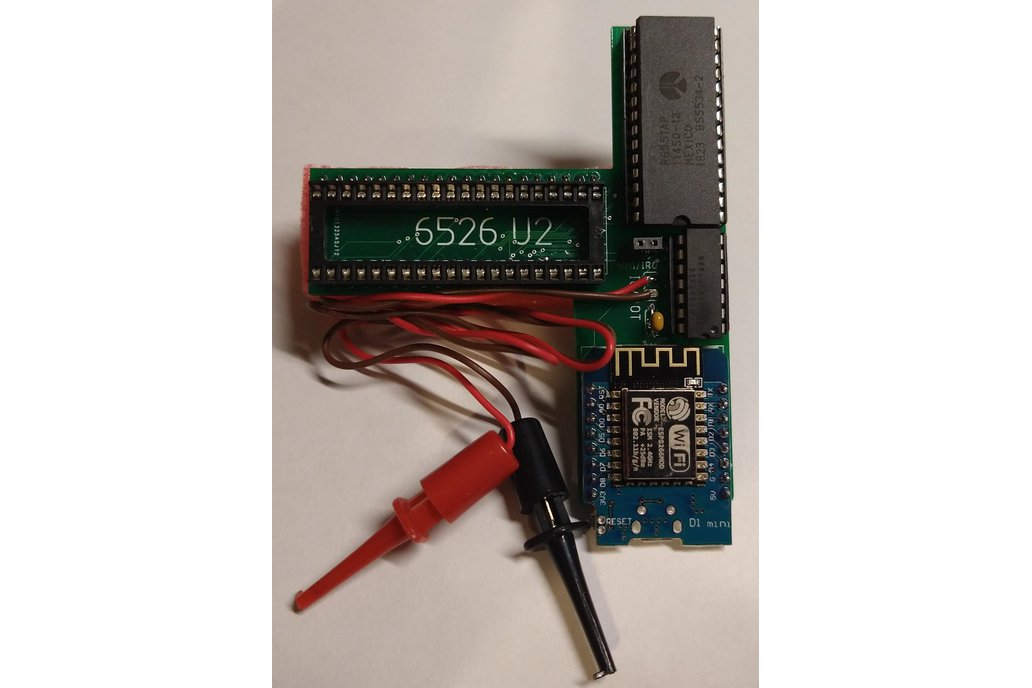

Internal Swiftlink compatible Wifi Modem for the Commodore 64 computer with the non short board. Goes into the U2 6526 socket. Tested with 250466 and 250407 Motherboards. Does NOT include a 6526 CIA Chip. Remove your original chip from the motherboard and install into the socket on the Swift-L board.

• Supports DE00, DF00 Addresses on any board and D700 addresses using the optional D700 Decoder board..
• Remove the 6526 at u2 (near the user port)
• Install your original 6526 into the Swift-T board, and then the board in the U2 socket.
• Run one of the flying leads to cart pin 6 (DOT Clock)

• Run the other flying lead to the following for the different addresses.

• Cart pin 7 = DE00

• Cart pin 10 = DF00

Or add the optional D700 decoder board that replaced U15. (74LS139)

Currently tested and working with CCGMS, and Striketerm. Should work with any Swiftlink compatible Terminal or BBS software. Leaves the cartridge port open for REU or other devices. (As long as no address conflicts)

Multiples can be made quickly, so if you need more than stock shows, feel free to ask.

If your location isn't listed as a shipping option, just click ask me a question, Tell me where you are, and I'll get it added for you.
