SIM7600G-H 4G modem board, in Raspberry Pi size, global usable。
Designed by david in China
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More
This is the document for SIM7600G-H 4G-modem board. Introduction Features of this board: Same dimension as Raspberry Pi, easily stacked up with Raspberry Pi. Support all functions provided by SIM…
Read More…This is the document for SIM7600G-H 4G-modem board.
Features of this board:
Same dimension as Raspberry Pi, easily stacked up with Raspberry Pi.
Support all functions provided by SIM7600G-H.
Powered by micro-USB cable or external 5.0V DC supply.
Push-push Nano-SIM socket.
Flip-open micro-SD socket.
3.5mm earphone socket and 2-pin speaker connector.
On-board micphone.
40-pin connector at same place with Raspberry Pi(Not mounted).
20-pin connector that exports major signals of SIM7600G-H.
SMA connectors for main/aux and GPS antenna.
Buttons for Reset and Power function.
2-pin connectors for boot mode, flight mode, and power up selection.
2 LEDs for power and net status indication.
Features of SIM7600G-H:
LTE Cat4 module, supports LTE-TDD/LTE-FDD/HSPA+/GSM/GPRS/EDGE etc.
Multi-constellation GNSS receiver.
Frequency bands:
LTE-TDD B34/B38/B39/B40/B41.
LTE-FDD B1/B2/B3/B4/B5/B7/B8/B12/B13/B18/B19/B20/B25/B26/B28/B66.
UMTS/HSPA+ B1/B2/B4/B5/B6/B8/B19.
GSM/GPRS/EDGE 850/900/1800/1900MHz.
LTE Cat4: uplink up to 50Mbps, downlink up to 150Mbps.
HSPA+: uplink upto 5.76Mbps, downlink up to 42Mbps.
UMTS: uplink/downlink upto 384Kbps.
EDGE: uplink/downlink upto 236.8Kbps.
GPRS: uplink/downlink upto 85.6Kbps.
Control via AT commands.
USB drivers for Windows 7/8/10, Linux.
TCP/IP/IPv4/IPv6/Multi-PDP/FTP/FTPS/HTTP/HTTPS/DNS.
RNDIS/NDIS/ECM.
DTMF/Audio Playing.
USB audio and VoLTE.
Interface: USB 2.0, UART, USIM, PCM, MMC/SD, ADC, I2C. Antenna.
Certifications on going: CE/RCM/FCC/IC, PTCRB/GCF, AT&T/Verizon, RoHS/REACH.

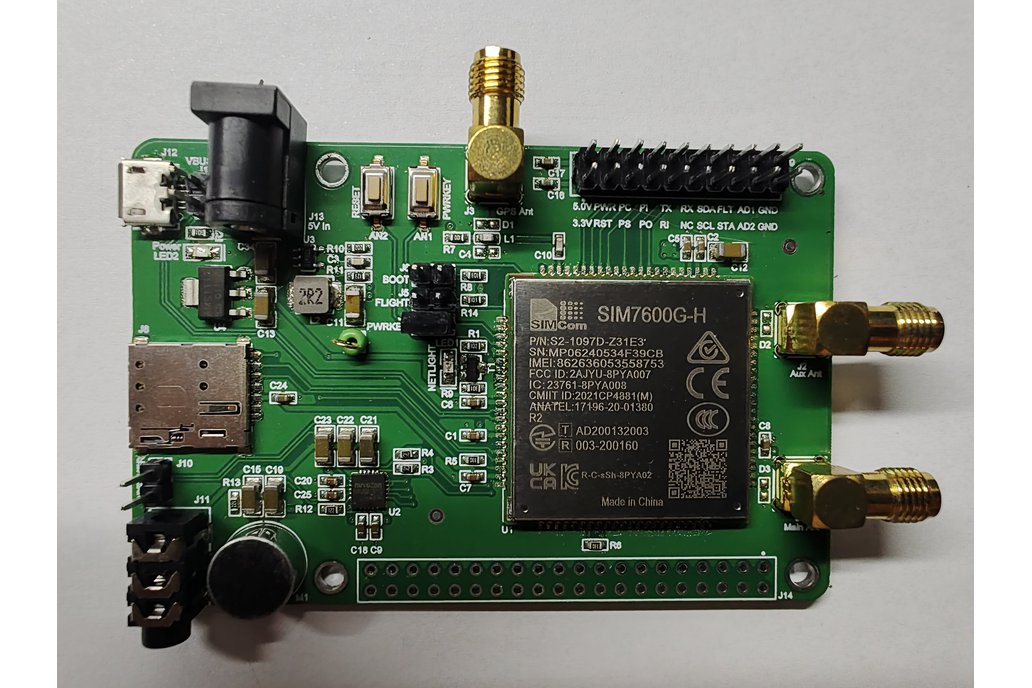

The following figure show the resources on the board.
| Number | Reference | Description |
|---|---|---|
| 1 | J12 | MicroUSB connector. |
| 2 | LED2 | Power LED. |
| 3 | J5 | Connect this jumper to enable flight mode. |
| 4 | J4 | Connect this jumper to enable power. |
| 5 | J8 | NanoSIM card socket. |
| 6 | J10 | Speaker connector. |
| 7 | J11 | 3.5mm earphone connector. |
| 8 | M1 | Micphone. |
| 9 | LED1 | Net status LED. |
| 10 | J14 | 40-pin raspberry Pi connector, NO connection with other part on this board, just for stacking. |
| 11 | J7 | MicroSD card socket. |
| 12 | U1 | SIM7600 module. |
| 13 | J1 | Main antenna. |
| 14 | J2 | Aux. antenna. |
| 15 | J9 | 20-pin connector, refer to the next section for its pin assignment. |
| 16 | J3 | GPS antenna. |
| 17 | AN1 | Power button if J4 is not connect. |
| 18 | AN2 | Reset button. |
| 19 | J13 | 5V DC power supply connector. |
| 20 | J15 | Connect this jumper to supply power from MicroUSB; DO NOT connect it while using J13 to supply power. |
Most of important signals are exported by 20-pin connector J9, the following table shows its assignment.
| Number | SIM7600G-H Pin | Description |
|---|---|---|
| 1 | 3.3V | |
| 2 | 5.0V | |
| 3 | 4 | RESET |
| 4 | 3 | PWRKEY |
| 5 | 75 | PCM_SYNC |
| 6 | 76 | PCM_CLK |
| 7 | 73 | PCM_OUT |
| 8 | 74 | PCM_IN |
| 9 | 69 | UART1_RI |
| 10 | 71 | UART1_TXD |
| 11 | Not connect | |
| 12 | 68 | UART1_RXD |
| 13 | 55 | I2C_SCL |
| 14 | 56 | I2C_SDA |
| 15 | 49 | STATUS |
| 16 | 54 | FLIGHTMODE |
| 17 | 46 | ADC2 |
| 18 | 47 | ADC1 |
| 19 | GND | |
| 20 | GND |
Delivery includes:
1 main board.
2 LTE antenna.
1 GNSS antenna.
1 MicroUSB cable.
4 jumpers.
