Gain: 20dB typ|Min gain: 16dB|Po1dB: 18dBm|NF: 2dB|RF Connector: SMA|Power supply: 5V USB port/ 7-15V Power connector
Designed by DEEPACE in China
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More
Frequence range: 380MHz-6000MHz (240MHz-380MHz is usable, but input SWR will be a little high) Gain: 20dB typ Min gain: 16dB Po1dB: 18dBm NF: 2dB RF Connector: SMA Power supply: 5V USB port/ 7-15V Po…
Read More…Frequence range: 380MHz-6000MHz (240MHz-380MHz is usable, but input SWR will be a little high)
Gain: 20dB typ
Min gain: 16dB
Po1dB: 18dBm
NF: 2dB
RF Connector: SMA
Power supply: 5V USB port/ 7-15V Power connector
(New model size will change, Hole position is same)
No country selected, please select your country to see shipping options.
No rates are available for shipping to .

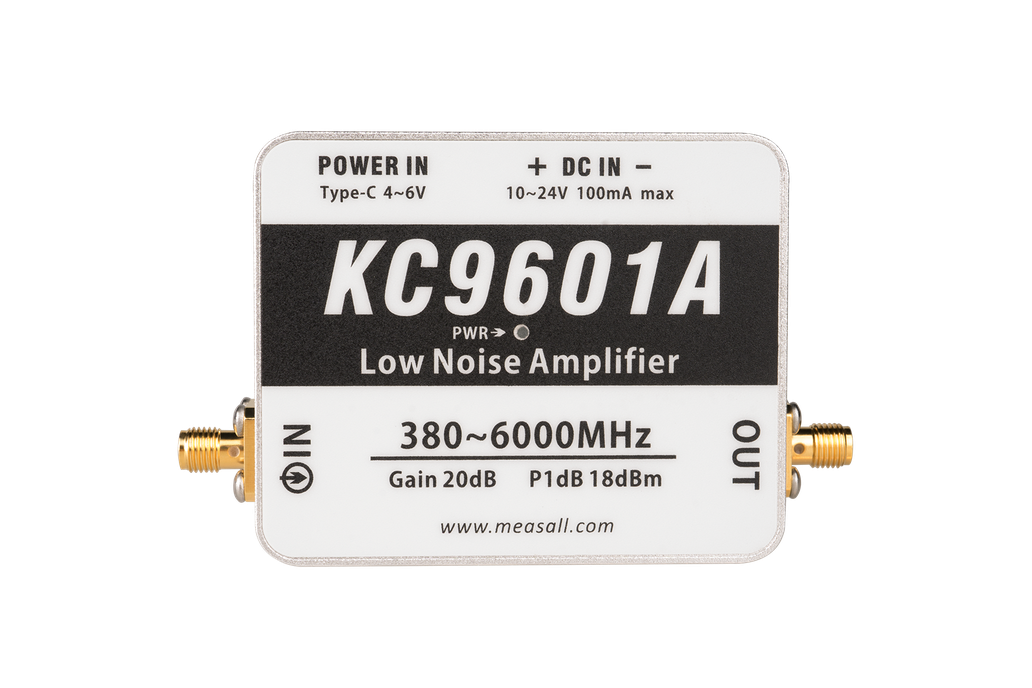

Enter your email address if you'd like to be notified when MEASALL KC9601A 6GHz 20dB LNA can be shipped to you:
