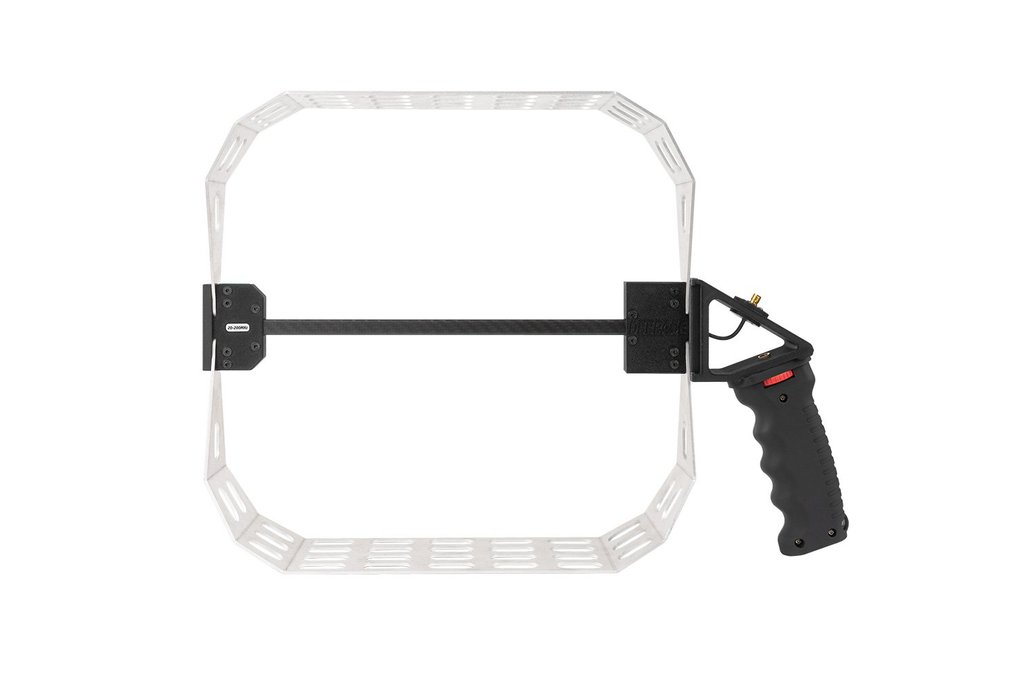

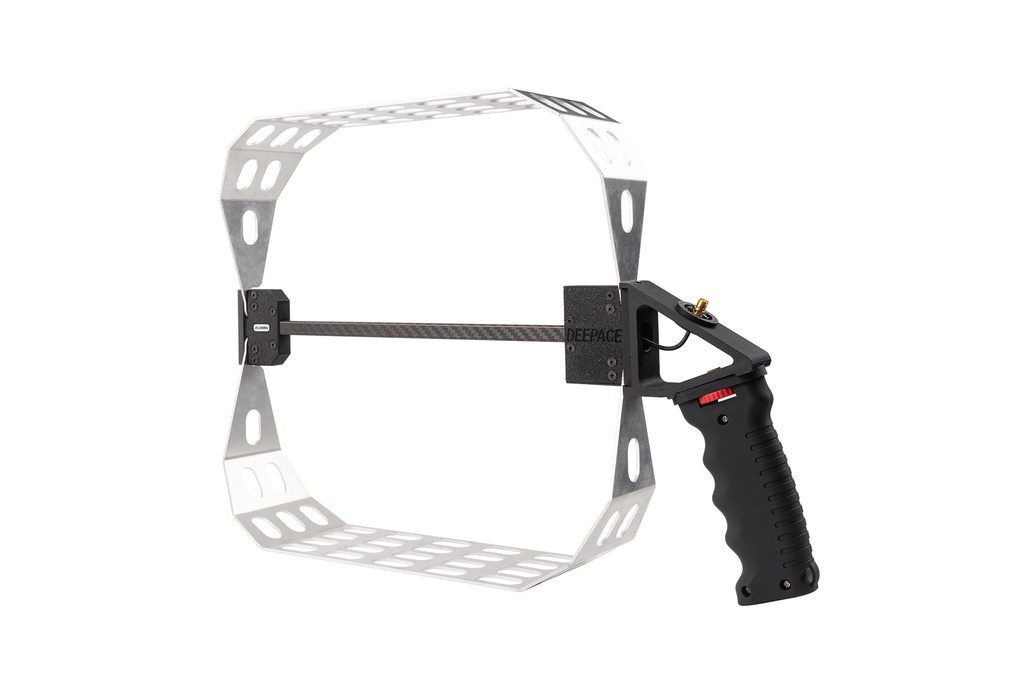

The R200 is a lightweight, cost-effective, and user-friendly VHF direction finding antenna designed to operate within the frequency range of 20MHz to 200MHz

Product Highlights:

Accurate radiation directionality: Determines direction by pointing towards the maximum signal amplitude.

High bandwidth with excellent consistency.

Composite material design for ultra-lightweight construction.

Passive antenna design to minimize signal blockage.

Product Specifications:

Frequency Range: 20MHz-200MHz

Polarization: Linear (Vertical)

Input Impedance: 50Ω

Voltage Standing Wave Ratio (VSWR): <2.5

Return Loss: 10dB typical

Front-to-Back Ratio: 10dB typical

Dimensions: 410 × 300 × 95 mm (including handle)

Weight: 410g

Connector: SMA

Package including: R200 Antenna1 SMA-SMA Cable1
