Touch screen thermal imager, based on Raspberry Pi rp2040 and Heiman htpa32*32 thermal imaging sensor
Sold By Denjhang's Retro Hardware
Buy with confidence.
Our Tindie Guarantee protects your purchase from fraud. Learn More

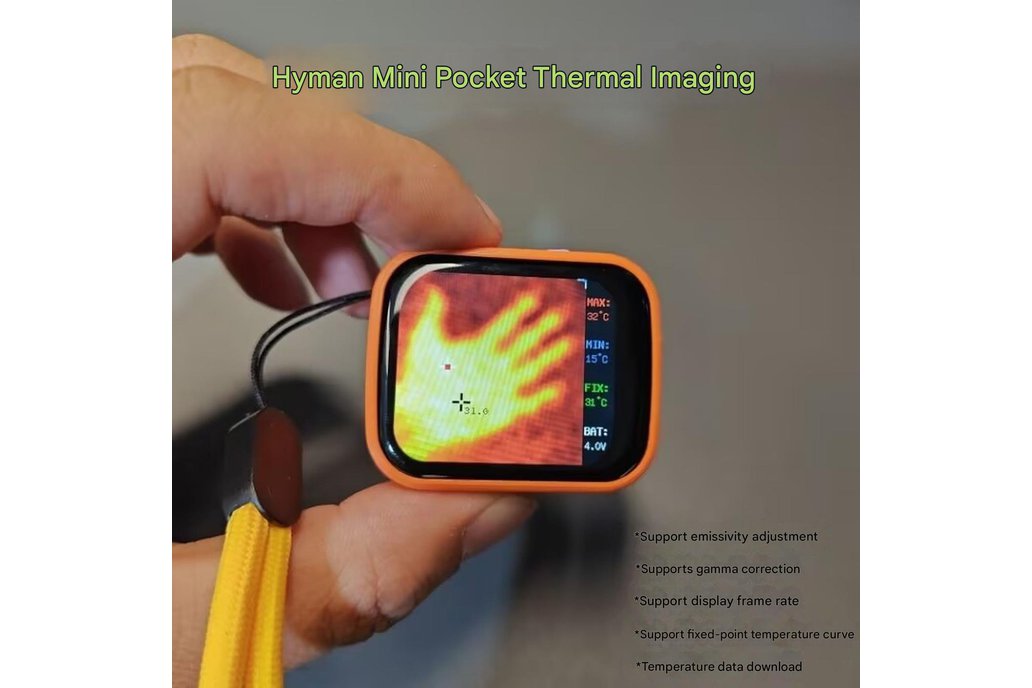

What is it? Mini pocket thermal imaging night vision device, floor heating temperature and leak detector, infrared anti-peeping, screen projection for mobile phones Can be used for hotel privacy insp…
Read More…Mini pocket thermal imaging night vision device, floor heating temperature and leak detector, infrared anti-peeping, screen projection for mobile phones
Can be used for hotel privacy inspection, equipment temperature detection, plumbing inspection, power maintenance, indoor cat and dog search.
The software is updated stably for a long time, and any suggestions will be considered for adoption! Screen resolution: 320240 touch screen
Resolution: 3232 (resolution 240*240 after difference)
Battery: 600ma (can work continuously for 3.5 hours, charging for 1.5 hours)
Temperature measurement range: -20~1000℃
Temperature measurement accuracy: ±3 degrees
Frame rate: 7Hz
Pseudo-color mode: 5 types
Interface: Type-C
Weight: 20g
Open source author Umeko Studio member! Provide excellent technical support
Probe model: Heiman HTPA32x32
Original resolution: 32x32
Resolution after algorithm optimization: 240x240
High temperature measurement accuracy and high resolution
High temperature tin patch, high welding quality!
A good choice for travel and hotel security inspections! Protect personal privacy
Provide host computer software to easily record temperature measurement curves
Colorful shell, excellent texture
2.5D glass on the front, high value, beautiful but not like a powerful one
This project is completely open source! Free secondary development, code routines and materials are provided! Built on the high-performance arm chip of Raspberry Pi.
Included functions:
Bilinear interpolation, mosaic removal, smooth picture
Based on DMA and shift interpolation optimization algorithm, it provides high refresh rate, smooth picture, and beats the thermal imaging instruments of the same price on sale
Provide host computer program, which can synchronize thermal imaging to the computer via wire
Lithium battery rechargeable design, convenient for outdoor use
Small and exquisite, fashionable single product
No need to connect to mobile phone, no need to connect to other things, no need to debug, no need to initialize! No need to use anything, just turn on the machine and use it, it's that simple!
Supports emissivity adjustment for more accurate object temperature measurement. Supports gamma correction, which can magnify the details of low or high temperature areas. Supports display frame rate, with an average frame rate of up to 7.0FPS. Supports fixed-point temperature curve display and temperature data download for easy experimental observation. Supports manual temperature calibration by setting slope and intercept, and supports automatic calibration of sensor errors. The screen supports left and right mirroring, top and bottom mirroring, and 360° rotation, which is convenient for installation or use at various angles. Supports automatic setting of temperature measurement range or manual adjustment of temperature measurement range. Ultra-small product size
