OPL3USB - another retro wave OPL3

Name: OPL3USB - another retro wave OPL3
SKU: 32492
Price: 99.00 USD
Availability: InStock

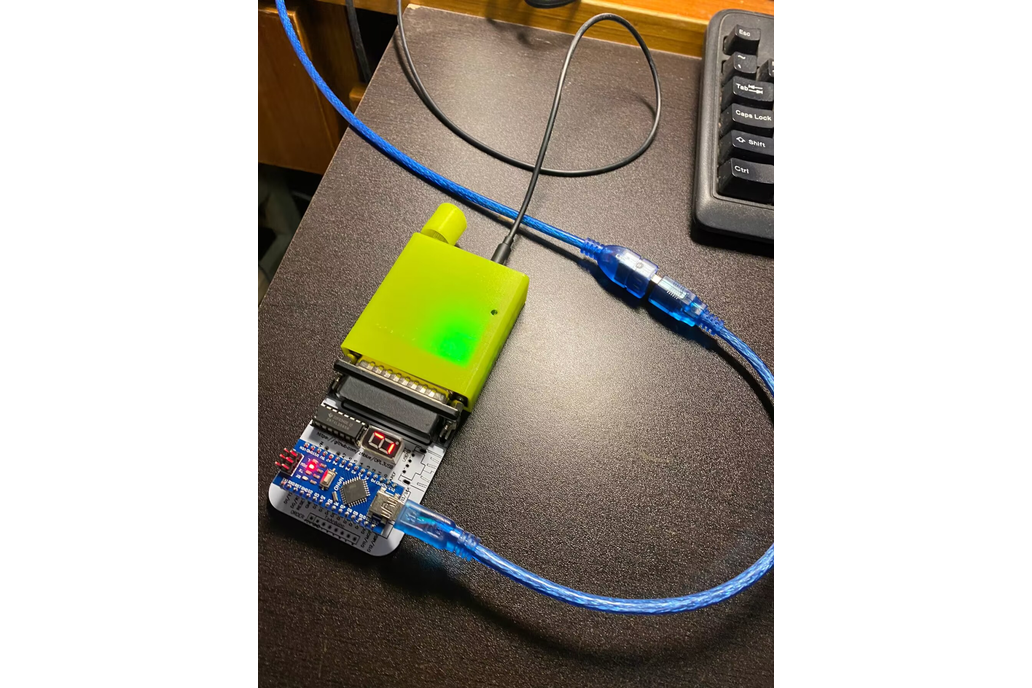

OPL3USB is a board plug into usb works as a serial port (Arduino) and use a OPL3LPT (modified) as an OPL3 sound card for Dosbox-X.

Designed by Denjhang's Retro Hardware in China







Buy with confidence.

Our Tindie Guarantee protects your purchase from fraud. Learn More

OPL3USB is a board plug into usb works as a serial port (Arduino) and use a OPL3LPT (modified) as an OPL3 sound card for Dosbox-X.

What is it? OPL3USB is based on: https://github.com/zhblue/y262lpt-v0.3b which is a clone of https://www.serdashop.com/OPL3LPT OPL3 Duo! Board https://github.com/DhrBaksteen/ArduinoOPL2 OPL3USB is a …

What is it?

OPL3USB is based on:

https://github.com/zhblue/y262lpt-v0.3b which is a clone of https://www.serdashop.com/OPL3LPT OPL3 Duo! Board https://github.com/DhrBaksteen/ArduinoOPL2 OPL3USB is a board plug into usb works as a serial port (Arduino) and use a OPL3LPT (modified) as an OPL3 sound card for Dosbox-X.

This project can be a low cost replacement to SudoMaker's RetroWave if you already have an Arduino-nano or Arduino-UNO.

Why did you make it?

modified OPL3LPT means 3 lines added :

DB25-13--------VCC---------5V ( if your opl3lpt makes noise , use the original power line instead ) DB25-14--------IC----------YMF262-P3/YM3812-P3 DB25-15--------RD----------YMF262-P7/YM3812-P6 the clone verion above has already include these modifications.
