What is it?

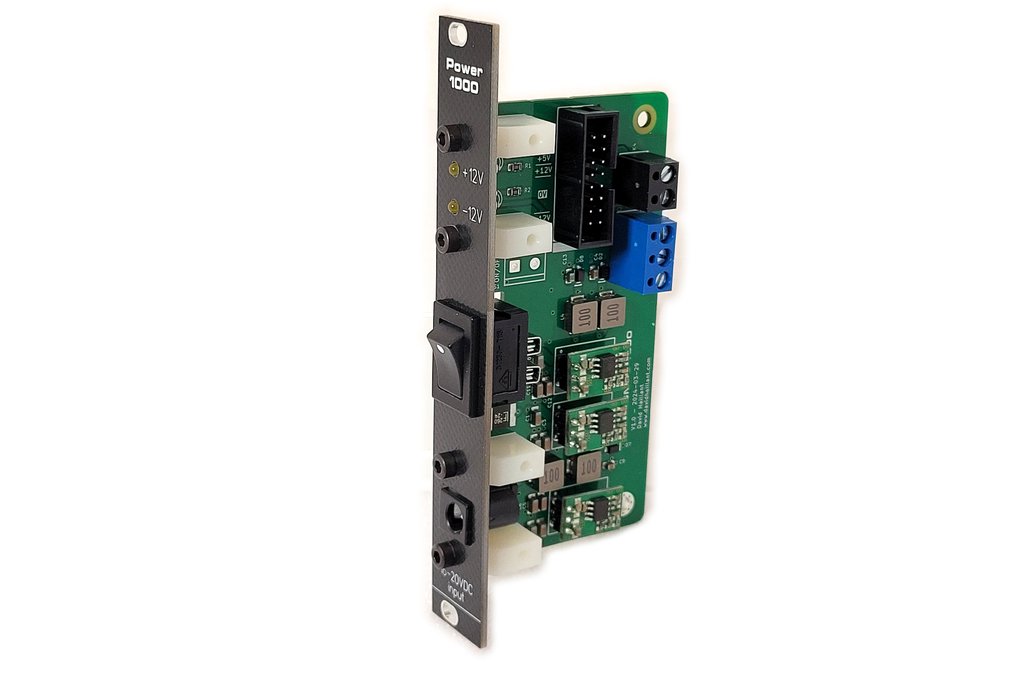

This is a Powerful and Compact Switched Mode Power Supply for Eurorack Synths.

• It's powerful: it can deliver 1 Amp on +12V.
• It's small: only 4HP Wide and depth is 50mm (add some mm for wiring on the back).
• It's also lightweight, there's no cumbersome transformer. Perfect for your small skiff.
• It's cool: almost no heat dissipation.

How to use?

Place your Power Module in any 3U row, power it with a generic DC Power brick (16 to 20 Volts, 2 Amps, laptop style). The output is located on 2 Screw Terminal Blocks. They allow easy connection to any Bus Board. Connect each corresponding rail ( +12, +5, 0 and -12 Volts) to your bus boards.

What makes it special?

High quality power supply The Power Module uses three efficient MeanWell DC-DC Switched Mode Converters. They ensure low noise and high power without heat dissipation. They support a relatively wide range input voltage from 16 up to 20 volts. Any spare laptop power supply with a 2.1mm DC jack connector, centre positive, will fit.

Security The input is protected against reverse polarity and surge voltage. A resettable fuse will protect against overloads: the PSU will be operational again without any intervention after the fault has been removed.

Noise filtering Each rail has a dedicated low-pass filter to remove remaining switching noise.

Specs

Output: - 1A at +12V - 300mA at -12V - 1A at +5V

Two Screw Terminal connectors for easy and versatile wiring. Use these for connecting your buses. One 16-pin Eurorack connector, preferably for single, low power usage.

Input: +16 to +20VDC at 2A

Input is 5.5mm/2.1mm, centre positive, barrel connector.
