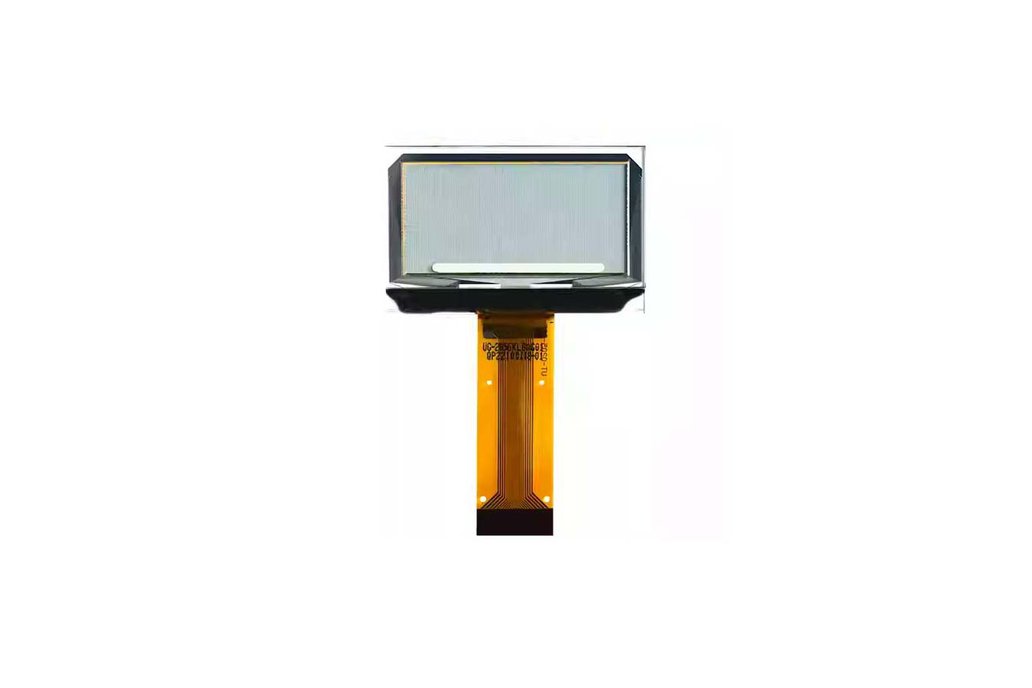

1.51 inch Transparent OLED Display Module 128×64 Resolution SPI or I2C Interfaces Compatible with Raspberry Pi 4B/3B+/3A+ Embedded Independent Driver Chip SPI/I2C Interfaces Light Blue Color Display

Overview of 1.51 inch Transparent OLED Display:

this 1.51 inch Transparent OLED with 128×64 dots Resolution, supporting SPI/I2C Interfaces, light blue color display,Embedded independent driver chip;the OLED transparent module is full viewing angle , better compatibility and fast data rateand,it not only can adopts 4-wire SPI and I2C interface, but also supports controller boards like Raspberry Pi/STM32 etc.

Parameter of 1.51 inch Transparent OLED Display:

• Display Mode : Passive Matrix
• Display Color : Monochrome (Light Blue)
• Drive Duty : 1/56 Duty
• Display Size:1.5 inch
• Number of Pixels : 128x56
• DriverlC:SSD1309
• Interface:8-bit 68xX/80XX Parallel,4-wire SPl,I2C
• Module Size : 42.04x63.22x1.25 (mm)
• Panel Size : 42.04x27.22 x1.25 (mm)
• Active Area : 35.05x15.32 (mm)
• Pixel Pitch : 0.274 x 0.274 (mm)
• Pixel Size : 0.254 x0.254 (mm)
• Operating Temperature:-40~70 °C
• Storage Temperature：-40~85 °C
• Weight : TBD (g) ± 10%

Features of 1.51 inch Transparent OLED Display:

• 1.51 inch Transparent OLED.
• Embedded Independent Driver Chip,
• Using SPI/I2C Interfaces.
• Comes with examples for Raspberry Pi, Arduino, STM32, etc.
• SPI And I2C Control Interface Switching.S
• upports Controller Boards Like Raspberry Pi/Arduino/STM32

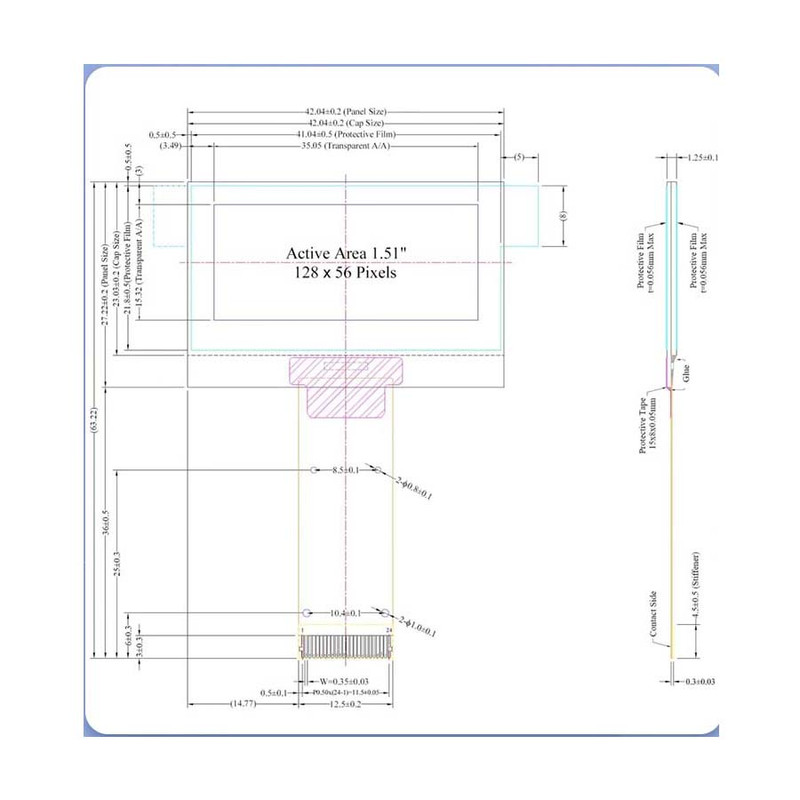

Mechanical Drawing of 1.51 inch Transparent OLED Display:

Application of 1.51 inch Transparent OLED Display:

• Smart phones
• intelligent on-board camera
• real-time display pictures
• battery management equipment
• IPC controller
• MP3/MP4 player
• mobile phone function
• portable medical equipment, game, etc.

Kit Content: 1.51 inch transparent OLED Display with 128×64
