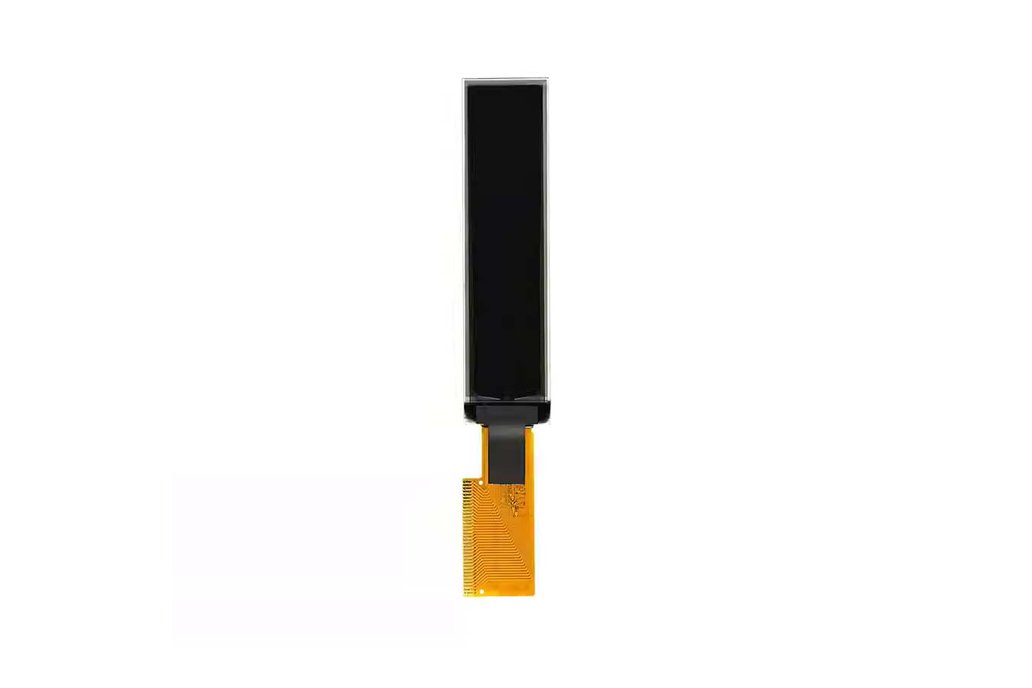

mono OLED Character display 2.26 inch 1206 12x6 Character OLED Display KS0066(SH1111) driver ic 35P

Overview of 2.26" 1206 oled character display module 2.26 inch monochrome character oled display module which is made with 16x2 characters. This mono 16x2 character oled screen sizes is 2.26 inch in diagonal. This 2.26 inch oled display is passive matrix micro OLED display. The controller IC is US2066, 2.26"oled screen supports SPI/Parallel/I2C interface, 3.3V power supply. The 2.26 oled is a COG structure OLED panel, oled could be emitting light by itself, no need for backlight, So the power required to run the OLED is low, and is why the display has such high contrast, extremely wide viewing angle and operating temperature. OLED 16x2 module can be operating at temperatures from -40℃ to +80℃, storage temperatures is from -40℃ to +85℃.

Parameter of 2.26" 1206 oled character display module:

• Display Mode : Passive Matrix
• Display Color : Monochrome(white/Yellow)
• Drive Duty : 1/16 Duty
• Display Size:2.26 inch
• DriverlC:KS0066(SH1111)
• Pin No:35P
• Number of Characters: 16 Characters ( 5 × 8 ) × 2 Lines
• Panel Size: 66.10 × 16.70 × 2.00 (mm)
• Active Area: 56.22 × 11.52 (mm)
• Character Pitch: 3.55 × 5.95 (mm)
• Character Size: 2.97 × 5.57 (mm)
• Pixel Pitch: 0.60 × 0.70 (mm)
• Pixel Size: 0.57 × 0.67 (mm)
• Interface:4-/8-bit 68XX/80XX Parallel, SPI, I2C
• Operating Temperature:-40~850 °C
• Storage Temperature：-40~90 °C
• Part No:ZOJK226-1602ASWCG01
• Weight: 4.98 (g)

Features of 2.26" 1206 oled character display module:

• 2.26 inch monochrome character OLED.
• Embedded Independent Driver Chip,
• Using SPI/I2C Interfaces.
• emitting light by itself without backlight
• Low power consumption

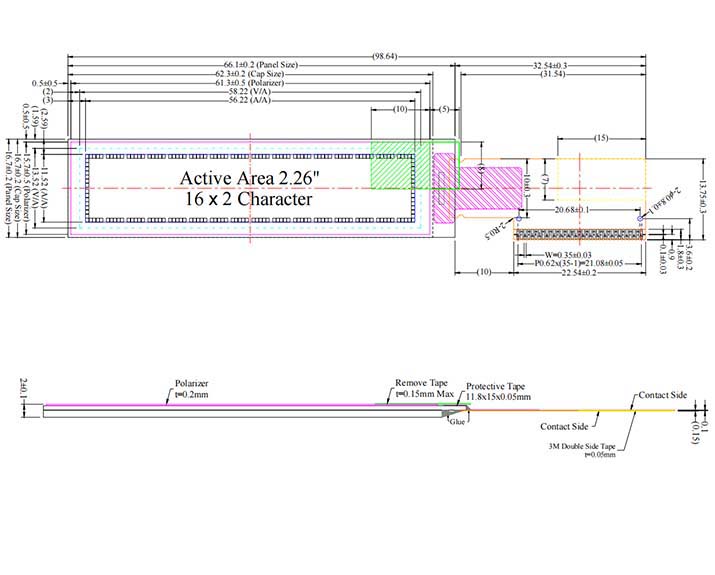

Mechanical Drawing of 2.26" 1206 oled character display module

Application of 2.26" 1206 oled character display module:

• Smart phones
• smart watch
• portable health device
• intelligent on-board camera
• real-time display pictures
• battery management equipment
• IPC controller
• MP3/MP4 player
• mobile phone function
• portable medical equipment, game, etc.

Content:1x 2.26 inch 12x6 monochrome character oled display
