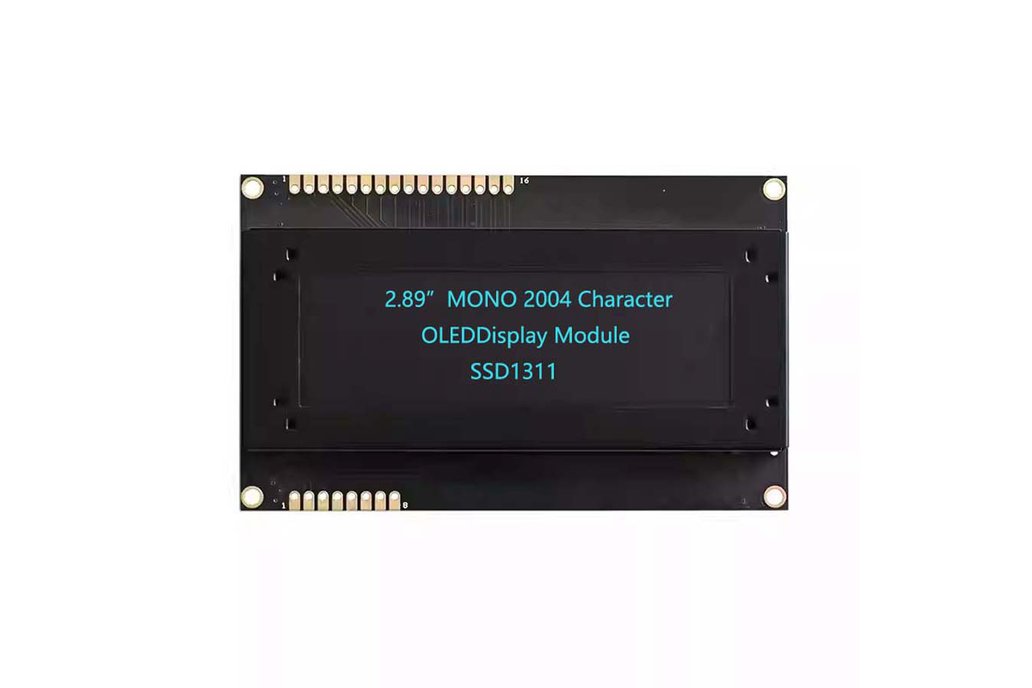

2.89” Character OLED Display 20X4 spi/i2c OLED Character display module US2066

Overview of 2.89" OLED Character Module

2004 OLED 20x4 character is a monochrome character oled display with PCB, 20x4 characters oled display.

The 2.89 inch oled module, is a character passive matrix oled display, with FPC connection, it is a COG structure OLED display, it have 20x4 characters, white/blue color available, wide viewing angle, wide temperature, high brightness, high contrast, fast response time and with PCB.

since it is OLED display module, oled could be emitting light by itself, no need for backlight, so oled display module would be thinner than tft lcd module,and it isn't like tft lcd, oled display have no viewing angle limited, OLED display is wide/full viewing angle, oled display have excellent display performance in all viewing angle.2004 characters OLED display module with PCB could be displayed in wide temperature, its working temperature could be reached to -40 degree, and 80 degree.

2.89 inch 20x4 character OLED display module with PCB is the best display solution in the outdoor display, such as sunlight environment, and also for industrial or medical application that need the wide viewing angle and high brightness display.

Parameter of 2.89" OLED Character Module 2004:

• Display Mode : Passive Matrix
• Display Color : Monochrome(white/Blue)
• Drive Duty : 1/32 Duty
• Display Size: 2.89 inch
• DriverlC:US2066(SSD1311)
• Pin No:16P
• Number of Characters: 20 Characters ( 5 × 8 ) × 4 Lines
• Module Size : 98.00 × 60.00 × Max. 13.60 (mm)
• Panel Size : 84.50 × 27.50 × 2.00 (mm) including “ Anti-Glare polarizer ”
• Active Area : 56.22 × 11.52 (mm)
• Character Pitch: 3.55 × 5.35 (mm)
• Character Size: 2.97 × 4.77 (mm)
• Pixel Pitch: 0.60 × 0.60 (mm)
• Pixel Size: 0.57 × 0.57 (mm)
• Interface:8-bit 68XX Parallel SPI,II2
• Operating Temperature:-40~850 °C
• Storage Temperature：-40~90 °C
• Part No:ZOJK1602I04WCG11
• Weight: 47.10 (g) ± 10%

Features of 2.89" OLED Character Module 2004:

• 2.89 inch monochrome character OLED Moule.
• Embedded Independent Driver Chip,
• Using 8-bit 68XX Parallel Interfaces.
• emitting light by itself without backlight
• Low power consumption

Mechanical Drawing:

Pin Definition details:

Application of 2.89" OLED Character Module 2004:

• Smart phones
• smart watch
• portable health device
• intelligent on-board camera
• real-time display pictures
• battery management equipment
• IPC controller
• MP3/MP4 player
• mobile phone function
• portable medical equipment, game, etc.

Packing Content:1x 2.89 inch 2004 monochrome character oled display in Blue
