2 93 inch mono character oled display module SPI/I2C US2066(SSD1311) for Arduino,Raspberry Pi

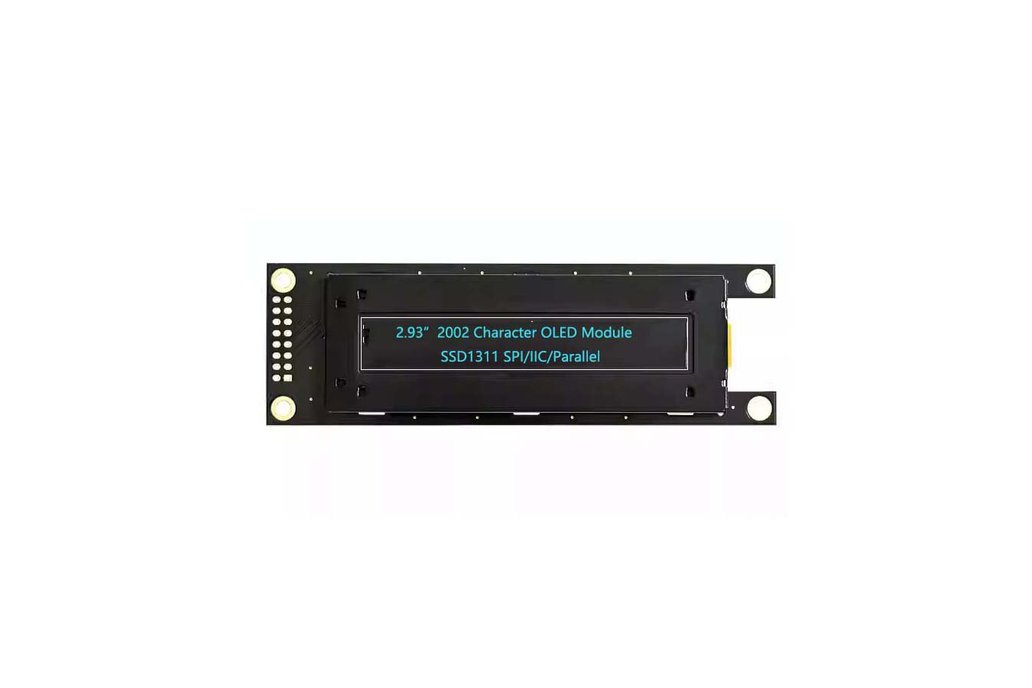

Overview of 2.93" character oled display module 2002

2.93 inch OLED 20x2 character is a monochrome character oled display with PCB, 20x2 characters oled glass display.

The 2.93 inch oled module, is a character passive matrix oled display, with FPC connection, it is a COG structure OLED display, it is with 20x2 characters and white/ blue/green/red color options available, wide viewing angle, wide temperature range in oprerating and storaging, featuring high brightness, high contrast, fast response time and with PCB.

As it is OLED display module and can emitting light by itself without backlight neededd, this oled display module would be thinner than tft lcd module, unlike the tft lcd, oled display have no viewing angle limited, OLED display is wide/full viewing angle, oled display have excellent display performance in all viewing angle.

this 20x2 characters OLED display module with PCB could be displayed in wide temperature and its working temperature could be reached to -40 ~ 80 degree.

2.93 inch 20x2 character OLED display module with PCB is the best display solution in the outdoor display, such as sunlight environment, and also for industrial or medical application that need the wide viewing angle and high brightness display.

Parameter of 2.93" character oled display module 2002:

• Display Mode : Passive Matrix
• Display Color : Monochrome(white/Blue/green/red)
• Drive Duty : 1/16 Duty
• Display Size: 2.93 inch
• DriverlC:US2066(SSD1311)
• Pin No:16P
• Number of Characters: 20 Characters ( 5 × 8 ) × 2 Lines
• Module Size : 116.0 × 37.00 × Max. 9.70 (mm)
• Panel Size : 84.50 × 19.28 × 2.00 (mm) including “Anti-Glare Polarizer
• Active Area : 73.52 × 11.52 (mm)
• Character Pitch: 3.70 × 5.95 (mm)
• Character Size: 3.22 × 5.57 (mm)
• Pixel Pitch: 0.65 × 0.70 (mm)
• Pixel Size: 0.62 × 0.67 (mm)
• Interface:4-/8-bit 68XX/80XX Parallel, SPI, I2C Interfaces
• Operating Temperature:-40~850 °C
• Storage Temperature：-40~90 °C
• Part No:ZOJK293-2002ASWAS10
• Weight: 36.40 (g) ± 10%

Features of 2.93" character oled display module 2002:

• 2.93 inch monochrome character OLED Moule.
• Embedded Independent Driver Chip,
• Using 4-/8-bit 68XX/80XX Parallel, SPI, I2C Interfaces.
• emitting light by itself without backlight
• Low power consumption

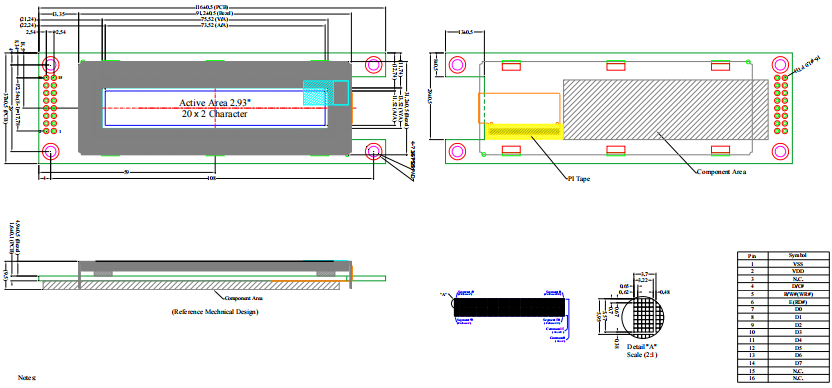

Mechanical Drawing

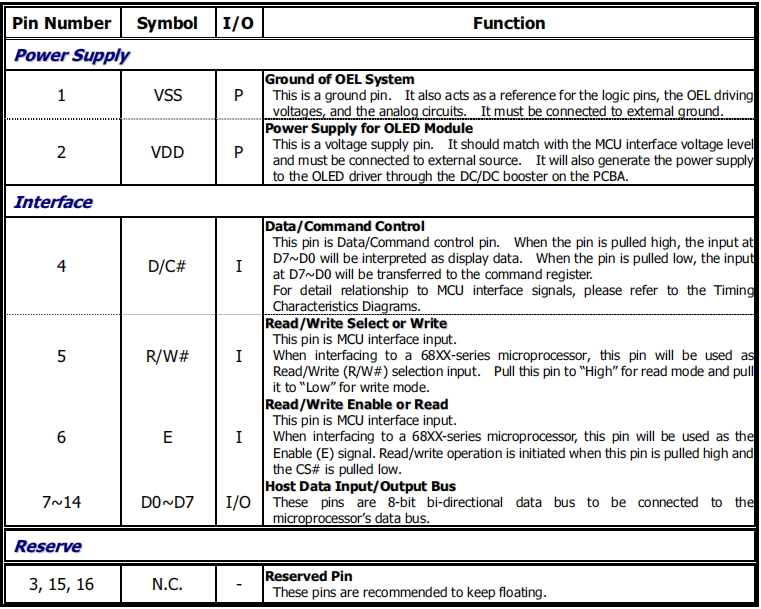

Pin Definitions details:

Application of 2.93" character oled display module 2002:

• Smart phones
• smart watch
• portable health device
• intelligent on-board camera
• real-time display pictures
• battery management equipment
• IPC controller
• MP3/MP4 player
• mobile phone function
• portable medical equipment, game, etc.

Packing Content:1x 2.89 inch 2004 monochrome character oled display in Blue
