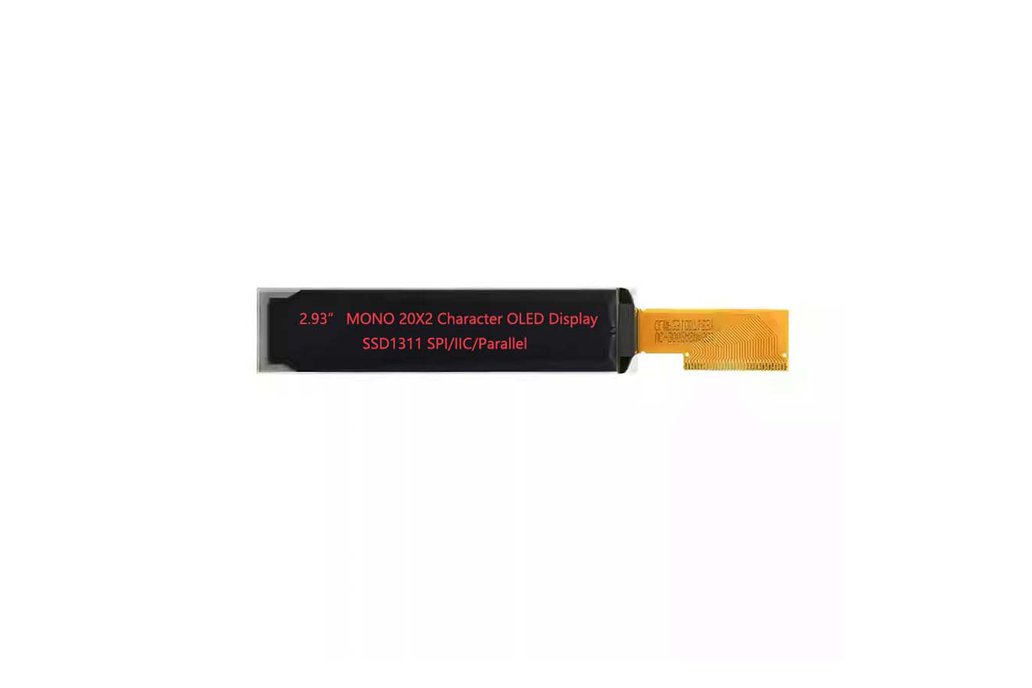

20x2 character display 2.93 inch 2002 20x2 OLED Character display module SPI I2C US2066(SSD1311) IN RED

OVERVIEW of 2.93" OLED Character display module 20x2

2.93 inch monochrome character oled display module which is made with 20x2 characters. This mono 20x2 character oled screen sizes is 2.93 inch in diagonal. This 2.93 inch oled display is passive matrix micro OLED display with mono white/blue/red 3 colors options. The driver IC is US2066/SSD1311, 2.93 oled screen communicates via 4-/8-bit 68XX/80XX Parallel, SPI, I2C interface, using 3.3V power supply. The 20x2 oled character screen is a COG structure OLED panel, as the oled cmakes its own light without backlight is required, So the power required to run the OLED is low, and is why the display has such high contrast, extremely wide viewing angle and operating temperature. OLED 20x2 module can be operating at temperatures from -40℃ to +80℃, storage temperatures is from -40℃ to +85℃. The oled 20x2 character 2.93" is commonly used for smart watch, MP3, function cellphone, portable health device and many others application.

Parameter of 2.93" OLED Character display module 20x2:

• Display Mode : Passive Matrix
• Display Color : Monochrome(white/blue/RED)
• Drive Duty : 1/16 Duty
• Display Size:2.93 inch
• DriverlC:US2066(SSD1311)
• Pin No:33P
• Number of Characters: 20 Characters ( 5 × 8 ) × 2 Lines
• Panel Size: 84.50 × 19.28 × 2.00 (mm)
• Active Area: 73.52 × 11.52 (mm)
• Character Pitch: 3.70 × 5.95 (mm)
• Character Size: 3.22 × 5.57 (mm)
• Pixel Pitch: 0.65 × 0.70 (mm)
• Pixel Size: 0.62 × 0.67 (mm)
• Interface:4-/8-bit 68XX/80XX Parallel, SPI, I2C
• Operating Temperature:-40~850 °C
• Storage Temperature：-40~90 °C
• Part No:ZOJK293-2002ASWAG01
• Weight: 7.01 (g)

Features of 2.93" OLED Character display module 20x2:

• 2.93 inch monochrome character OLED.
• Embedded Independent Driver Chip,
• Using 4-/8-bit 68XX/80XX Parallel, SPI, I2C Interfaces.
• emitting light by itself without backlight
• Low power consumption

Mechanical Drawing

Application of 2.93" OLED Character display module 20x2:

• Smart phones
• smart watch
• portable health device
• intelligent on-board camera
• real-time display pictures
• battery management equipment
• IPC controller
• MP3/MP4 player
• mobile phone function
• portable medical equipment, game, etc.

Packing Content:1x 2.93 inch 2002 monochrome character 20x2 oled display in Red
