OLED Character 16x2 Display Module 2.26 INCH 1602 OLED Character display Module SPI/IIC KS0066(SH1111) DRIVER IC

Overview of 2.26 inch 1206 oled character display

OLED 16x2 character is a monochrome character oled display with PCB, 16x2 characters oled display.

The 2.26 inch oled module, is a character passive matrix oled display, with FPC connection, it is a COG structure OLED display, it have 16x2 characters, white/blue color available, wide viewing angle, wide temperature, high brightness, high contrast, fast response time and with PCB.

since it is OLED display module, oled could be emitting light by itself, no need for backlight, so oled display module would be thinner than tft lcd module,and it isn't like tft lcd, oled display have no viewing angle limited, OLED display is wide/full viewing angle, oled display have excellent display performance in all viewing angle.16x2 characters OLED display module with PCB could be displayed in wide temperature, its working temperature could be reached to -40 degree, and 80 degree.

2.26 inch 16x2 character OLED display module with PCB is the best display solution in the outdoor display, such as sunlight environment, and also for industrial or medical application that need the wide viewing angle and high brightness display.

Parameter of 2.26 inch 1206 oled character display :

• Display Mode : Passive Matrix
• Display Color : Monochrome(white/Yellow)
• Drive Duty : 1/16 Duty
• Display Size:2.26 inch
• DriverlC:KS0066(SH1111)
• Pin No:7P
• Number of Characters: 16 Characters ( 5 × 8 ) × 2 Lines
• Module Size : 98.64 × 16.70 × 2.00 (mm)
• Panel Size : 66.10 × 16.70 × 2.00 (mm) including “Anti-Glare” Polarizer
• Active Area : 56.22 × 11.52 (mm)
• Character Pitch: 3.55 × 5.95 (mm)
• Character Size: 2.97 × 5.57 (mm)
• Pixel Pitch: 0.60 × 0.70 (mm)
• Pixel Size: 0.57 × 0.67 (mm)
• Interface:4-/8-bit 68XX/80XX Parallel, SPI, I2C
• Operating Temperature:-40~850 °C
• Storage Temperature：-40~90 °C
• Part No:ZOJK1602I04WCG11
• Weight: 21.88 (g) ± 10%

Features of 2.26 inch 1206 oled character display:

• 2.26 inch monochrome character OLED Moule.
• Embedded Independent Driver Chip,
• Using SPI/I2C Interfaces.
• emitting light by itself without backlight
• Low power consumption

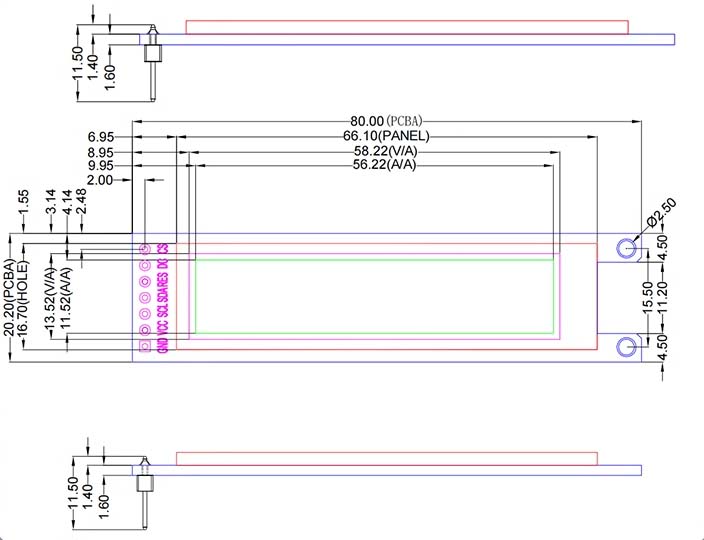

Mechanical Drawing OF 2.26 inch 1206 oled character display

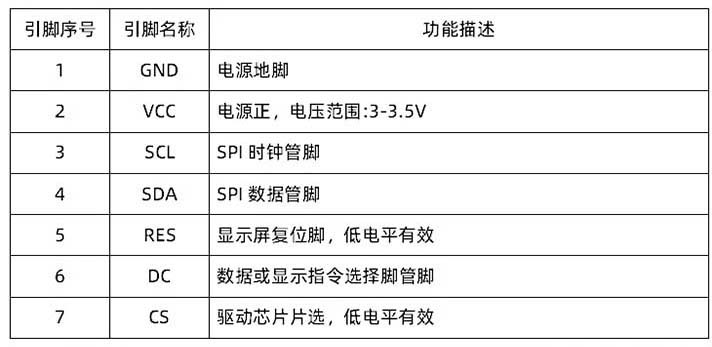

Pin Definitions details:

Application of 2.26 inch 1206 oled character display:

• Smart phones
• smart watch
• portable health device
• intelligent on-board camera
• real-time display pictures
• battery management equipment
• IPC controller
• MP3/MP4 player
• mobile phone function
• portable medical equipment, game, etc.

Packing Content:1x 2.26 inch 1206 monochrome character oled display mono white
