Product description:

• 5inch standard display, 800 × 480 resolution
• With resistive touch screen, support touch control
• support backlight control alone, the backlight can be turned off to save power
• supports standard HDMI interface input, compatible with and can be directly inserted with Raspberry Pi (3rd, 2nd, and 1st generation)
• can be used as general-purpose-use HDMI monitor, for example: connect with a computer HDMI as the sub-display (resolution need to be able to force output for 800 x480)
• used as a raspberry pie display that supports Raspbian, Ubuntu, kali, Kodi(no touch), win10 IOT(no touch)
• work as a PC monitor, support XP,win7, win8, win10 system(do not support touch)
• CE, RoHS certification

Product Parameters

• Size: 5.0(inch)
• Resolution: 800*480(dots)
• Touch: 4-wire resistive touch
• Product Size: 121.11*77.93(mm)
• Package Size: 15413551 (mm)
• Rough Weight(Package containing): 206(g)
• Power Dissipation: 0.34A*5V

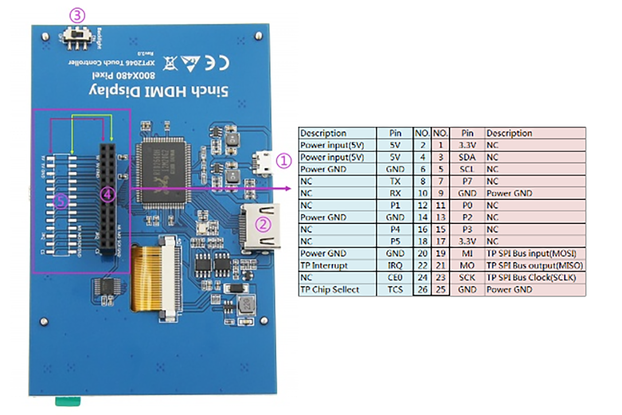

Hardware Description

• ① USB interface：Get 5V Power from USB, If ④-13*2 Pin Socket has been connected, that this USB interface can be No Connect
• ② HDMI interface：For HDMI transmission
• ③ Backlight Power switch：Controls the backlight turned on and off to save power
• ④ 13*2 Pin Socket：Get 5V Power from raspberry Pi to LCD, at the same time transfer touch signal back to raspberry Pi
• ⑤ Extended interface：extended The ④-13*2 Pin Socket signal Pin-to-Pin

How to use as PC monitor:

• Connect the computer HDMI output signal to the LCD HDMI interface by using the HDMI cable
• Connect the LCD's USB Touch interface (Either of the two MicroUSB) to the USB port of the device
• If there are several monitors, please unplug other monitor connectors first, and use LCD as the only monitor for testing.
