1.54 inch e-Paper Dispaly Module with 152x152 Pixels partial refresh E-ink module

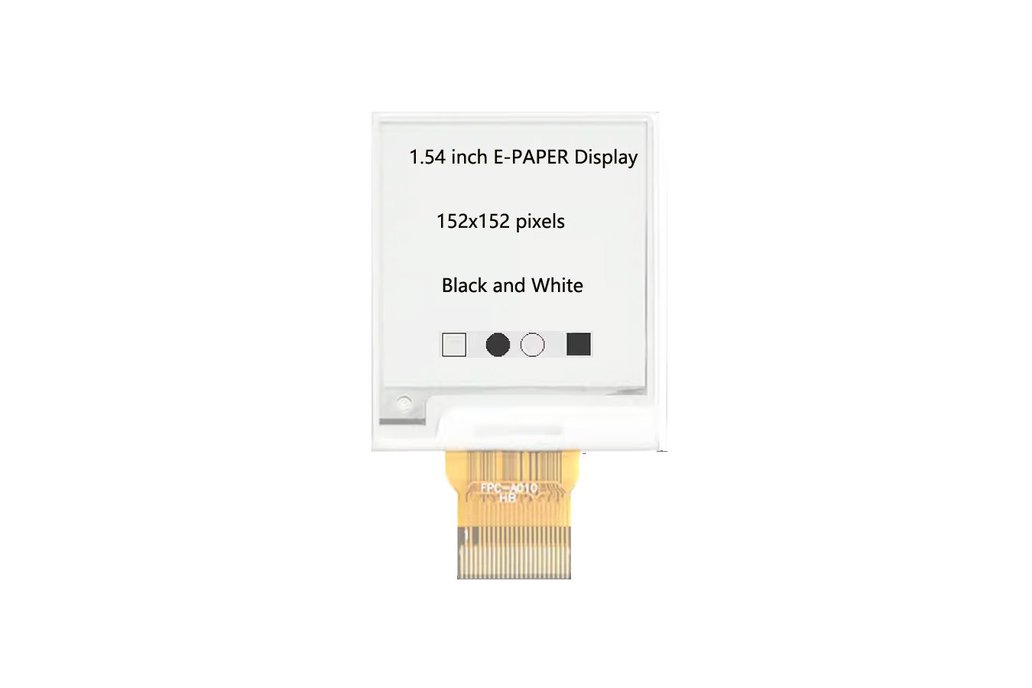

Preview of 1.54 inch epd display e-ink screen module:

this 1.54" E-ink display is an Active Matrix Electrophoretic Display (AM EPD), with interfaceand a reference system design. The display is capable to display images at 1-bit white, black full display capabilities. The 1.54 inch active area contains 152×152 pixels. The module is a TFT-array driving electrophoresis display, with integrated circuits including gate driver, source driver, MCU interface, timing controller, oscillator, DC-DC, SRAM, LUT, VCOM. Module canbe used in portable electronic devices, such as Electronic Shelf Label (ESL) System.

One fantastic aspect of the ePaper display is the fact they don't need any power to keep the image on the screen. Just like a Kindle, you can read whatever is on your screen in daylight without any reflection. It comes with SSD1680 controller,compact size (COG package),high contrast, sun readable,FPC connection,optional FPC connector.It supports 3/4-wire serial interface.

Parameter of 1.54 inch epd display e-ink screen module :

• Display Mode : Active Matrix Electroph oretic Display;EPD,B/W
• Display Color : (black/white)
• Display Size:1.54 inch
• DriverlC:SSD1680
• Pin No:24P
• Display Resolution: 152(H)×152(V) Pixel
• Panel Size: 31.8(H)×37.32(V) ×1.0 (D) (mm)
• Active Area: 27.512×27.512 (mm)
• Pixel Pitch: 0.181×0.181 (mm)
• Pixel Configuration: Square
• Operating Voltage:3.0V
• Interface:SPI
• Operating Temperature:0~50 °C
• Storage Temperature：-25~70 °C
• Part No:ZOJK152152-0154EAA
• Weight:2.3±0.5

Features of 1.54 inch epd display e-ink screen module:

• 152x152 pixels display
•  High contrast, High reflectance
•  Ultra wide viewing angle, Ultra low power consumption
•  Pure reflective mode
•  Bi-stable display
•  Commercial temperature range
•  Landscape, portrait modes
•  Hard-coat antiglare display surface
•  Ultra Low current deep sleep mode
•  On chip display RAM
•  Waveform stored in On-chip OTP or written by MCU
•  Serial peripheral interface available
•  On-chip oscillator
•  On-chip booster and regulator control for generating VCOM, Gate and source driving
• voltage .  -I2C signal master interface to read external temperature sensor
•  Built-in temperature sensorr

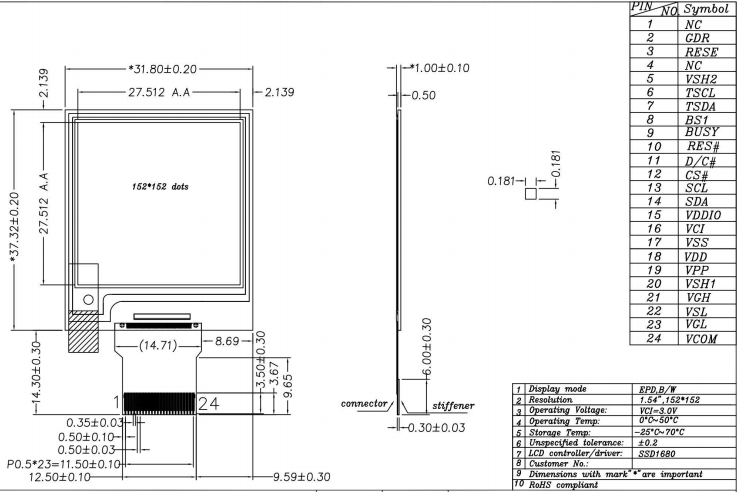

Mechanical Drawing

Application of 1.54 inch epd display e-ink screen module:

• Electronic Shelf Label System
• Electronic price tags
• Electronic conference board

Packing Content:1x 1.54 inch 152x152 eink display in black/white
